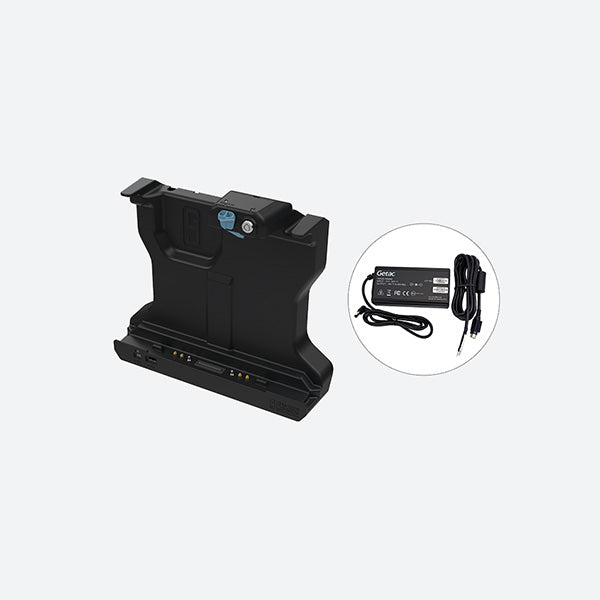

Gamber Johnson F120 Getac Tablet Dock with Lite Port Replication, Quad RF and 120W Bare Wire Power 7170-1225-14

Gamber Johnson Dock 7170-1225-14

Specifically built for the rugged Getac F120 tablet, the Gamber Johnson 7170-1225-14 vehicle dock can match the computer for durability and functionality. Featuring MIL-STD 810G testing certification, the 7170-1225-14 dock is able to withstand vibration, heat and cold extremes while protecting the F120 from damage and wear and tear. Featuring a locking latch mechanism, this keyed dock is a great theft deterrent protecting the expensive asset from loss. This Gamber Johnson dock features lite port replication and a 120W Bare Wire Power Adapter. This dock includes Quad RF pass through enabling a user to attach external antennas and boost the internal radio signals of the F120 (such as GPS, 5G or WiFi.)

7170-1225-14 Features

  • Compatible with the Getac F120 tablet
  • Getac certified electronics
  • One-hand docking and release for efficient use

  • Accommodates the tablet’s hard handle, high-capacity battery, smart card reader and slim hand strap accessories

  • Allows access to all tablet control buttons while the tablet is docked

  • Downward facing rear ports with integrated cable management
  • Floating docking connector ensures reliable pogo pin connection in rugged environments
  • Built-in stylus holder
  • Keyed lock for security
  • VESA 75 mounting pattern

    7170-1225-14 Specifications

    • Weight

      2.3 lbs / 1.04 kg

    • Height

      12.5 in / 31.75 cm

    • Width

      10.45 in / 26.54 cm

    • Depth

      2.88 in / 7.32 cm

      Warranty:

      • 3 Year Limited Warranty
      • Extended Warranty/Gamber Guard Options Available



      Model:

      • F120



      Power Supply:

      • Included



      Testing Specifications:

      • Vibration Tested: MIL-STD 810G Operational/Non-Operational
      • Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
      • Environmental: Thermal Shock; High/Low Temperature Operational & Storage
      • FCC, RoHS Certified
      • E-Mark
      • SAE Standard J1455 Crash Test



      Port Replicators:

      • (1) USB-A 2.0 (front)
      • (1) USB-C 2.0 (front)
      • (2) USB-A 3.2
      • (1) USB-C 3.2
      • (1) RJ45
      • (1) RS232 (5V powered on pin 9)
      • Power Input: 19 Vdc
      • QUAD SMA RF Pass-through



      Antenna Pass-through:

      • Quad Pass Through






    $703.00 USD
    $703.00 USD
    Shipping calculated at checkout.
