Gamber Johnson Dock 7170-1068-00

The Gamber Johnson dock 7170-1068-00 is designed for the Getac F110 and comes with a 75MM hole to stud adapter. This dock does not come with any RF pass through or power supply. Featuring full port replication, the 7170-1068-00 kit includes an adapter to allow the default VESA 75mm mounting pattern on the dock to marry smoothly with a number of forklift mounting applications. If you require a dock with pass through or different features, please contact a Rugged or Die sales member at 816-388-0035 for a free consultation on what mounting and docking equipment is right for you!

7170-1068-00 Features

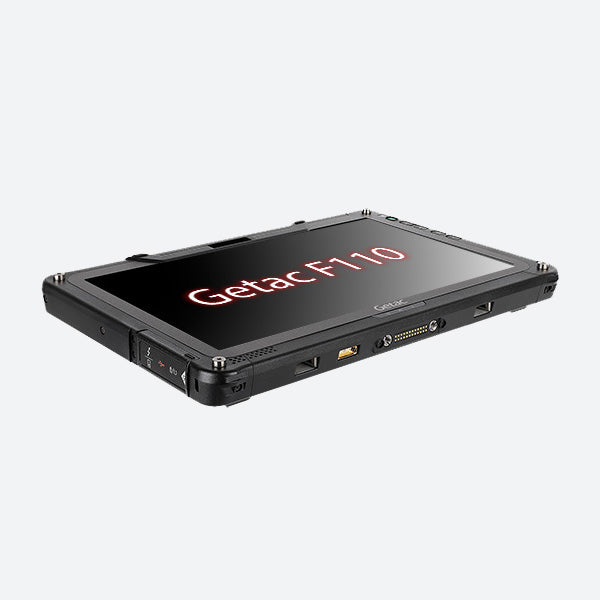

Compatible with the Getac F110 G7 and all previous versions of the F110 tablet
Docking station accommodates the tablet's mag strip reader and rotating hand strap
75MM HOLES TO STUDS ADAPTER PLATE (7160-1942) included for easy one person installation when adding peripherals to your material handling solution
Access to all tablet control buttons and ports while the tablet is docked
Downward-facing I/O ports; integrated cable strain relief and cable management system
Gamber-Johnson rugged construction and reliability
VESA 75mm mounting pattern

7170-1068-00 Specifications

Weight

5 lbs / 2.27 kg

Height

6 in / 15.24 cm

Width

14 in / 35.56 cm

Depth

14 in / 35.56 cm

Port Replicators:

Getac certified electronics
(1) Ethernet - RJ45
(3) USB 2.0 (500mA) - 4 pin
(1) USB 3.0 (900mA) - 9 pin
(1) VGA D-sub - 9 pin
(1) HDMI - 19 pin
Tri RF Pass-through (optional) - SMA
Power input - 19VDC
(1 each) Speakers / Microphone

Antenna Pass-through:

No RF
