Gamber Johnson GETAC F110 DOCK w/ 75MM Hole To Stud Adapter (NO RF) 7170-1068-00

Gamber Johnson Dock 7170-1068-00

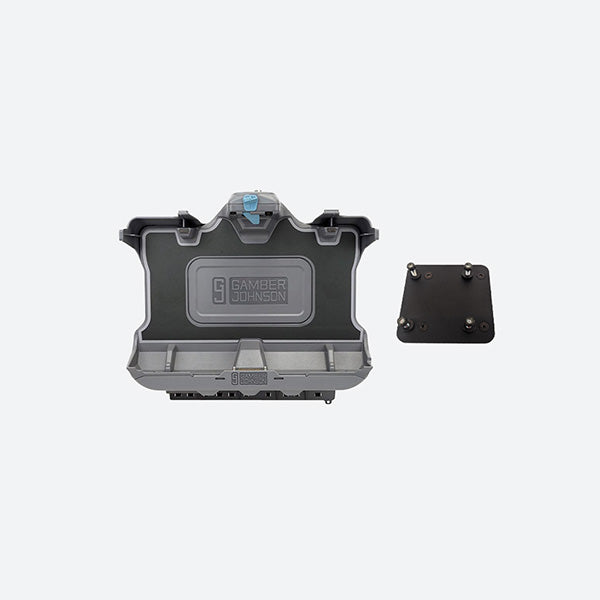

The Gamber Johnson dock 7170-1068-00 is designed for the Getac F110 and comes with a 75MM hole to stud adapter.  This dock does not come with any RF pass through or power supply. Featuring full port replication, the 7170-1068-00 kit includes an adapter to allow the default VESA 75mm mounting pattern on the dock to marry smoothly with a number of forklift mounting applications. If you require a dock with pass through or different features, please contact a Rugged or Die sales member at 816-388-0035 for a free consultation on what mounting and docking equipment is right for you!

7170-1068-00 Features

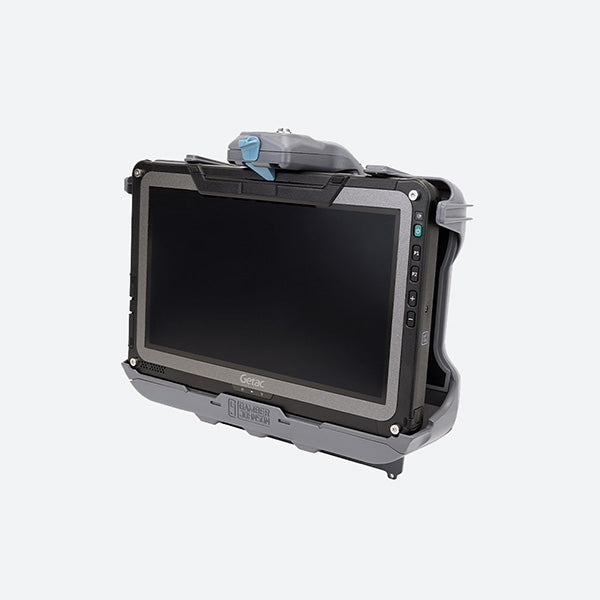

• Compatible with the Getac F110 G7 and all previous versions of the F110 tablet
• Docking station accommodates the tablet's mag strip reader and rotating hand strap

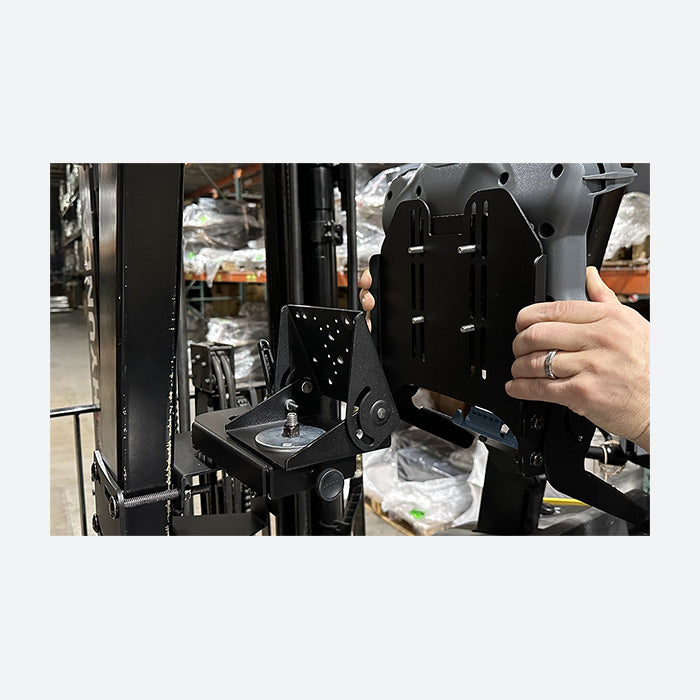

• 75MM HOLES TO STUDS ADAPTER PLATE  (7160-1942) included for easy one person installation when adding peripherals to your material handling solution
• Access to all tablet control buttons and ports while the tablet is docked
• Downward-facing I/O ports; integrated cable strain relief and cable management system
• Gamber-Johnson rugged construction and reliability
• VESA 75mm mounting pattern


7170-1068-00 Specifications

Weight

5 lbs / 2.27 kg

Height

6 in / 15.24 cm

Width

14 in / 35.56 cm

Depth

14 in / 35.56 cm

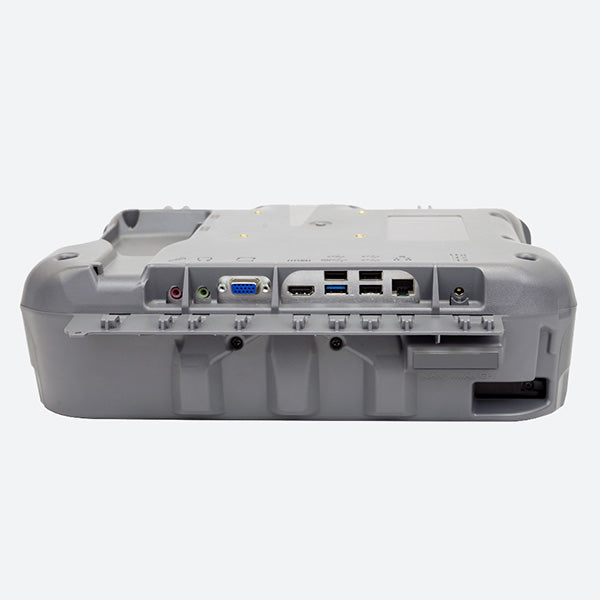

Port Replicators:

Getac certified electronics
(1) Ethernet - RJ45
(3) USB 2.0 (500mA) - 4 pin
(1) USB 3.0 (900mA) - 9 pin
(1) VGA D-sub - 9 pin
(1) HDMI - 19 pin
Tri RF Pass-through (optional) - SMA
Power input - 19VDC
(1 each) Speakers / Microphone

Antenna Pass-through:

No RF
