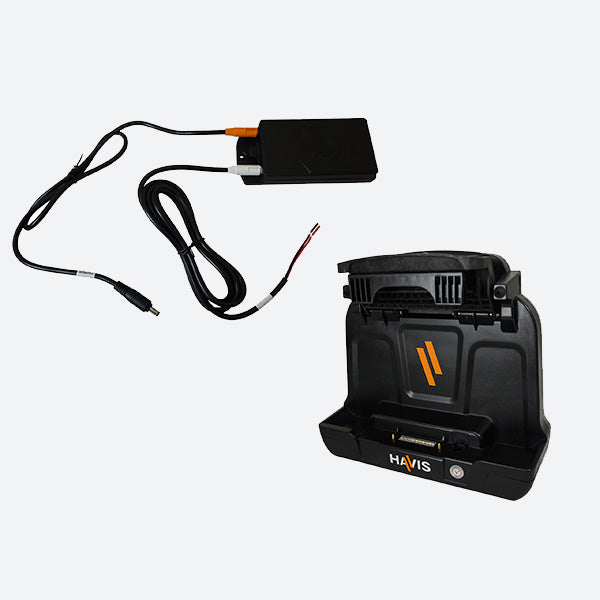

Havis Dock for Panasonic TOUGHBOOK G2 Advanced Port Replication with Power Supply DS-PAN-722N

Havis Docking Station DS-PAN-722N

Replacement part for DS-PAN-722

The DS-PAN-722N Havis vehicle dock is purpose built for the fully rugged Panasonic TOUGHBOOK FZ-G2 (while in tablet mode without keyboard.) Providing a safe and secure locking latch mechanism, the DS-PAN-722N will hold the FZ-G2 tablet safely in the vehicle and is ready to be mounted to a Havis mounting solution. The DS-PAN-722N includes advanced port replication and power supply about to power the FZ-G2. While the DS-PAN-722N provides port replication and power to the rugged tablet, it does not feature any RF pass through and so will not be able to accommodate external antennas. If antennas are needed, please consider alternative part number DS-PAN-722N-2.

DS-PAN-722N Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK G2 tablet in material handling, enterprise, public safety, military, and other demanding environments
• Panasonic certified electronics with advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Integrated VESA 75 mounting pattern
• Lightweight & compact design
• Bundle includes DS-PAN-721 docking station and 120N-B01-S03-1 Havis power supply
• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• Supports legacy TOUGHBOOK G1 tablet devices
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Made in the USA

DS-PAN-722N Specifications

Compatible computers:    Panasonic TOUGHBOOK G2 & G1
Dimensions:    10.0" (25.5 cm) x 11.4" (28.9 cm) x 4.4" (11.1 cm)
Certifications:    Vibration Testing: MIL-STD 810G 514.8, Panasonic: TOUGHBOOK Certified, UL safety certified, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, e-marked via vca
Connectivity includes:    serial: DB9 (9-Pin) connection (1), VGA: (1), USB: fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), HDMI (1), noise filtering: yes, emi filtering: yes, input voltage: 16V DC
Product weight:    3.7 lbs. (1.68kg)
Gross weight:    4.6 lbs
