Gamber Johnson Zirkona Threaded Pivot Pin 18834

Gamber Johnson Mounting Component 18834

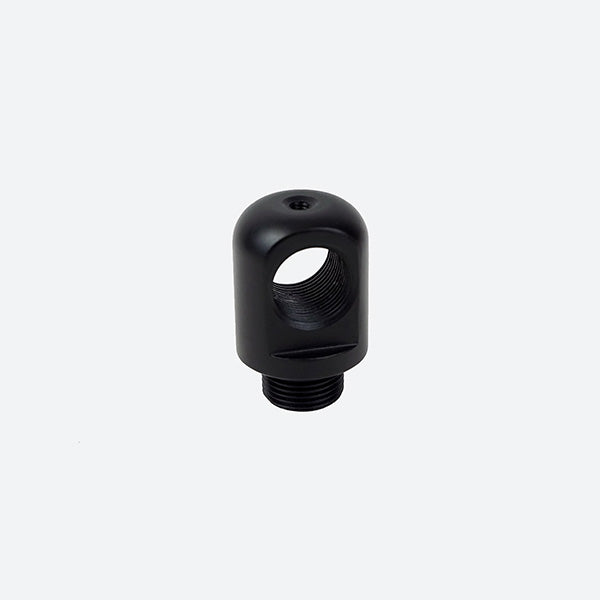

Featuring multiple threaded zones, the 18834 Zirkona Threaded Pivot Pin is ideal to create a strong 90 degree mounting angle for a small to medium sized mounting solution. With two M20 threaded zones set perpendicular to each other, the 18834 can attach or attach to any Zirkona threaded joiner. With an M5 threaded pivot pin hole for each, the 18834 can utilize set screws to fully lock the customized mounting solution into place. If you have any questions about the 18834 or need help completing a Gamber Johnson vehicle mounting solution, give the Rugged or Die mounting and docking specialists a call at 816-388-0035 or send your requirements to sales@ruggedordie.com for a custom quote!

18834 Features

• Two M20 threads perpendicular from each offers a strong, 90 degree angle to mount
• M5 threads on top of threaded pivot pin to allow for set screw to lock threads
• M20 threads attaches to any joiner as well as the 14145 threaded adapter to help make the right solution
• Requires the use of the device bracket for installation
• Anodized aluminum for a rust-free mount

18834 Specifications

Weight

0.15 lbs / 0.07 kg

Height

1.25 in / 3.18 cm

Width

2.00 in / 5.08 cm

Depth

NA
