Gamber Johnson Zirkona Medium Joiner Only (holds up to 6 lbs / 2.8kg) 7110-1235

Gamber Johnson Motion Attachment 7110-1235

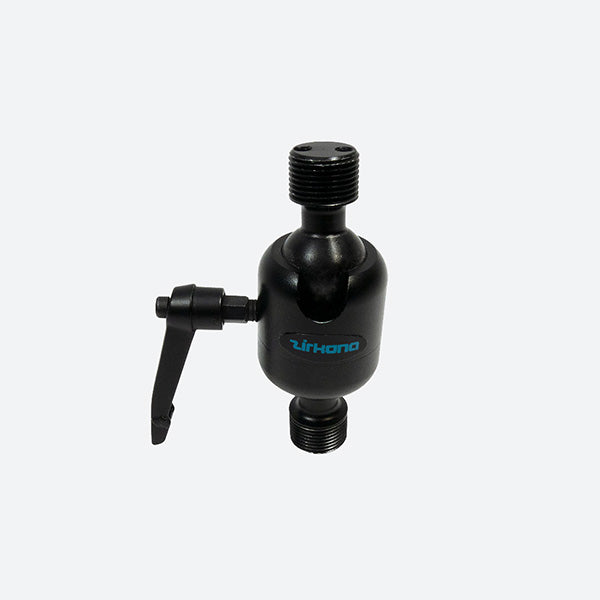

Intended as part of a solution to mount a medium device, the Zirkona medium Joiner 7110-1235 is a versatile mounting component. Featuring M20 threaded male/male ends, the 7110-1235 is compatible with Zirkona bases and mounting plates and cradles. With a hand tightening knob, the 7110-1235 can swivel on a ball and socket joint before locking into place. The 7110-1235 is rated to secure up to 6 pounds. The Rugged or Die Sales Team would be happy to help optimize your in-vehicle equipment solution or answer any questions you might have about the 7110-1235, chat with a live operator during our regular business hours Mon-Fri. 8-6PM

7110-1235 Features

• All metal construction (anodized aluminum) will not deform or degrade
• Quick adjust handle for easy adjustment to position the device
• All axes range of motion in X axis (left/right), Y axis (front/back) and Z axis (up/down)
• Multi-Configurable - extension tubes of various lengths work to achieve desired reach
• Encapsulated ball design offers theft deterrence

7110-1235 Specifications

Weight

0.45 lbs / 0.20 kg

Height

4.00 in / 10.16 cm

Width

3.38 in / 8.59 cm

Depth

.54 in / 3.91 cm

Recommend use of LOCTITE 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510) Loctite EA 9460 Loctite EA 9461 Loctite EA 9466
