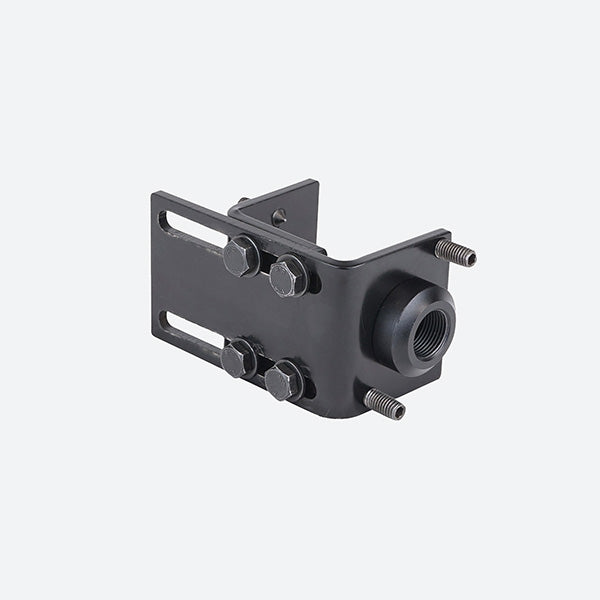

Gamber Johnson Zirkona Beam Mount 7110-1274

Gamber Johnson Vehicle Base 7110-1274

Compatible with virtually nay flat surface edge, the Gamber Johnson 7110-1274 Zirkona Beam Mount is highly adaptable and able to be used to secure a number of device mounts. Providing an M20 threaded insert base, the 7110-1274 bracket can expand and mount utilizing a 13mm sock wrench along with a 4mm hex key for proper tightening. Once mounted, the 7110-1274 can provide a base for a Zirkona joiner, arm or pole device mount. Our sales team is happy to answer any questions about the 7110-1274 or quote it as a complete mounting solution, give us a call at 816-388-0035

7110-1274 Features

• Four (4) set screws and four bolts to accommodate mounting to virtually any flat surface edge
• Heavy-duty steel for a strong mounting base
• M20 threads screwed right to base for easy Zirkona solution installation
• Bracket with four PEMs can be turned to accommodate thinner or thicker surfaces
• Works best with metal
• Set screws dig into the mounting surface creating a stable base for your solution
• Requires 13mm socket/wrench and 4mm hex key for installation
• Recommend use of Loctite 9460 on all threads

7110-1274 Specifications

Weight

0.5 lbs / 0.23 kg

Height

2.5 in / 6.35 cm

Width

2.25 in / 5.72 cm

Depth

5.25 in / 13.33 cm
