Gamber Johnson Underbody Support Plate 7160-0190

Gamber Johnson Adapter Plate 7160-0190

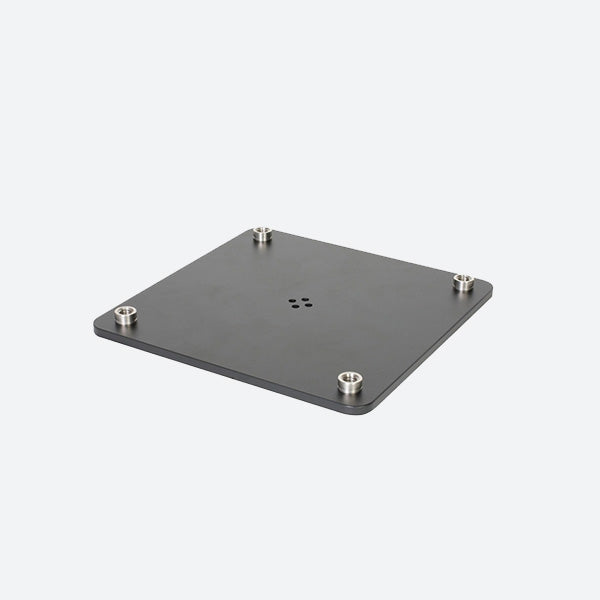

The 7160-0190 adapter plate helps secure a Gamber Johnson pedestal mount base to a drilled location on a vehicle. With threaded bolts, the 7160-0190 secures both face up and face down to the underside of the vehicle and provides a bolt pattern to fully secure Gamber Johnson Flat Floor Base part number DS-52. Gamber Johnson designed the 7160-0190 with center holes to allow for a single person installer to thread string or wire through the plate and raise it towards the vehicle underbelly for easy installation. If you have questions about the 7160-0190 or any other Gamber Johnson piece of equipment give our sales team a call at 816-388-0035

7160-0190 Features

• Underbody support plate provides greater stability to the DS-52 and distributes the clamping load across the vehicle body.
• Underbody support plate can be installed with two configurations:
  • Bolts with threads up (plate will remain in fixed position if the vehicle base is removed).
  • Bolts with threads down (plate will disengage when the vehicle base is removed).
• PEM studs are used in order to reduce installation time and can be installed by a single individual.
• Holes in center of plate allows installer to thread twine or wire and pull plate up to the under body.
• Heavy gauge steel construction for long-term durability.
• Black powdercoat finish for maximum corrosion resistance.

7160-0190 Specifications

Weight

4.91 lbs / 2.22 kg

Height

0.521 / 1.3 cm

Width

4.91 lbs / 2.22 kg

Depth

8.0 in / 20.3 cm
