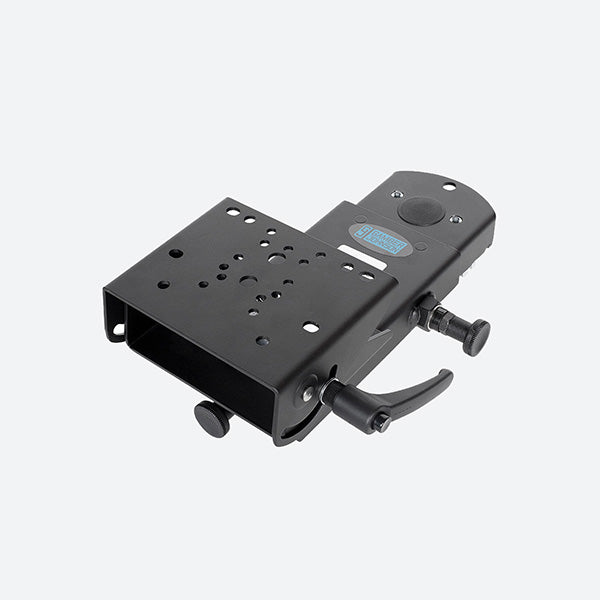

Gamber Johnson Mongoose 9-in. Locking Slide Arm w VESA 75mm Clevis 7160-0220

Gamber Johnson Motion Attachment 7160-0220

One of the most popular motion attachments to be developed, the Gamber Johnson Mongoose 7160-0220 redefined the industry and remains a workhorse of the in-vehicle computer mounting equipment solutions. Providing tilt, rotation and extension to a mounted computer or tablet dock, the 7160-0220 can be mounted on a passenger pedestal mount or a console top. Easily and highly adjustable, the Mongoose can position a rugged computer in perfect position to the user for optimal ergonomics. The 7160-0220 features a mounting pattern that can secure virtually any computer dock and includes VESA 75mm, Gamber Johnson 2x4, AMPs and NEC patterns. With extension between 9 to 13 inches, the 7160-0220 is great for a wide variety of cabin sizes. The Rugged or Die sales team would be happy to provide a custom quote for the 7160-0220 or a complete in-vehicle solution, send an email with your requirements or questions to sales@ruggedordie.com and we will respond within one business day!

7160-0220 Features

• The entire arm can rotate around 360° with locking points at every 15°
• To rotate the arm simply pull the front lever out, rotate to desired position and then release the lever
• Locking slide arm can telescope 9" to 13" from the center of the pole and utilizes the industry first, Slam and Lock technology, that allows you to simply push the computer back to the retracted position and it automatically locks into place
• Compatible Motion Attachment hole patterns:
  • VESA 75mm
  • Gamber-Johnson 2x4
  • NEC
  • AMPS
• Tilt capabilities:
  • 90° forward allows for tablets to be easily mounted
  • 26° aft movement
  • Riveted design allows for smoother tilt movement
• Swivel capabilities: 360°
• Heavy duty, spring loaded steel, side pin was tested to 50,000+ cycles
• Can be mounted directly to a flat surface or on any Upper Pole, Complete Pole, Center Pole, Low Profile Bracket or Gamber-Johnson 3-hole pattern
• Two PEMs added to the back of the Mongoose to attach the Tablet Display Mount (7160-0761 or 7160-0831)
• Heavy gauge steel construction for long-term durability
• Black powdercoat finish for maximum corrosion resistance

7160-0220 Specifications

Weight

6.9 lbs / 3.13 kg

Height

4.6 in / 11.8 cm

Width

7.2 in / 18.4 cm

Depth

11.3 in / 28.8 cm

Notes:
