Gamber Johnson Quad-Motion TS5: VESA 75 mm Gamber Johnson Hole Pattern 7160-0285

Gamber Johnson Motion Attachment 7160-0285

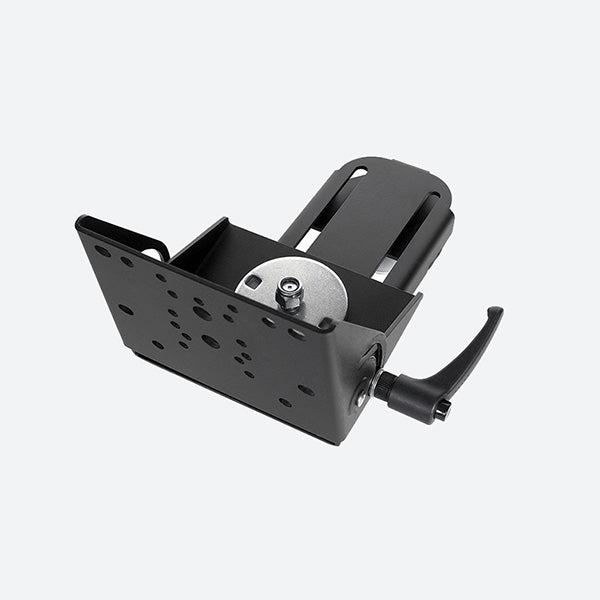

A computer mount motion attachment can come in a wide variety of form factors, each suited for different mounting spaces and needs. The Gamber Johnson 7160-0285 Quad-Motion TS5 is a sliding arm motion attachment perfect for small to medium mounting spaces. With a 5 inch slide reach, the included Clevis can move the tablet or laptop dock to the optimal location, while the VESA 75mm, Gamber-Johnson, NEC and AMPS mounting hole patterns make it compatible with almost any computer mount. Able to swivel 360 degrees, the quad points of articulation can maximize the ergonomics and utility of the 7160-0285. The 7160-0285 can be purchased directly online or our sales team can be reached at 816-388-0035 for a custom quote.

7160-0285 Features

• Two separate pivot points allow for swiveling, sliding, swiveling again and tilting computer to ideal location
• Maximum range of motion allows for comfortable use by both driver and passenger
• Adjustments can be made easily by turning the quick adjustment knob and moving the equipment in the desired position Improved sliding plate for smoother forward and backward motion
• Reduced height and width creates an optimal solution for console mounted configurations
• Motion Attachment: New Motion Attachment works with the follow hole patterns:
  • VESA 75mm
  • Gamber-Johnson 2x4
  • NEC
  • AMPS
• Tilt capabilities:
  • 90° forward allows for tablets to be easily mounted
  • 26° aft movement
• Riveted design allows for smoother tilt movement
• Swivel capabilities: 360°
• Heavy gauge steel construction for long-term durability
• Black powder coat finish for maximum corrosion resistance

7160-0285 Specifications

Weight

4.88 lbs. / 2.21 kg

Height

4.16 in / 10.6 cm

Width

7.23 in / 18.4 cm

Depth

9.50 in / 24.1 cm
