Gamber Johnson Locking Swing Arm 7160-0341

Gamber Johnson Motion Attachment 7160-0341

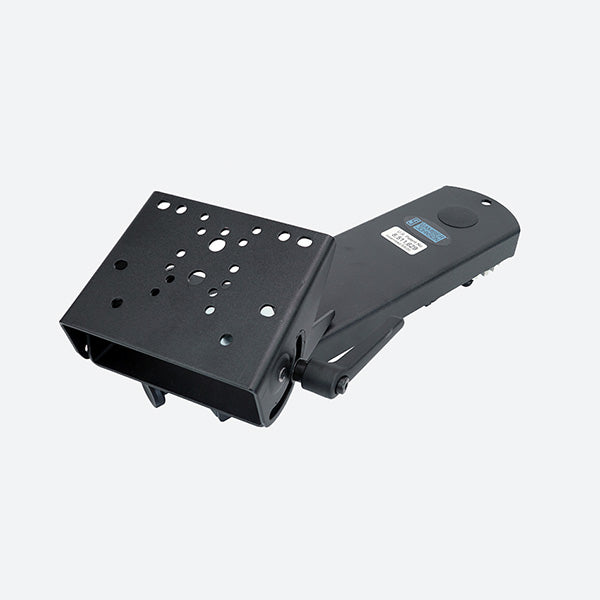

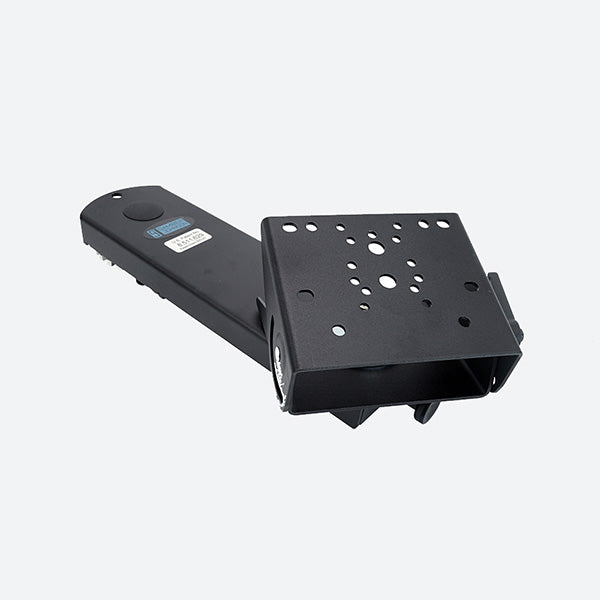

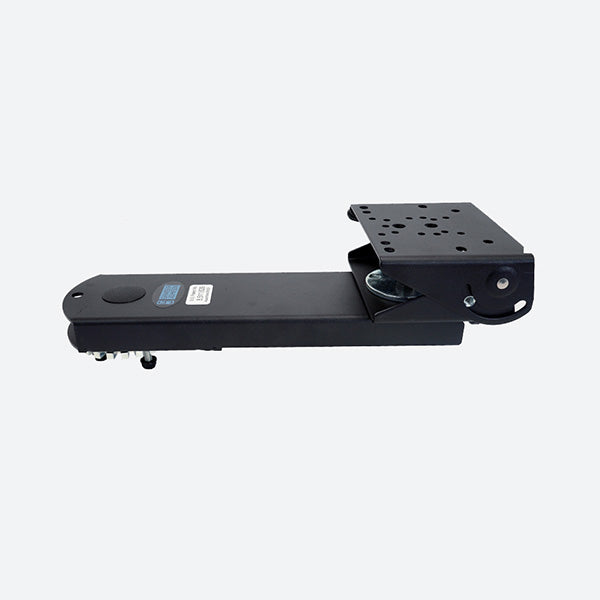

The Gamber Johnson 7160-0341 Locking Swing Arm includes a VESA 75 mm and Gamber-Johnson hole mounting pattern to accommodate a number of different laptop and tablet docks and cradles. While the 7160-0341 doesn't include any extension, it features two points of rotation as well as tilt capability to position the computer dock to the optimal location. The 7160-0341 is able to be easily mounted on any Gamber Johnson pole system or low profile bracket. If you have any questions about the 7160-0341 or other Gamber Johnson equipment, give our sales team a call at 816-388-0035

7160-0341 Features

• The entire arm can rotate around 360° with locking points at every 15°
• To rotate the arm simply pull the front lever out, rotate to desired position and then release the lever
• Ideal for work trucks and vans
• Works with the follow hole patterns:
  • VESA 75mm
  • Gamber-Johnson 2x4
  • NEC
  • AMPS
• Tilt capabilities:
  • 90° forward allows for tablets to be easily mounted
  • 26° aft movement
• Riveted design allows for smoother tilt movement
• Swivel capabilities: 360°
• Can be mounted directly to a flat surface or on any Upper Tube, Complete Pole, Center Pole or Low Profile Bracket
• Heavy gauge steel construction for long-term durability
• Black powder coat finish for maximum corrosion resistance

7160-0341 Specifications

Weight

5.90 lbs. / 2.67 kg

Height

3.59 in / 9.11 cm

Width

7.23 in / 18.36 cm

Depth

14.50 in / 36.83 cm

Notes:

Rotates: Motion Attachment - 360° Entire Arm - 360° can lock at every 15° Tilt: Yes - up to 90° fore/26° aft Motion Attachment Included: Yes
