Gamber Johnson Dual Clam Shell with Small Plate 7160-0366

Gamber Johnson Full Mount 7160-0366

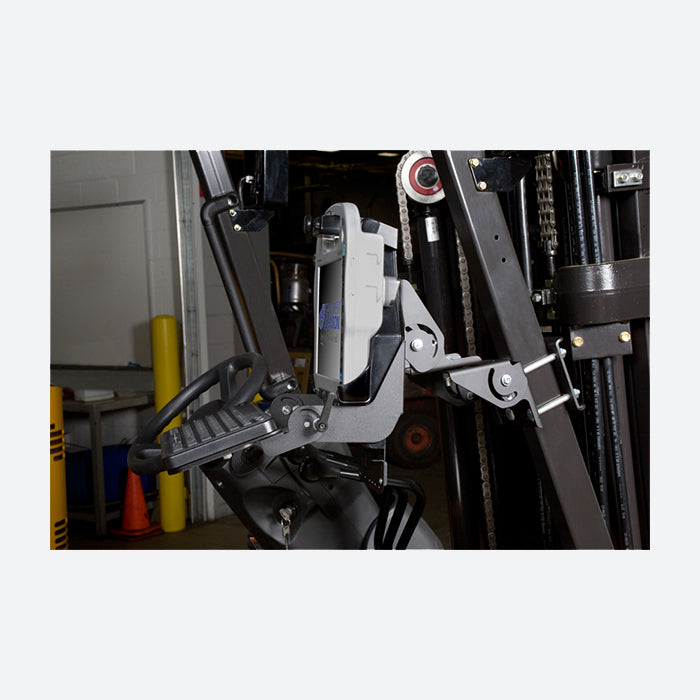

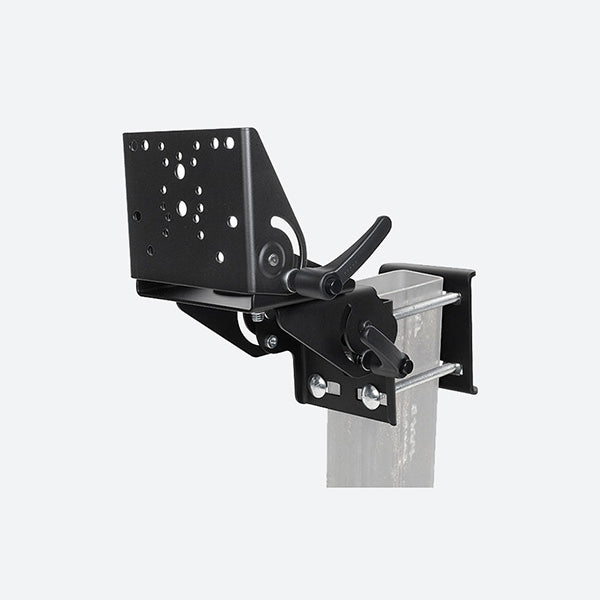

Able to mount easily to an overhead guard leg by clamping with bolts sandwiching two heavy plates, the Gamber Johnson 7160-0366 Dual Clam Shell with Small Plate mount is a great stand alone mount. The small plate clamp is compatible with overhead guard legs between 1.5 to 2.5 inches wide, if the overhead guard is larger please consider the Large Plate Dual Clevis Mount part number 7160-0367. With AMPS, NEC and 75 mm VESA mounting patterns, the 7160-0366 is able to accommodate a wide variety of motion attachments, mounts and docks while the dual clevis system allows the user to position the computer to the ideal location. Built out of heavy gauge and rugged materials, the 7160-0366 and most other Gamber Johnson parts are built to withstand the heaviest of abuse and are perfect for material handling work conditions. Let a sales rep help build the 7160-0366 into a complete computer mounting solution with a computer dock or cradle and other suggested pieces, give us a call at 816-388-0035

7160-0366 Features

• Clam Shell features the following hole patterns: AMPS, NEC and VESA 75mm , Gamber-Johnson 2"x4.09"

Tilt capabilities:


• 90° forward allows for tablets to be easily mounted
• 26° aft movement with a positive stop at 26°
• Riveted design allows for smoother tilt movement
• To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever
• A secondary bolt is included to lock the clevis into a permanent position
• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance

7160-0366 Specifications

Weight

6.18 lbs. / 2.8 kg

Height

9.77 in / 24.8 cm

Width

7.26 in / 18.4 cm

Depth

6.96 in / 25.3 cm

Placement:
