Gamber Johnson Extended Overhead Guard Mount w Clevis 7160-0368

Gamber Johnson Full Mount 7160-0368

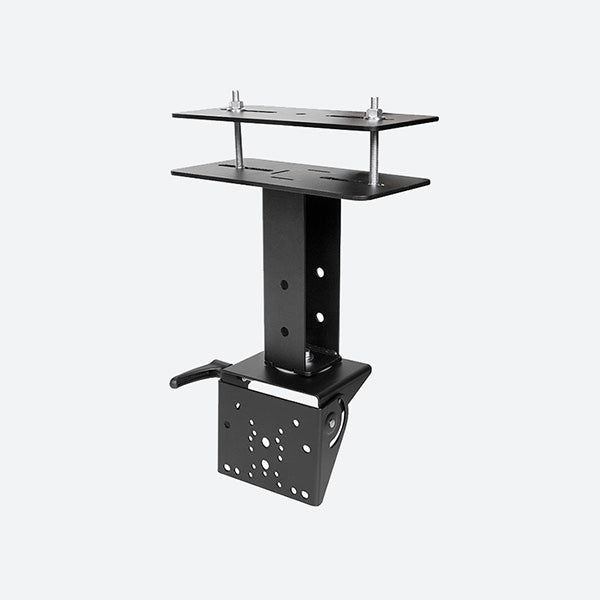

Able to mount easily to an overhead guard by clamping with bolts on sandwiching plates, the Gamber Johnson  7160-0368 Extended Overhead Guard Mount with Clevis is perfect to mount a tablet within easy site lines of the user. With AMPS, NEC and 75 mm VESA mounting patterns, the  7160-0368 is able to accommodate a wide variety of tablet docks and cradles. Complete with angled tilt, the included clevis is extended down 8 inches to mount the tablet for easy use. Built out of heavy gauge and rugged materials, the  7160-0368 and most other Gamber Johnson parts are built to withstand the heaviest of abuse and are perfect for material handling work conditions. Let a sales rep help build the  7160-0368 into a complete computer mounting solution with a computer dock or cradle or even help with the purchase of a rugged tablet such as the Panasonic FZ-G2 or Getac F110, give us a call at 816-388-0035

7160-0368 Features

• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance
• The Overhead Guard Mount allows users to mount device from the top of the overhead guard
• To arm extends down 8.0” from the top of the overhead guard
• Overhead Guard Mount with Clevis features the following hole patterns; AMPS, NEC, 75mm VESA, Gamber-Johnson 2"x4.09"

7160-0368 Specifications

Weight

9.73 lbs. / 4.41 kg

Height

13.15 in / 33.4 cm

Width

10.0 in / 25.4 cm

Depth

5.6 in / 14.22 cm

Notes:
