Gamber Johnson Clam Shell w Large Plate 7160-0370

Gamber Johnson Full Mount 7160-0370

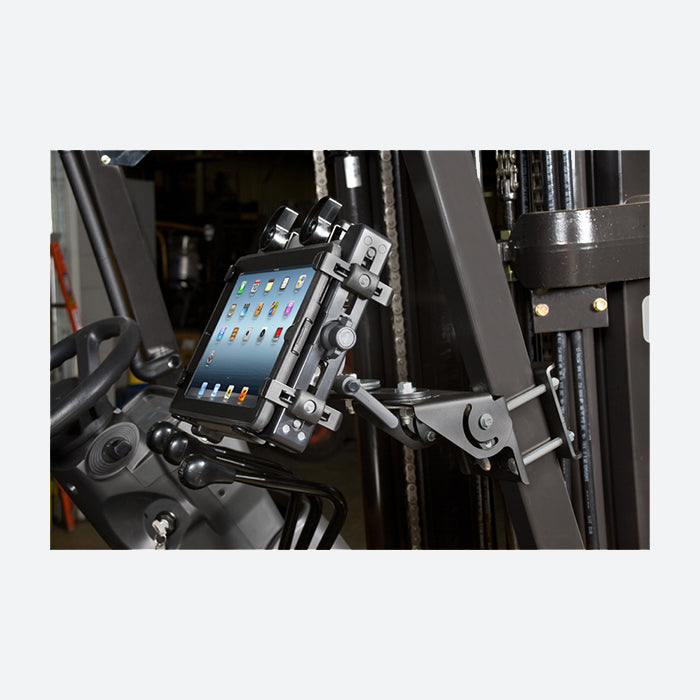

Able to mount easily to an overhead guard leg by clamping with bolts, the Gamber Johnson 7160-0370 Clam Shell with Large Plate can be a stand alone mount or be paired with other Clevis motion attachments and extending arms to add increased functionality. With AMPS, NEC and 75 mm VESA mounting patterns, the 7160-0370 is able to accommodate a wide variety of motion attachments, mounts and docks. With a 160 up and down tilt, the included clevis would be perfect for a low profile tablet dock solution. Built out of heavy gauge and rugged materials, the 7160-0370 and most other Gamber Johnson parts are built to withstand the heaviest of abuse and are perfect for material handling work conditions. Let a sales rep help build the 7160-0370 into a complete computer mounting solution with a computer dock or cradle and other suggested pieces, give us a call at 816-388-0035

7160-0370 Features

• Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA
• The Clam Shell can be tilted up or down for a total of 160°
• To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever
• A secondary bolt is included to lock the clam shell into a permanent position

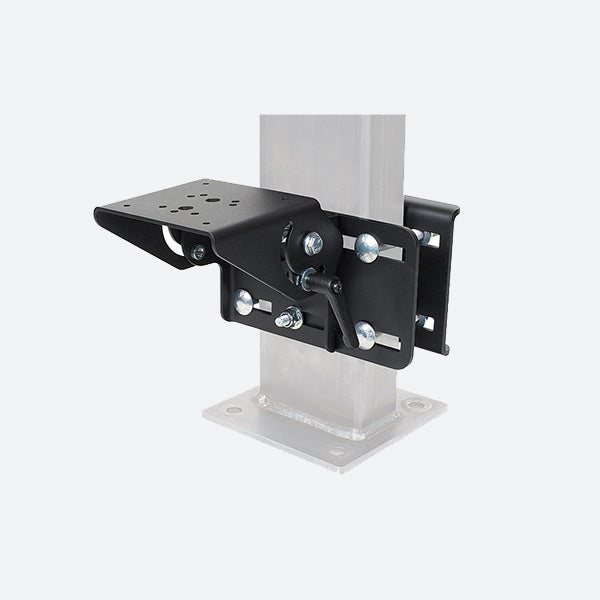

• Plate sandwiches the overhead guard leg and allows user to position the device at the desired height position
• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance

7160-0370 Specifications

Weight

5.80 lbs. / 2.63 kg

Height

4.6 in / 11.68 cm

Width

6.8 in / 17.27 cm

Depth

5.28 in / 13.41 cm
