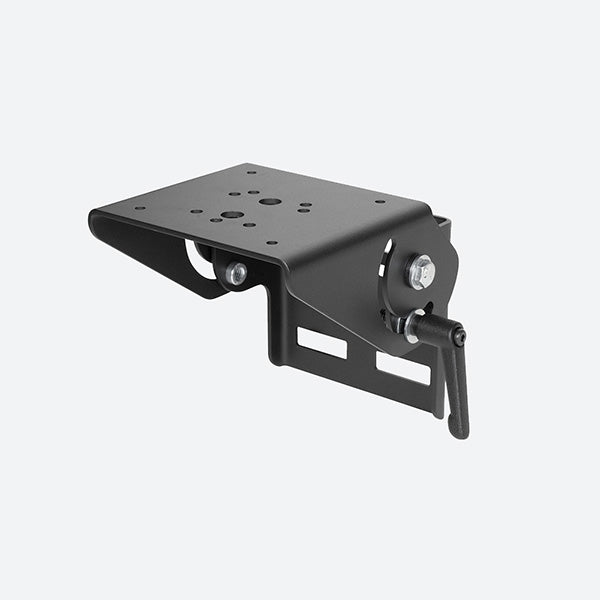

Gamber Johnson Secondary Clam Shell 7160-0371

Gamber Johnson Motion Attachment 7160-0371

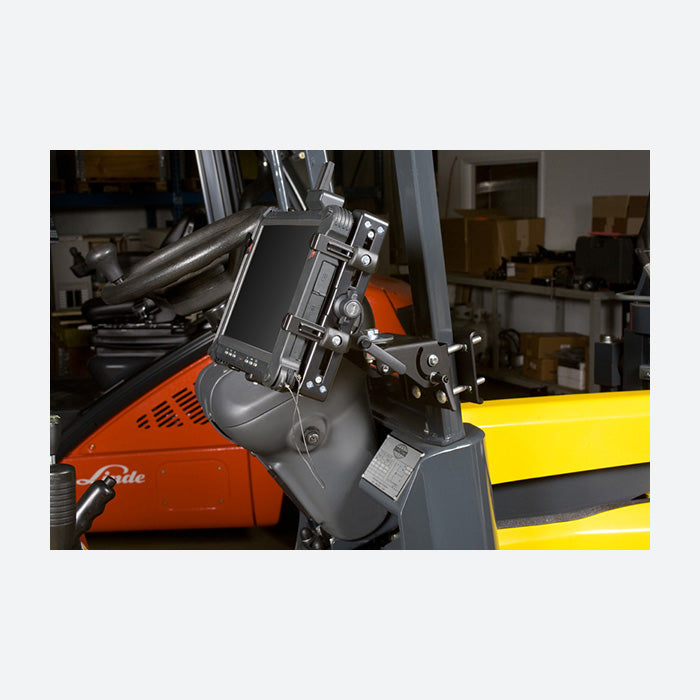

While technically able to operate as a stand alone motion attachment, the Gamber Johnson 7160-0371 secondary clam shell is purpose built to add more versatility to an equipment mounting package. With an AMPS, NEC and 75 mm VESA mounting pattern, the 7160-0371 can be tilted up or down up to 160 degrees with an adjustable lever. Ideal for mounting on Gamber Johnson mounting solutions such as 7160-0370, the secondary clamshell can add additional points of articulation to a tablet or laptop making it perfect for forklift and warehouse application. Let our sales team help you build the 7160-0451 into a complete computer mounting solution, give us a call at 816-388-0035

7160-0371 Features

• Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA
• Clam Shell can be tilted up or down for a total of 160°
• To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever
• A secondary bolt is included to lock the clam shell into a permanent position
• Can be mounted directly to the Clam Shell with Small Plate (7160-0357) or Clam Shell with Large Plate (7160-0370), when attached to plate device the clam shell can rotate 360°
• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance

7160-0371 Specifications

Weight

1.72 lbs. / 0.78 kg

Height

4.60 in / 11.7 cm

Width

5.97 in / 15.2 cm

Depth

5.17 in / 13.1 cm

Placement:

Attaches to any Clam Shell (7160-0357 and 7160-0370) for additional articulation
