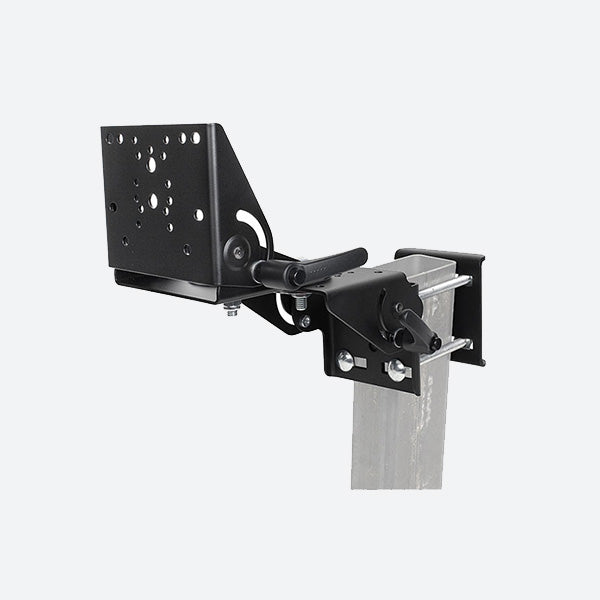

Gamber Johnson Dual Clam Shell w Articulating Arm and Small Plate 7160-0420

Gamber Johnson Motion Attachment 7160-0420

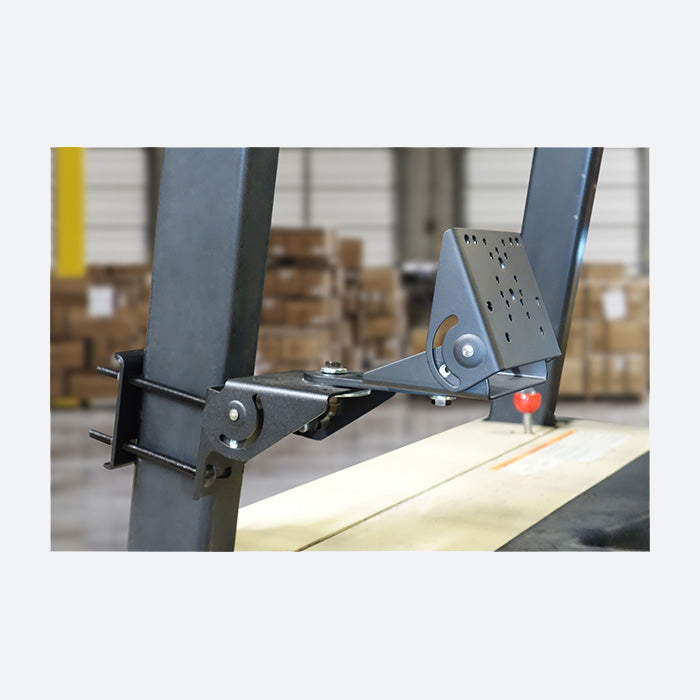

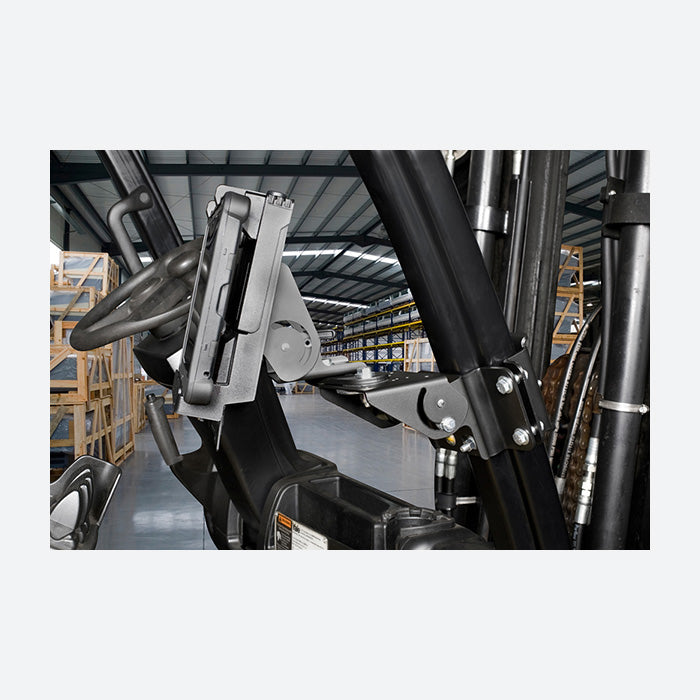

Ideal for a computer mounting solution in a warehouse environment, the Gamber Johnson 7160-0420 Dual Clamshell with Articulating Arm and Small Plate installs easily and quickly and can be positioned to the optimal location. Able to support small to large tablet mounts, the 7160-0420 attaches directly to an overhead guard mount on a forklift. With an AMPS, NEC, VESA 75mm and Gamber Johnson 2x4 mounting patterns, the 7160-0420 can accommodate virtually any Gamber Johnson or competitor tablet dock or cradle. With multiple points of articulation including tilt and multiple points swivel, the 7160-0420 provides much needed articulation to maximize the ergonomics of the computer. Our sales reps at Rugged or Die would be pleased to answer any questions you might have about the 7160-0420 or help craft the optimal computer mounting solution for your warehouse management environment, give us a call at 816-388-0035

7160-0420 Features

Placement

• Designed to attach to rectangular forklift support braces ranging from 1.5" to 2.5" in width.

Tilt

• Clevis: Tilts up to 90° forward.
• Clam Shell: Tilts up to 160°.

Swivel

• Motion Attachment: Rotates 360°.
• Entire Arm: Rotates 360°.

Clam Shell Features

• Compatible with hole patterns: AMPS, NEC, 75mm VESA, and Gamber-Johnson (2" x 4.09").
• Both the entire arm and Motion Attachment can rotate 360°.
• Arm extends for easier access to equipment and can be tightened to lock in place.
• Tilt Options:
         90° forward tilt for tablet mounting.
         26° aft tilt with a positive stop at 26°.
• Riveted design ensures smooth tilt movement.
• Adjustable lever allows tilt adjustment; re-tighten to secure position.
• Secondary bolt available for locking clevis in place.
• Constructed from heavy gauge steel for durability in rugged environments.
• Black powder coat finish for enhanced corrosion resistance.

Small Plate Features

• Compatible with hole patterns: AMPS, NEC, and 75mm VESA.
• Offers 160° tilt capability, adjustable via an adjustable lever.
• Secondary bolt provided to lock the Clam Shell in a fixed position.
• Plate design sandwiches the overhead guard leg for precise height adjustment.
• Built with heavy gauge steel for durability in harsh environments.
• Black powder coat finish for maximum protection against corrosion.

7160-0420 Specifications

Weight

7.1 lbs / 3.22 kg

Height

4 in / 10.16 cm

Width

7 in / 17.78 cm

Depth

13 in / 33.02 cm
