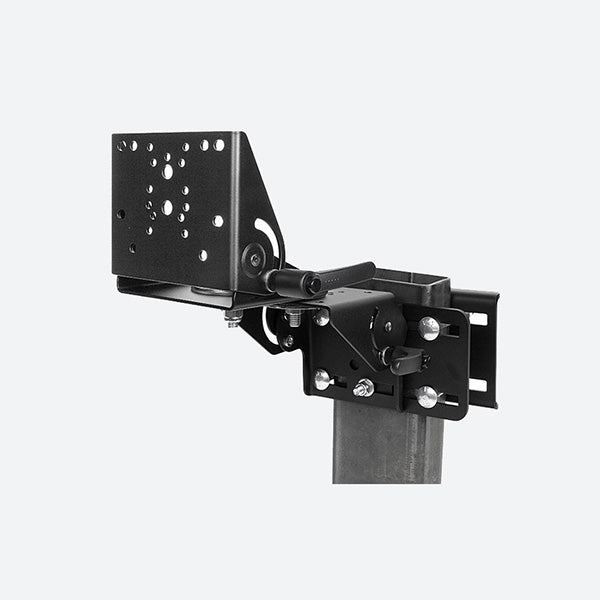

Gamber Johnson Dual Clamshell w Articulating Arm and Large Plate 7160-0421

Gamber Johnson Full Mount 7160-0421

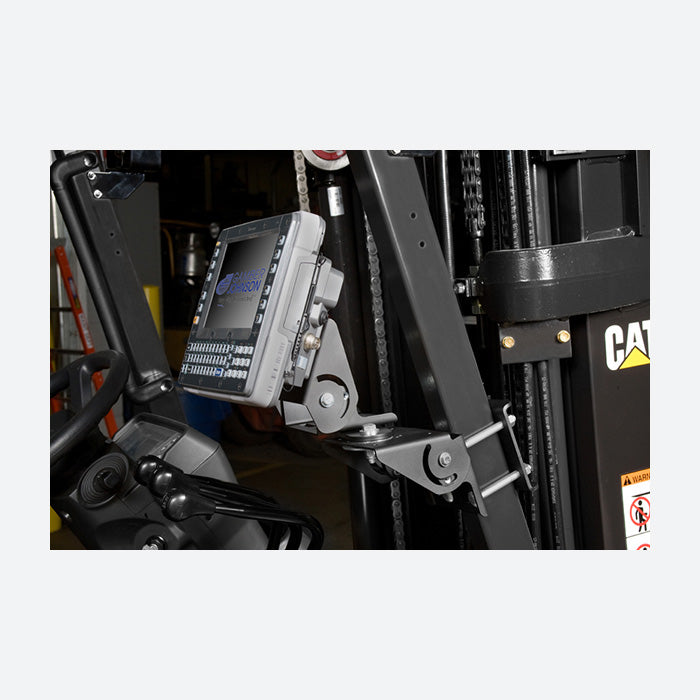

Ideal for a computer mounting solution in a warehouse environment, the Gamber Johnson 7160-0421 Dual Clamshell with Articulating Arm and Large Plate installs easily and quickly and can be positioned to the optimal location. Able to support small to large tablet mounts, the 7160-0421 attaches directly to an overhead guard mount on a forklift. With an AMPS, NEC, VESA 75mm and Gamber Johnson 2x4 mounting patterns, the 7160-0421 can accommodate virtually any Gamber Johnson or competitor tablet dock or cradle. With multiple points of articulation including tilt and multiple points swivel, the 7160-0421 provides much needed articulation to maximize the ergonomics of the computer. Our sales reps at Rugged or Die would be pleased to answer any questions you might have about the 7160-0421 or help craft the optimal computer mounting solution for your warehouse management environment, give us a call at 816-388-0035

7160-0421 Features

CLAM SHELL FEATURES:

• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance
• Clam Shell features the following hole patterns: AMPS, NEC, 75mm VESA, Gamber-Johnson 2”x 4.09”
• The entire arm can rotate around 360° and the Motion Attachment can also rotate 360°
• Arm extends, bringing equipment closer to the user
• Arm can be tighten down to be locked into a permanent position

Tilt capabilities:

• 90° forward allows for tablets to be easily mounted
• 26° aft movement with a positive stop at 26°
• Riveted design allows for smoother tilt movement
• To tilt the Clam Shell, simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever
• A secondary bolt is included to lock the clevis into a permanent position


LARGE PLATE FEATURES


• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance
• Clam Shell features the following hole patterns: AMPS, NEC and 75mm VESA
• The Clam Shell can be tilted up or down for a total of 160°
• To tilt the Clam Shell simply loosen the adjustable lever, tilt to desired position and then re-tighten the lever
• A secondary bolt is included to lock the clam shell into a permanent position
• Plate sandwiches the overhead guard leg and allows user to position the device at the desired height position

Tilt: Yes - Clevis up to 90‚ fore Yes - Clam Shell up to 160

Swivel: Motion Attachment - 360‚ Entire arm - 360‚

7160-0421 Specifications

Weight

9.79 lbs. / 4.44 kg

Height

10.08 in / 25.60 cm

Width

6.63 in / 16.84 cm

Depth

10.14 in / 25.76 cm

Placement:

Attaches to rectangular forklift support braces 2.5" to 5.0" (6.35 cm to 12.7 cm) wide
