Gamber Johnson RAM HD, and Classic Body Style RAM 1500 Leg Kit 7160-0422

Gamber Johnson Console Mount 7160-0422

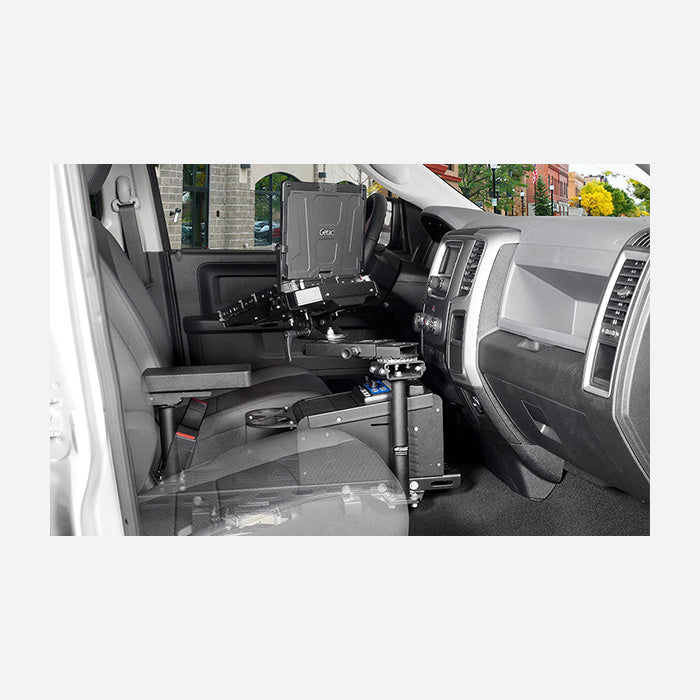

Compatible with the 2011+ RAM HD, 2011-2018 and 2019-Current (Classic Body Style) RAM 1500 Leg Kit (Without Center Seat) the 7160-0422 leg kit enables a MCS top plate to be mounted in the vehicle without requiring drilling. Once the 7160-0422 is installed to mounting points on the transmission hump, a short or long MCS top plate (Gamber Johnson part numbers 7160-0086 for the short plate or 7160-0085 for the long plate) can be attached and provide a stable and easy to install base for a Gamber Johnson console or workstation. A Rugged or Die sales rep can help build a custom quote for a complete in-vehicle console solution, give us a call at 816-388-0035

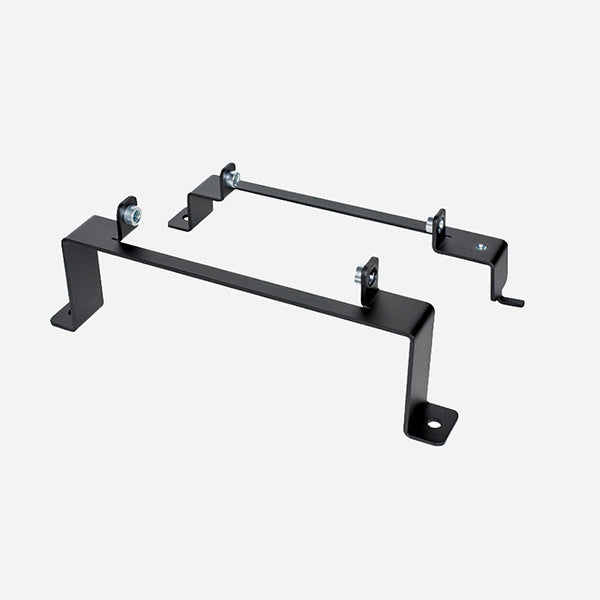

7160-0422 Features

  • Heavy gauge steel construction for long-term durability
  • Black powdercoat finish for maximum corrosion resistance
  • Legs attach to both short and long MCS Top Plates (7160-0085 or 7160-0086).
  • Legs are compatible with both the Retail and the Special Service (SSV) Models.

7160-0422 Specifications

Weight

2.0 lbs. / 0.9 kg

Height

NA

Width

NA

Depth

NA

Notes:

  • This leg kit is for Ram trucks that do NOT have a center seat (SSV models). For Ram truck models with a center seat, see other leg kit option (7160-0985).
  • Compatible Vehicles:
    • 2011-Current RAM 2500-5500 *without center seat
    • 2011-2018 RAM 1500
    • 2019-Current RAM 1500 (Classic Body Style)
