Gamber Johnson Universal Wall Mount/Adapter 7160-0454

Gamber Johnson Adapter Plate 7160-0454

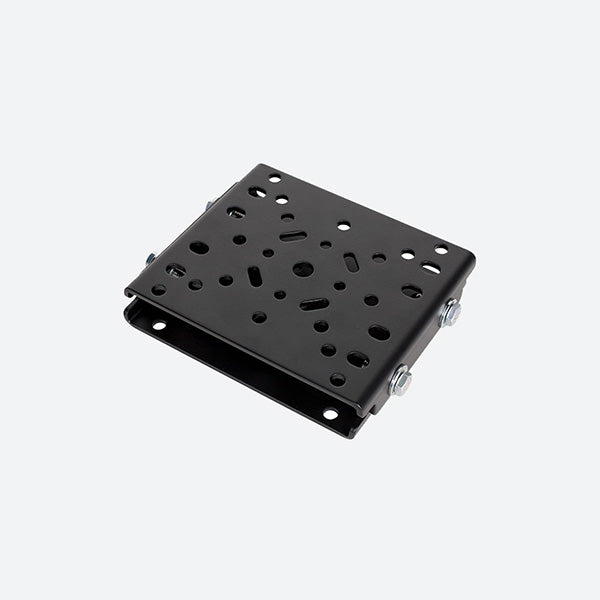

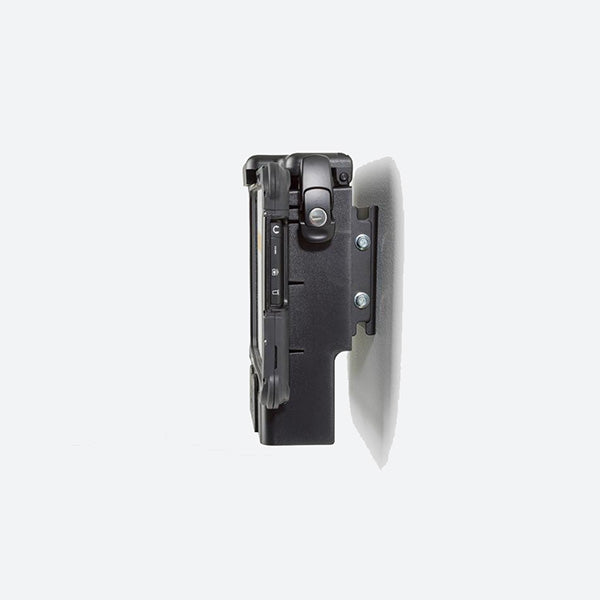

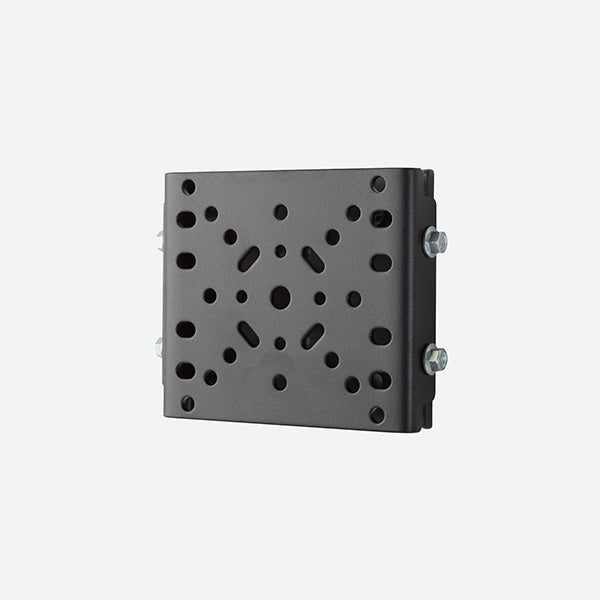

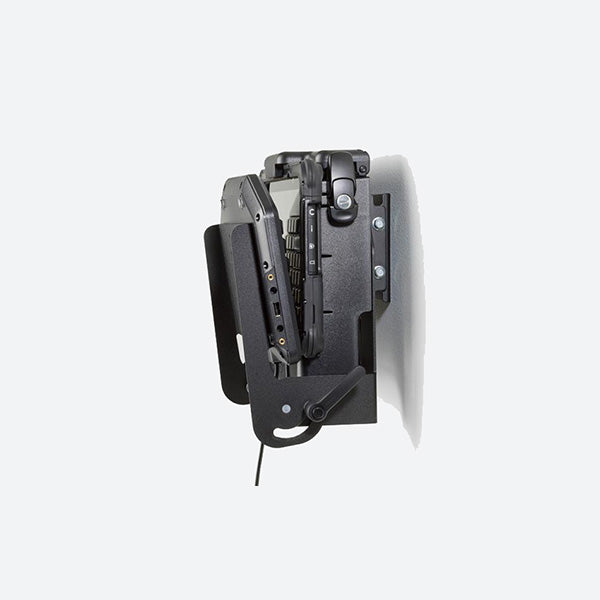

The Gamber Johnson 7160-0454 adapter plate is a robust and durable solution that has many versatile applications. Intended primarily as a way to mount a tablet dock or cradle to a vertical surface, the 7160-0454 comes as two plates each with a VESA 75mm, VESA 100mm, NEC, AMPS and Gamber Johnson 2x4 mounting pattern. When installing the 7160-0454, one plate is attached to the dock while another is attached to the vertical surface and then side bolts join the plates for a secure mount. The 7160-0454 is a fantastic piece of equipment to help join two items that have competing mounting patterns, for example: joining a VESA 75mm enabled dock to a AMPS pattern mount. Sandwiching between the two mounting components, the 7160-0454 excels at enabling users to install new equipment onto pre-existing or competing mounting hardware thereby saving budgets and utilizing on-hand equipment where possible. Our sales team can help answer any question about the 7160-0454 or other Gamber Johnson hardware, give us a call at 816-388-0035

7160-0454 Features

• A simple "close-to-the-surface" vertical or horizontal solution
• Easy installation - one half attaches to the surface and the other half attaches to the device
• VESA 75/100mm, NEC, AMPS, and Gamber-Johnson 2x4 mounting patterns
• Rugged steel with black powder coat finish for maximum corrosion resistance
• Adapter plate includes pem's for easy installation

7160-0454 Specifications

Weight

0.85 lbs. / 0.39 kg

Height

4.5 in / 11.4 cm

Width

5.5 in / 14.0 cm

Depth

1.1 in / 2.8 cm

Compatible With:

• Screens, displays or docking stations that utilize the 75mm and 100mm VESA, NEC, AMPS hole pattern.
