Gamber Johnson TOUGHBOOK FZ-G1/G2 Full Port Replication Dock w No RF 7160-0487-00

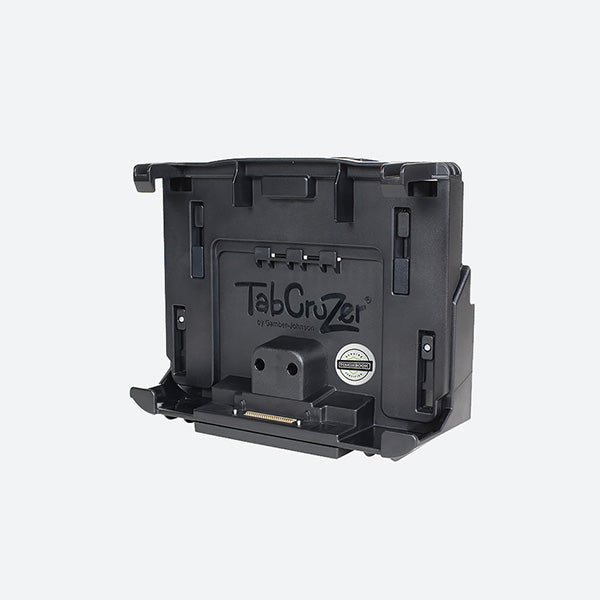

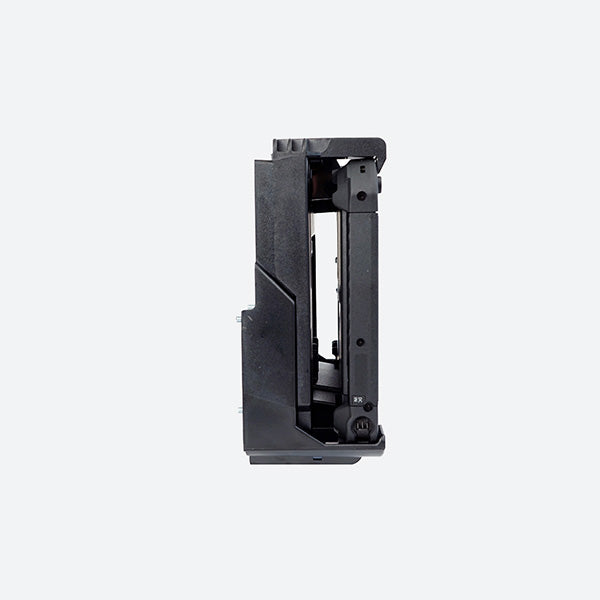

Gamber Johnson Dock 7160-0487-00

Providing full port replication, the Gamber Johnson 7160-0487-00 dock is a great piece of equipment for mounting a Panasonic TOUGHBOOK FZ-G2 or Toughpad FZ-G1. The 7160-0487-00 features an ethernet and serial port as well as 2 USB 3.0 ports. Unlike a lite port replication dock, the full port replication of the 7160-0487-00 provides an HDMI and Serial port as well. The 7160-0487-00 does not have any RF pass through and cannot attach external antennas, if that feature is required please consider the dual RF Gamber Johnson dock part number 7160-0487-02. The dock can easily mount the FZ-G1 or FZ-G2 (without the keyboard) in a vehicle and has a VESA 75 mm mounting pattern making it compatible with most motion attachments. If you have any questions about the 7160-0487-00 or are interested in a quote for a complete in-vehicle computer solution including the FZ-G2 itself, give our sales team a call at 816-388-0035

7160-0487-00 Features

  • Compatible with the Panasonic TOUGHBOOK FZ-G2 and Toughpad FZ-G1 tablet computers with small or large bumper guards
  • Panasonic certified electronics
  • Docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards.
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer
  • Upward-facing I/O ports, integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

Kit Includes:

  • Panasonic TOUGHBOOK FZ-G2 and Toughpad FZ-G1 Docking Station
  • Mounting Hardware
  • Installation Instructions

7160-0487-00 Specifications

Weight

2.5 lbs / 1.13 kg

Height

9.14 in / 23.22 cm

Width

11.22 in / 28.5 cm

Depth

3.8 in / 9.65 cm

Port Replicators:

Panasonic certified electronics (1)
 Ethernet - RJ45 (1)
Serial - D-sub 9-pin (1)
VGA - D-sub 9 pin (1)
HDMI - 19 pin (2)
USB 3.0 (900mA) - 9 pin Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch

Antenna Pass-through:

No RF

Power Supply:

Power adapter is not included, please use one of the following:
LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)
