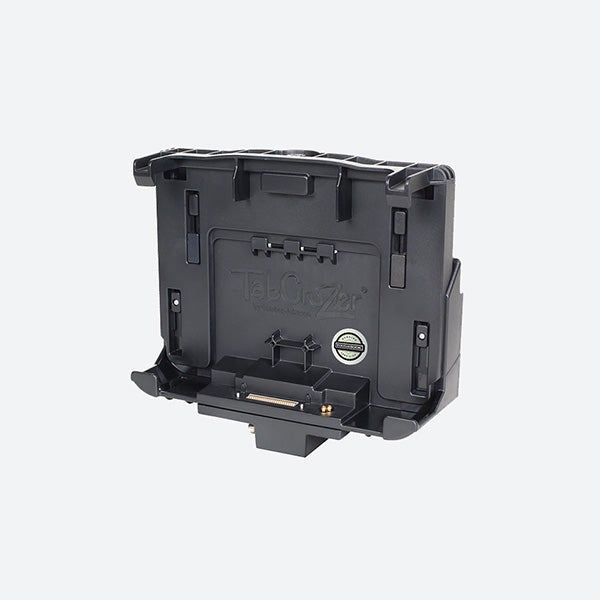

Gamber Johnson Panasonic FZ-G1/G2 Lite Port Replication Dock w Dual RF 7160-0487-22

Gamber Johnson Dock 7160-0487-22

Providing lite port replication as well as dual RF antenna pass through, the Gamber Johnson 7160-0487-22 dock is a great piece of equipment for mounting a Panasonic TOUGHBOOK FZ-G2 or Toughpad FZ-G1. The 7160-0487-22 features an ethernet and serial port as well as 2 USB 3.0 ports but does not have an HDMI port (if an HDMI port is required please consider a full port replication dock such as Gamber Johnson part number 7160-0487-02.) With dual RF, the 7160-0487-22 can accommodate external antennas being attached to boost the radio signals of the FZ-G2 such as 4G LTE or dedicated GPS. The dock can easily mount the FZ-G1 or FZ-G2 (without the keyboard) in a vehicle and has a VESA 75 mm mounting pattern making it compatible with most motion attachments. If you have any questions about the 7160-0487-22 or are interested in a quote for a complete in-vehicle computer solution including the FZ-G2 itself, give our sales team a call at 816-388-0035

7160-0487-22 Features

  • Compatible with the Panasonic Toughpad FZ-G1 and TOUGHBOOK FZ-G2 tablet computers with small or large bumper guards
  • Panasonic certified electronics
  • Docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards.
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer
  • Upward-facing I/O ports, integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • Dual RF TNC

Kit Includes:

  • Panasonic FZ-G1 / FZ-G2 Docking Station
  • Mounting Hardware
  • Installation Instructions

7160-0487-22 Specifications

Weight

2.50 lbs. / 0.91 kg

Height

9.89 in / 25.12 cm

Width

11.22 in / 28.5 cm

Depth

3.8 in / 9.65 cm

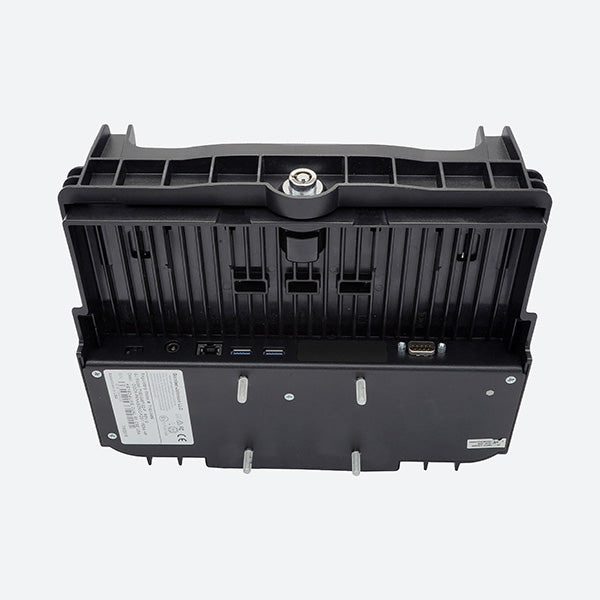

Port Replicators:

Panasonic certified electronics
(1) Ethernet - RJ45
(1) Serial - D-sub 9-pin
(2) USB 3.0 (900mA) - 9 pin
Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch

Antenna Pass-through:

Dual RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)
