Gamber Johnson 6 in. Articulating Arm 7160-0497

Gamber Johnson Motion Attachment 7160-0497

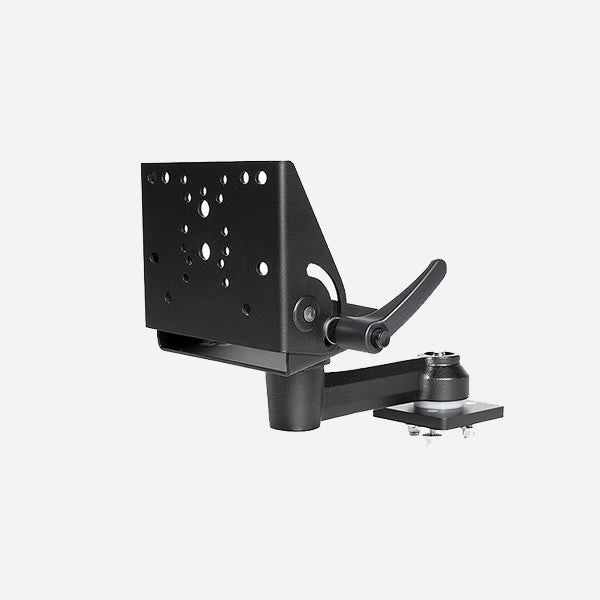

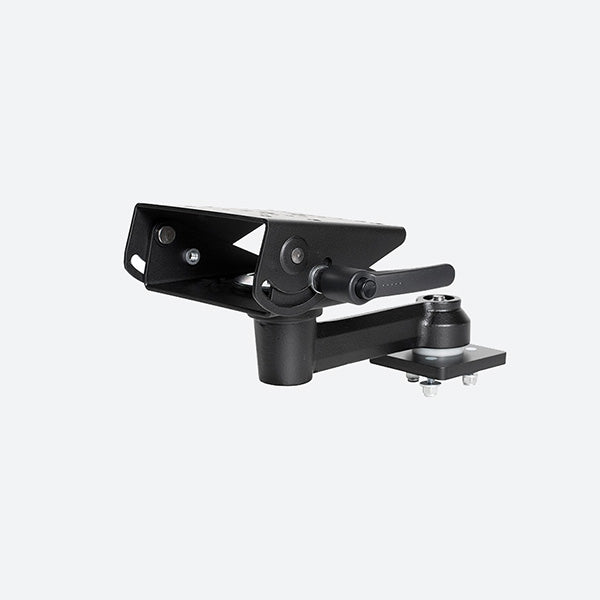

The Gamber Johnson 7160-0497 6 inch Articulating Arm is a no frills motion attachment that can attach to any Gamber upper tube or complete pole mounting solution. Providing a clevis tilt swivel device to a computer or tablet dock, the 7160-0497 also has a 6 inch extension arm that can swivel 360 degrees around the mount. While other motion attachments provide further points of articulation such as extension or independent swivel, the 7160-0497 articulating arm comes in at a budget friendly price point for consumers that don't require a complex piece of equipment. Our sales team would be happy to help answer any questions about the 7160-0497 or assist with building a complete computer mounting solution, give us a call at 816-388-0035

7160-0497 Features

• New clevis works with the follow hole patterns:
  • VESA 75mm
  • Gamber-Johnson 2x4
  • NEC
  • AMPS
• Tilt capabilities:
  • 90° forward allows for tablets to be easily mounted
  • 26° aft movement
  • Riveted design allows for smoother tilt movement
• Swivel capabilities: 360°
• Marine-grade aluminum to help prevent rusting
• Black powder coat finish for maximum corrosion resistance
• Can tilt, swivel and rotate equipment 360° to virtually any position for optimal computer placement
• Extends 6" bringing equipment close to the user
• Designed to hold Gamber-Johnson computer docking stations or cradles
• Recommended for the use with Universal Portable Base (7160-0033), which is placed on the passenger seat

7160-0497 Specifications

Weight

4.24 lbs / 1.92 kg

Height

5.63 in / 14.3 cm

Width

7.29 in / 18.52 cm

Depth

9.35 in / 23.75 cm
