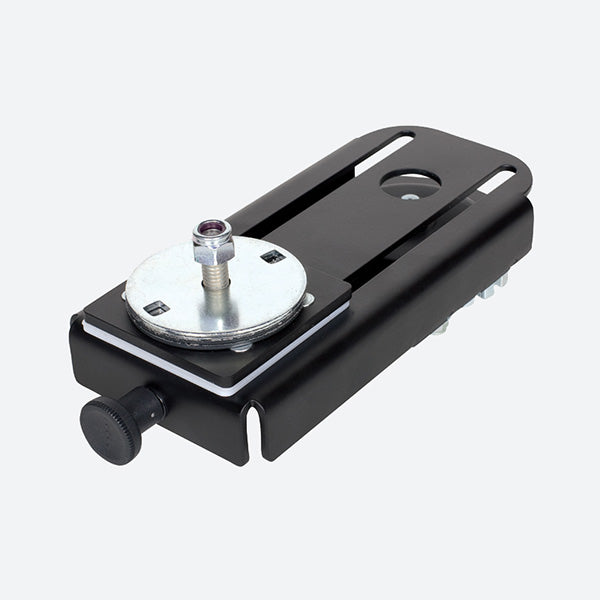

Gamber Johnson 6-in. Locking Slide Arm w 3/8 inch Stud 7160-0514

Gamber Johnson Motion Attachment 7160-0514

Featuring a 3/8 inch stud, the Gamber Johnson 7160-0514 motion attachment is compatible with a clevis or tablet display (sold separately) allowing the unit to be customized to a number of different use case scenarios. The 7160-0514 provides the mounted device with travel up to 5.5 inches from the mounted center of the pole as well as allowing rotation. Able to be mounted on a Gamber Johnson console or passenger side pedestal mount, the 7160-0514 is ideal for small to medium sized vehicle cabins that have limited space but still require the ergonomics of a locking slide arm. Our sales team would be happy to answer questions about the 7160-0514 or provide a free quote for a custom solution, give the Rugged or Die sales department a call at 816-388-0035!

7160-0514 Features

• The entire arm can rotate around 360° with locking points at every 15°.
• To rotate the arm simply pull the front lever out, rotate to desired position and then release the lever.
• Locking slide arm can slide up to 5.5" (14 cm) from the center of the pole.
• Designed for use with the Gamber-Johnson Standard Motion Attachments with a 3/8" hole (item no. 7110-1200 or 7160-0436 - sold separately).
• Can be mounted directly to a flat surface or on any Upper Pole, Complete Pole, Center Pole, Low Profile Bracket or Smiley Face Pattern.
• Heavy gauge steel construction for long-term durability.
• Black powder coat finish for maximum corrosion resistance.

7160-0514 Specifications

Weight

3.63 lbs. / 1.6 kg

Height

2.43 in / 6.2 cm

Width

3.66 in / 9.3 cm

Depth

8.74 in / 22.2 cm

Motion Attachment Included:

No - must order motion attachment (7110-1200 or 7160-0436) separately
