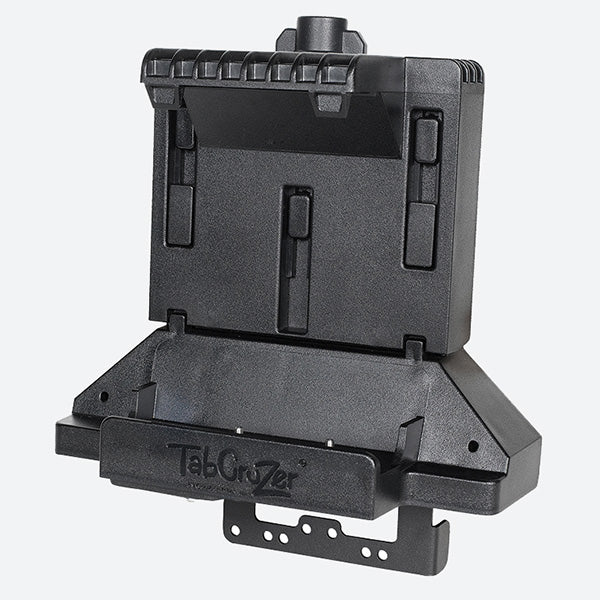

Gamber Johnson Getac T800 Tablet Dock No RF 7160-0565-00

Gamber Johnson Dock 7160-0565-00

Getac T800 Tablet Docking Station with No RF pass through. The docking station features bottom-facing ports making it easy to route cables for any vehicle or forklift mounting application. The dock also accommodates the T800’s expandable SnapBack add-ons to fit comfortably into the docking station, including T800 X-Hand Strap.

7160-0565-00 Features

• Designed for the Getac T800 8.1-inch rugged tablet computers
• Access to all computer function buttons and ports while tablet is docked
• VESA 75mm and Gamber-Johnson mounting patterns located on the back of the dock
• POGO pin style docking connector for easy docking activation
• Alignment pins guide the computer for easy docking and connectivity
• Downward-facing I/O ports, cable strain relief system for easy cable management
• Docking Station design accommodates SnapBack SmartCard & RFID reader and X-Hand Strap (sold separately)
• Push and Turn lock with key for theft deterrence

             -Insert computer then push down and turn lock to close and dock computer

• Composite/aluminum design for reduced weight and durability
• Use External power supply: 90W Lind Auto Adapter (Item No. 15110)

7160-0565-00 Specifications

Weight

2.40 lbs.

Height

9.5"

Width

8.4"

Depth

3.5"

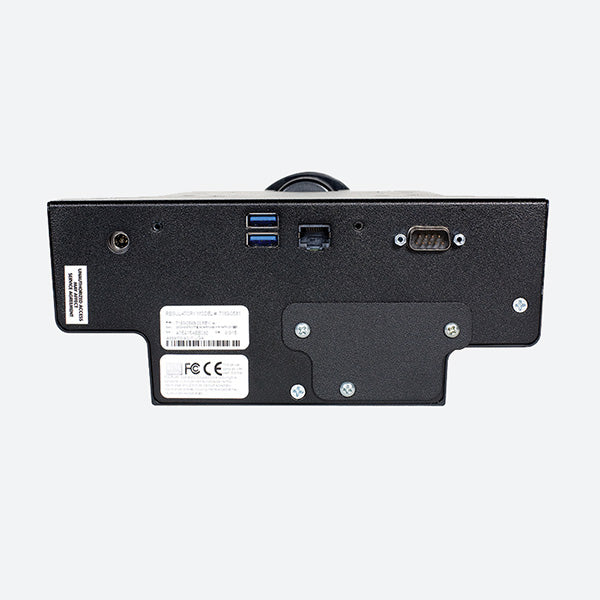

Port Replicators:

Ethernet (1) - RJ45
Fully Powered USB 3.0 (2) - 9 pin
Serial - D-sub 9 pin
Power In - DC

Antenna Pass-through:

No RF

Power Supply:

Not included - must use one of the following external power supplies:

Lind 90W auto power adapter (item no. 15110)
Lind 12-32V material handling isolated power adapter (item no. 16079)
Lind 20-60V material handling isolated power adapter (item no. 16078)
Lind 80V material handling isolated power adapter (item no. 16513)
