Gamber Johnson Getac V110 Cradle TRI RF SMA 7160-0568-03

Gamber Johnson Cradle 7160-0568-03

Most computer mounting cradles only are built to hold the computer securely, while the Gamber Johnson 7160-0568-03 doesn't feature power or port replication, it does include Tri RF. Compatible with the Getac V110 convertible laptop, the 7160-0568-03 has a VESA 75mm and Gamber Johnson mounting pattern on the back allowing it to secure to virtually any motion attachment. The 7160-0568-03 cradle is compatible with the V110 when in laptop or converted into tablet mode. With the included Tri RF pass through, the 7160-0568-03 allows for external antennas to be connected and boost the signal of the V110 such as 4G LTE or GPS. A screen support is included with the 7160-0568-03 to help stabilize the display when the V110 is set in laptop mode. Rugged or Die offers the complete Gamber Johnson and Getac catalogs, if you would like a quote for the 7160-0583-03 or a complete solution including the V110 tablet itself, send your requirements to sales@ruggedordie.com and we will respond within one business day!

Rugged or Die has the entire catalog of Getac laptops and computers available for sale, browse the current V110 models for sale here!

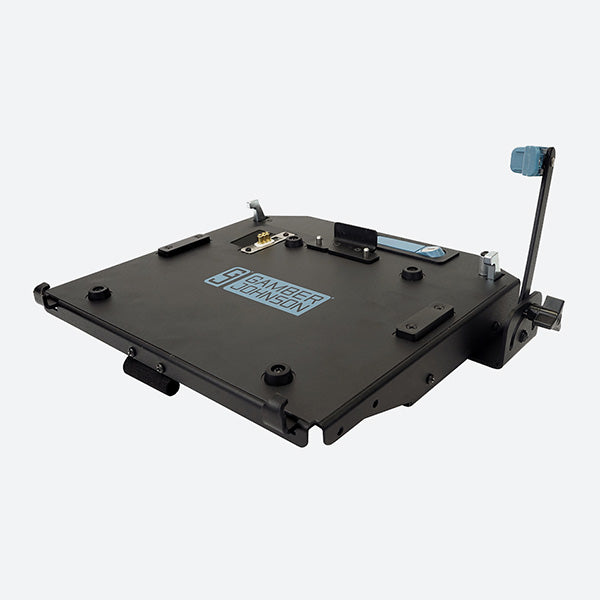

7160-0568-03 Features

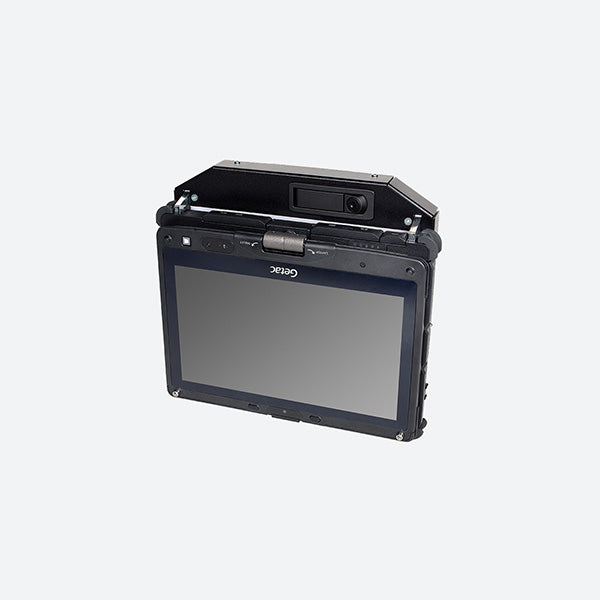

• Cradle can be used in tablet or laptop position.
• Rugged aluminum construction with black powder coat finish for long-term durability.
• Front safety bracket helps align computer.
• Built-in stylus holder.
• Push button latch with keyed lock for theft deterrence:

                  -Push the latch

                  -Insert computer and push latch closed to secure computer

• Use External power supply: Lind Auto Adapter (Item No. 15110).

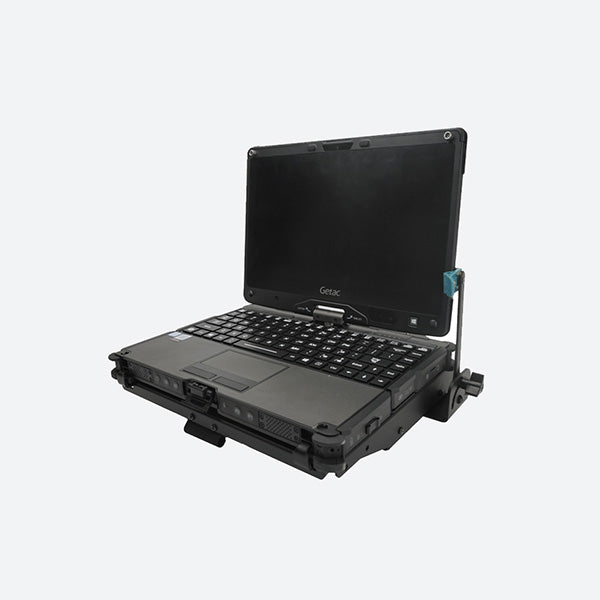

• Screen support is included with the cradle.

7160-0568-03 Specifications

Weight

3.8 lbs. / 1.72 kg

Height

1.38” / 3.5 cm

Width

11.6“ / 29.5 cm

Depth

10.75” / 27.3 cm

Power Supply:

Not included - must use one of the following external power supplies:

Lind 90W auto power adapter (item no. 15110)
Lind 12-32V material handling isolated power adapter (item no. 16079)
Lind 20-60V material handling isolated power adapter (item no. 16078)
Lind 80V material handling isolated power adapter (item no. 16513)

Testing Specifications:

The V110 cradle is designed and tested to rugged environmental standards and has passed:
 MIL-STD-810G shock/vibration
RoHS
SAE Standard J1455 crash test

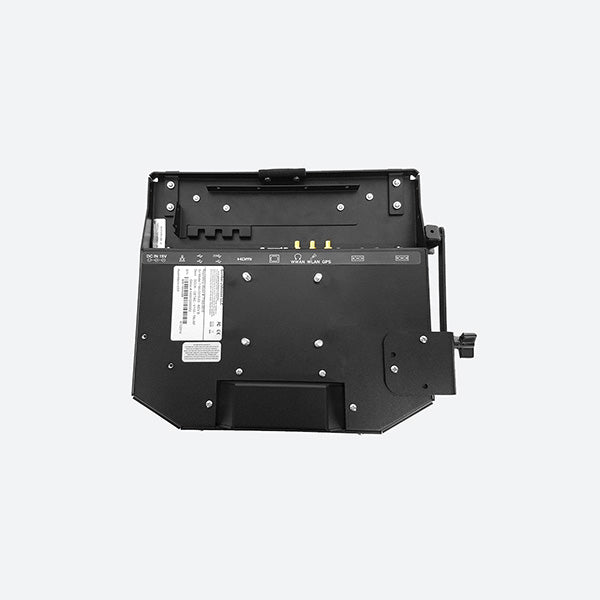

Antenna Pass-through:

Tri RF
