Gamber Johnson TOUGHBOOK 54/55 Full Port Replication Dock w Dual RF 7160-0577-02

Gamber Johnson Dock 7160-0577-02

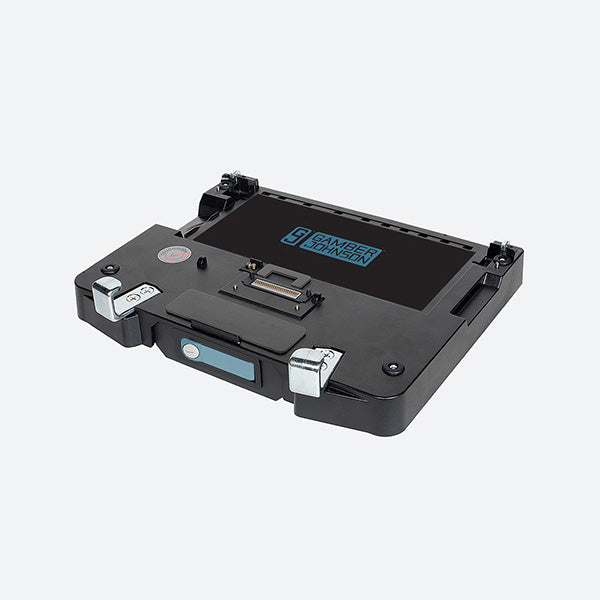

Gamber Johnson docking station designed for Panasonic TOUGHBOOK CF-54 and FZ-55 Laptops with Full Port replication and Dual RF pass through. This docking station features dual antenna pass-through and has full port replication including Ethernet; Serial, HDMI, VGA, and powered USB ports.

7160-0577-02 Features

• Designed to MIL-STD 810G test procedures and complies with FCC Class A standards

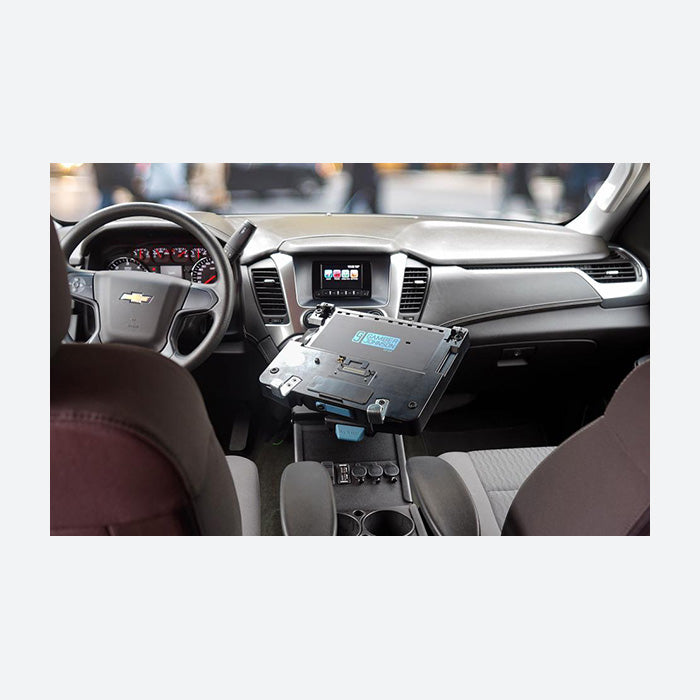

• Small footprint - designed to maximize available space inside of vehicle
• Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
• Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Front safety bracket and rear corners ensure proper alignment and docking connectivity
• Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
• This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
• Special access area for smart card reader makes it easy to insert and eject card
• Push button latch with keyed lock for theft deterrence:

                 -Push the latch to release the docking connector

                 -Insert computer and push latch closed to dock computer

• Can be used with Motion Attachments with the VESA 75mm hole pattern only
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Antenna switch position:

                 -Switch set toward outside of dock: Uses exterior antenna

                 -Switch set to inside of the dock: Uses laptop antenna

7160-0577-02 Specifications

Weight

5.50 lbs. / 2.5 kg

Height

3.50 in / 8.9 cm

Width

13.48 in / 34.2 cm

Depth

11.85 in / 30.1 cm

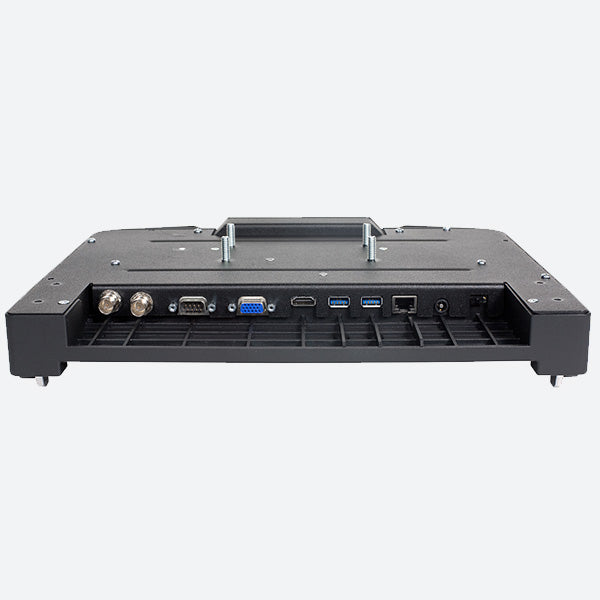

Port Replicators:

Ethernet RJ45
Fully Powered USB 3.0 (2) - 9 pin
VGA D-sub 15 pin
HDMI 19 pin
Serial D-sub 9 pin
Antenna Pass-Through (2) - TNC
Input Voltage 15.6 V DC
RF Switch

Antenna Pass-through:

Dual RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
LIND 11-16VDC Auto Power with cigarette lighter connector (7300-0462)
