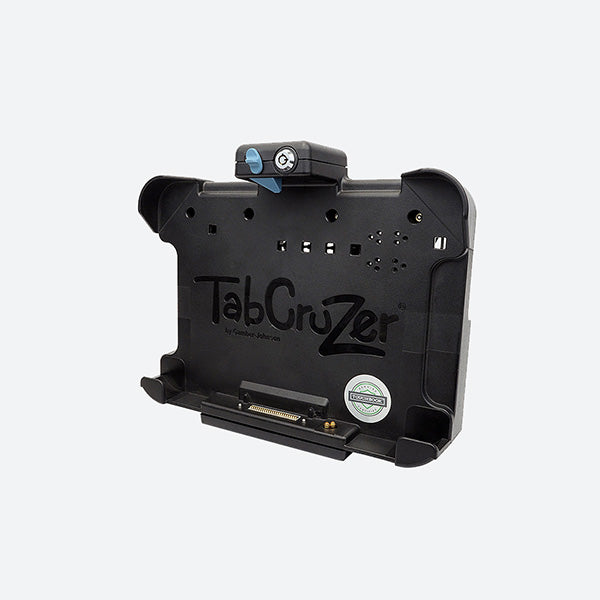

Gamber Johnson Panasonic FZ-G1 THIN Full Port Replication Dock w Dual RF 7160-0595-02

Gamber Johnson Dock 7160-0595-02

The Gamber Johnson FZ-G1 7160-0595-02 dock comes with advanced port replication,  power and dual RF pass through. Featuring a VESA 75mm mounting pattern, the 7160-0595-02 can mount to any Gamber Johnson motion attachment. The 7160-0595-02 includes both dual RF pass through as well as full port replication. Full port replication on the dock includes ethernet, HDMI, serial, USB 3.0 and VGA ports while the RF pass through allows for external antennas to be connected to boost the FZ-G1 radio signals such as 4G LTE.  If you need assistance with the 7160-0595-02 or would like help customizing it to be a complete mounting solution or even a quote for the TOUGHBOOK itself just email your requirements to sales@ruggedordie.com and we will respond within one business day!

7160-0595-02 Features

  • Compatible with the Panasonic Toughpad FZ-G1 tablet computers with small bumper guards
  • Panasonic certified electronics
  • Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
  • Upward-facing I/O ports, integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • Dual RF TNC

Kit Includes:

  • Panasonic FZ-G1 Docking Station
  • Mounting Hardware
  • Installation Instructions

7160-0595-02 Specifications

Weight

2.5 lbs. / 1.13 kg

Height

9.33" / 23.7 cm

Width

11.22" / 28.5 cm

Depth

2.56" / 6.5 cm

Port Replicators:

Panasonic certified electronics (1)
Ethernet - RJ45 (1)
Serial - D-sub 9-pin (1)
VGA - D-sub 9 pin (1)
HDMI - 19 pin (2)
USB 3.0 (900mA) - 9 pin
Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch

Antenna Pass-through:

Dual RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)
