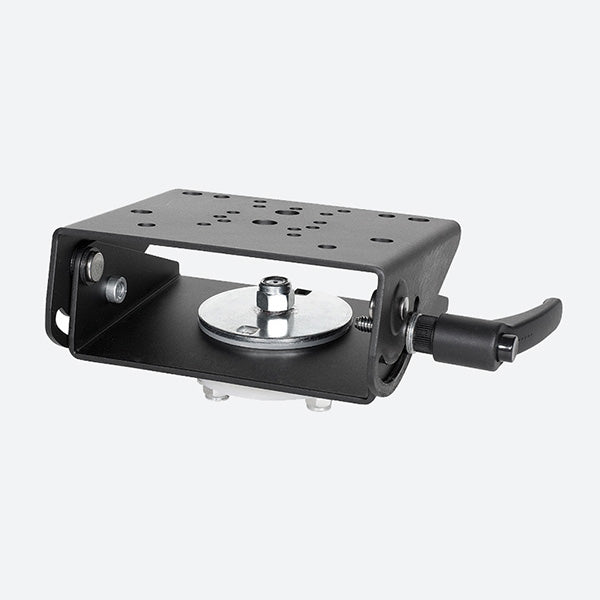

Gamber Johnson Standard Clevis 7160-0750

Gamber Johnson Motion Attachment 7160-0750

The Gamber Johnson Clevis motion attachment family comes in varied shapes and sizes designed to encompass any equipment mounting location or compatibility. As the standard clevis, the 7160-0750 is a good all around solution for a number of vehicle and device mounting requirements. The 7160-0750 Clevis features the standard VESA 75mm, Gamber Johnson, NEC and AMPs hole patterns on the top plate and 3 stud swivel on the bottom plate. Able to tilt up to a full 90 degrees vertical to provide optimized ergonomics, the 7160-0750 can also provide rotation to the solution. Rugged or Die sales reps can help with any questions about the 7160-0750 or create a custom quote, email your requirements to sales@ruggedordie.com and we will respond within 1 business day.

7160-0750 Features

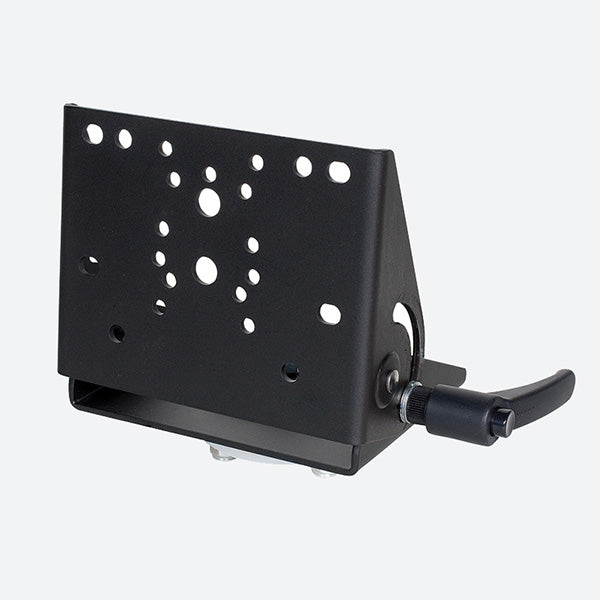

• New clevis works with the follow hole patterns:
  • VESA 75mm
  • Gamber-Johnson 2x4
  • NEC
  • AMPS

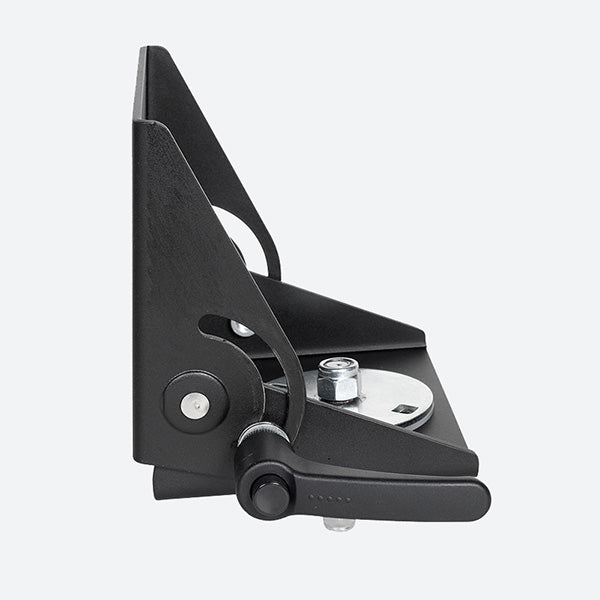

• Tilt capabilities:
  • 90° forward allows for tablets to be easily mounted
  • 26° aft movement
  • Riveted design allows for smoother tilt movement
• Swivel capabilities:
  • 360°
• Easier installation:
  • Fixed mounting studs

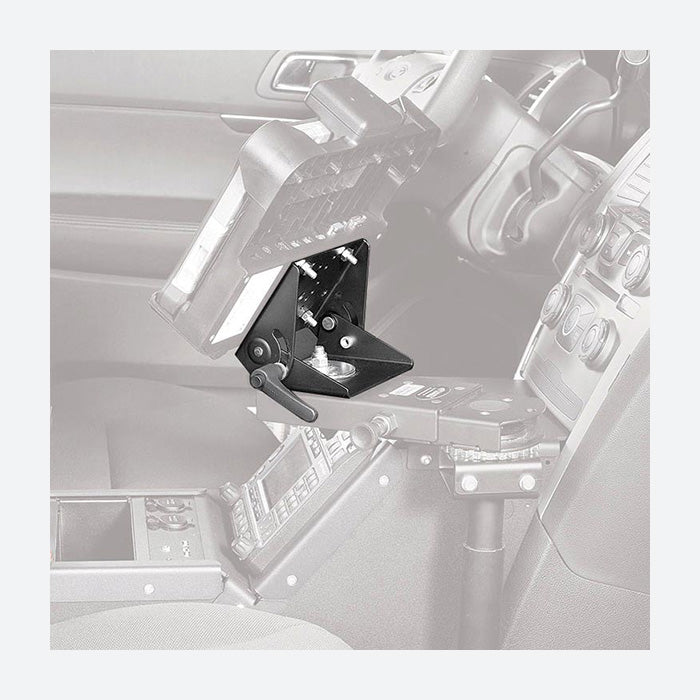

• Clevis can mount on any Gamber-Johnson console box, pole or flat, rigid surface and will provide 360° swivel function for improved ergonomic positioning within the vehicle
• Rear fastening stud allows the Clevis to be locked in a fixed position
• Lever provides a secure clamping force when tilted
• Heavy gauge steel construction for long-term durability
• Black powder coat finish for maximum corrosion resistance

7160-0750 Specifications

Weight

2.20 lbs. / 1.0 kg

Height

2.2" / 5.5 cm

Width

8.2" / 20.8 cm

Depth

4.4" / 11.2 cm
