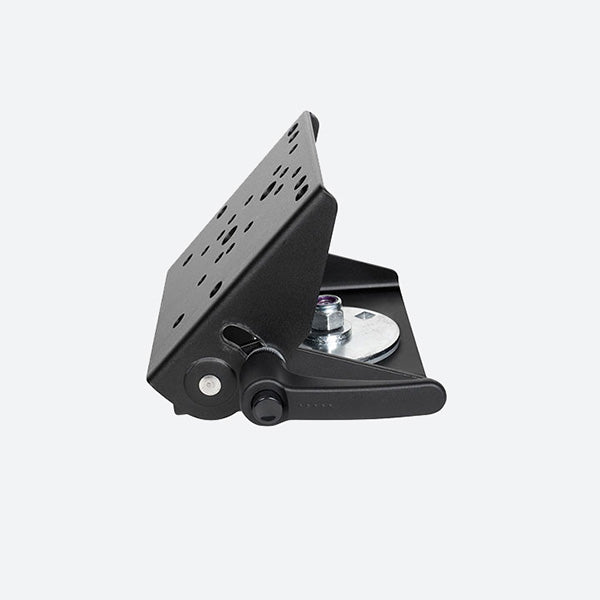

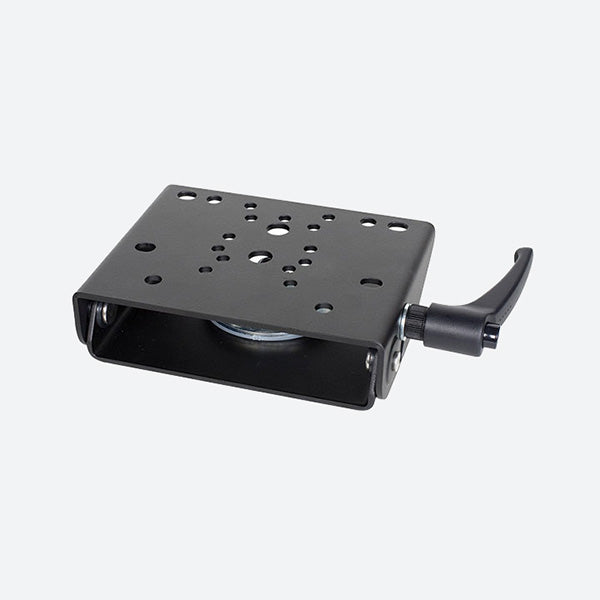

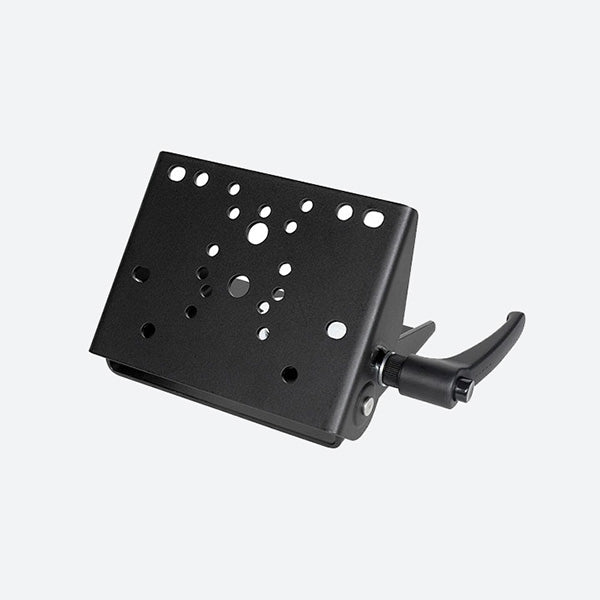

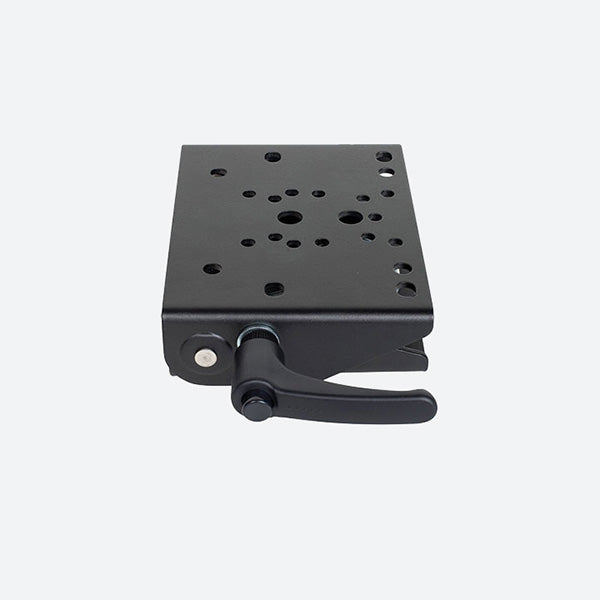

Gamber Johnson Short Clevis Tilt/Swivel Motion Attachment 7160-0775

Gamber Johnson Motion Attachment 7160-0775

The Gamber Johnson Clevis motion attachment family comes in varied shapes and sizes designed to encompass any equipment mounting location or compatibility. The 7160-0775 Clevis features the standard VESA 75mm and Gamber Johnson hole patterns on the top plate and 3 stud swivel on the bottom plate. The short Clevis can tilt up to 45 degrees forward to provide optimized ergonomics and the size of the mount allows for a low profile mounting solution. Rugged or Die sales reps can help with any questions about the 7160-0775 or create a custom quote, email your requirements to sales@ruggedordie.com and we will respond within 1 business day.

7160-0775 Features

• New clevis works with the follow hole patterns:
  • VESA 75mm
  • Gamber-Johnson 2x4
  • NEC
  • AMPS
• Tilt capabilities:
  • 45° forward
  • Riveted design allows for smoother tilt movement
• Swivel capabilities:
  • 360°
• Easier installation:
• Fixed mounting studs
• Clevis can mount on any Gamber-Johnson console box, pole or flat, rigid surface and will provide 360° swivel function for improved ergonomic positioning within the vehicle
• Rear fastening stud allows the Clevis to be locked in a fixed position
• Lever provides a secure clamping force when tilted
• Heavy gauge steel construction for long-term durability
• Black powder coat finish for maximum corrosion resistance

7160-0775 Specifications

Weight

1.47 in / 3.73 cm

Height

7.23 in / 18.36 cm

Width

4.05 in / 10.29 cm

Depth

2.1 lbs / 0.95 kg
