Gamber Johnson Tall Clevis Motion Attachment: VESA 75 Gamber Johnson Hold Pattern 7160-0776

Gamber Johnson Motion Attachment 7160-0776

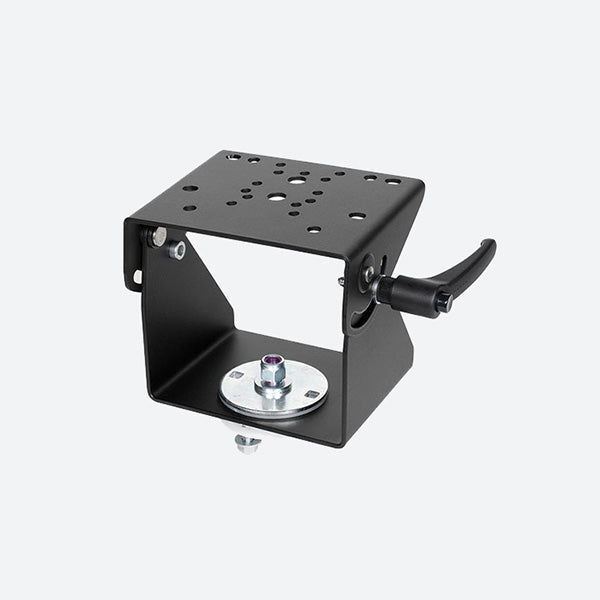

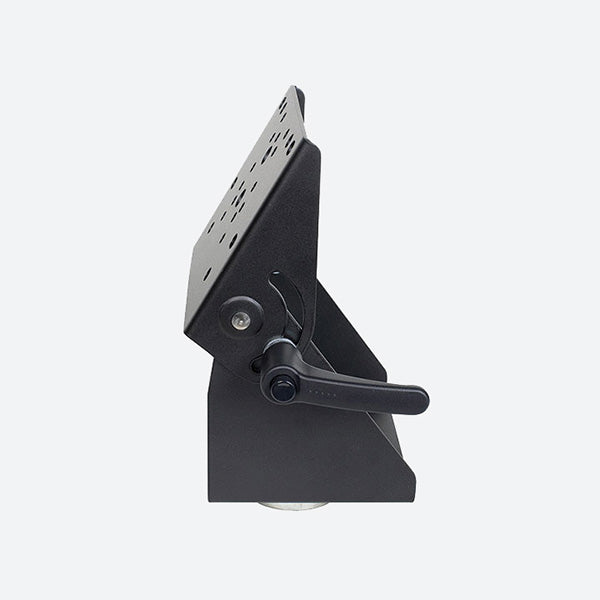

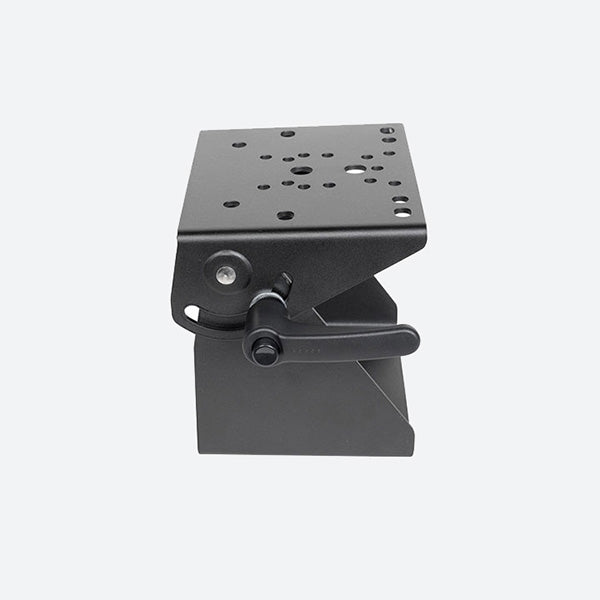

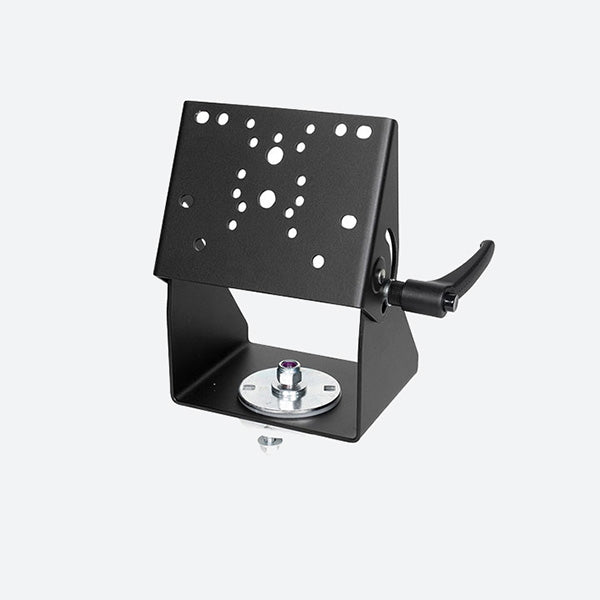

The Gamber Johnson Clevis motion attachment family comes in varied shapes and sizes designed to encompass any equipment mounting location or compatibility. The 7160-0776 Clevis features the standard VESA 75mm, Gamber Johnson, NEC and AMPs hole patterns on the top plate and 3 stud swivel on the bottom plate. The tall Clevis can tilt up to a full 90 degrees vertical to provide optimized ergonomics and the tall nature of the mount allows for larger tablets or a more raised mounting solution. Rugged or Die sales reps can help with any questions about the 7160-0776 or create a custom quote, email your requirements to sales@ruggedordie.com and we will respond within 1 business day.

7160-0776 Features

• New clevis works with the follow hole patterns: VESA 75mm, Gamber-Johnson 2x4, NEC, AMPS
• Tilt capabilities:
  • 90° forward allows for tablets to be easily mounted
  • 30° aft movement
  • Riveted design allows for smoother tilt movement
• Swivel capabilities: 360°
• Easier installation:
  • Fixed mounting studs
• Clevis can mount on any Gamber-Johnson console box, pole or flat, rigid surface and will provide 360° swivel function for improved ergonomic positioning within the vehicle
• Rear fastening stud allows the Clevis to be locked in a fixed position
• Lever provides a secure clamping force when tilted
• Heavy gauge steel construction for long-term durability
• Black powder coat finish for maximum corrosion resistance

7160-0776 Specifications

Weight

3.0 lbs. / 1.4 kg

Height

5.71" / 14.5 cm

Width

7.23" / 18.4 cm

Depth

4.40" / 11.2 cm
