Gamber Johnson Short Clevis VESA 75mm Gamber Johnson Hole Pattern w 3/8 in. Hole 7160-0783

Gamber Johnson Motion Attachment 7160-0783

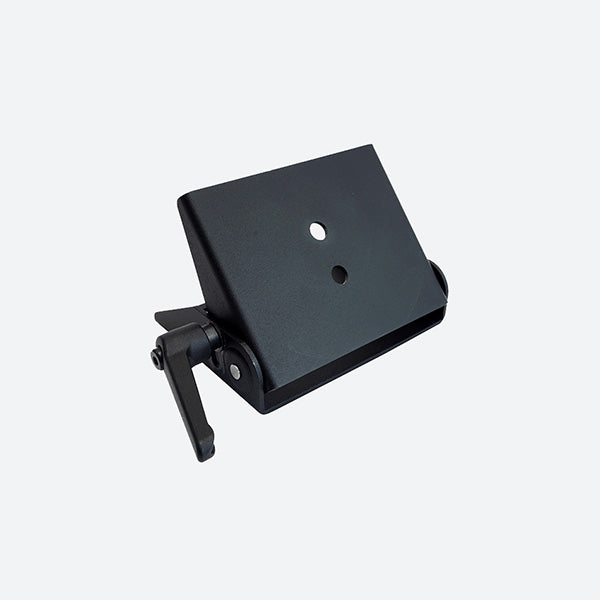

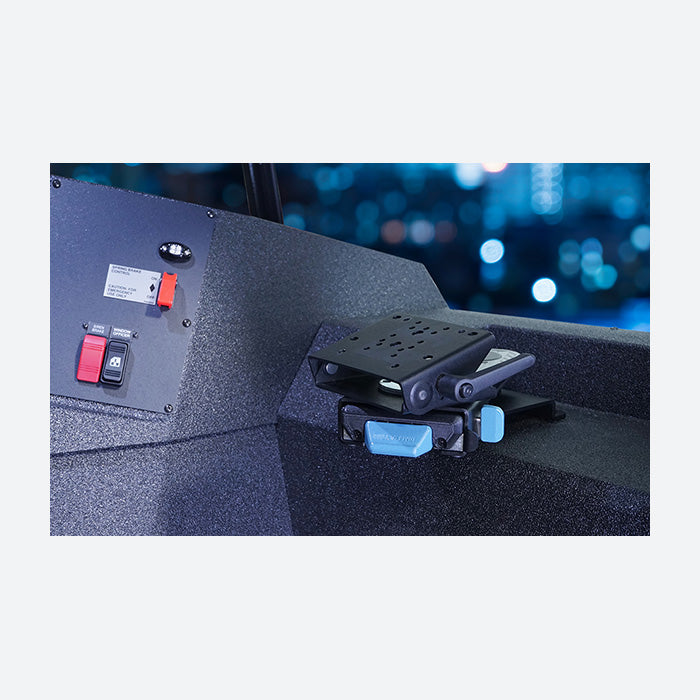

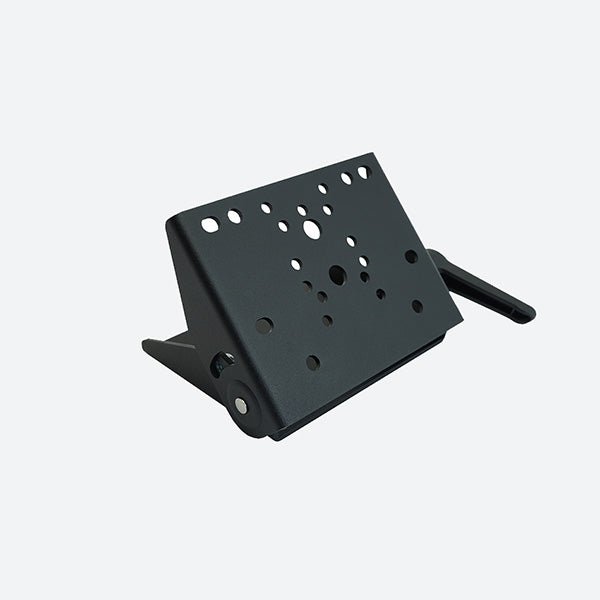

The Gamber Johnson Clevis motion attachment family comes in varied shapes and sizes designed to encompass any equipment mounting location or compatibility. The 7160-0783 Clevis features the standard VESA 75mm and Gamber Johnson hole pattern on the top plate and two 3/8 inch holes on the bottom plate. The 3/8 inch holes allow compatibility with 3/8 inch hardware for fixed or swivel enabled mounting. The Clevis can tilt up to 45 degrees to provide optimized ergonomics while the low profile footprint of the 7160-0783 allows for minimalist mounting. Rugged or Die sales reps can help with any questions about the 7160-0783 or create a custom quote, email your requirements to sales@ruggedordie.com and we will respond within 1 business day.

7160-0783 Features

• Contains multiple hole patterns to accommodate a wide variety of devices (i.e. keyboards, docking stations)
• Two 3/8" holes to use any 3/8" hardware for mounting; fixed or swivel

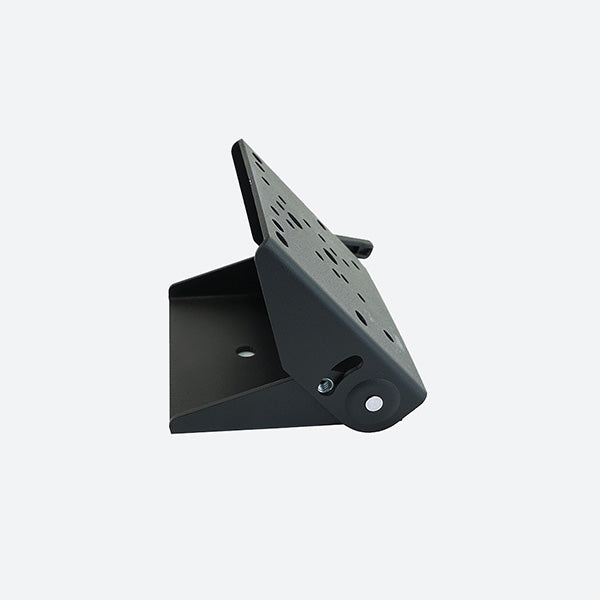

• Clevis tilts from 0-45° giving a wide range of adjustment for typing

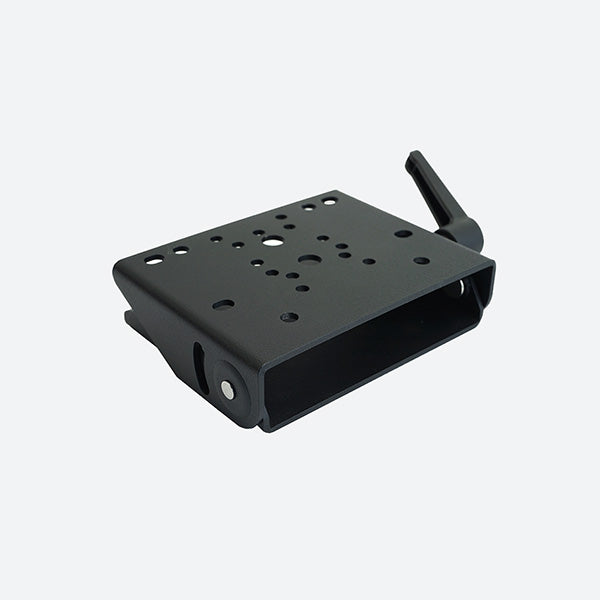

• Short height of 1" keeps the device low to minimize footprint
• Smooth tilt when handle is loosened

7160-0783 Specifications

Weight

1.8 lbs / 0.82 kg

Height

1 in / 2.54 cm

Width

7.23 in / 18.36 cm

Depth

4.05 in / 10.29 cm

Compatibility:

• Mounts to any 3/8" threaded stud (no hardware provided with clevis)
