Gamber Johnson Datamax ONeil MP Compact 4 Mark II Printer Bracket 7160-0785

Gamber Johnson Printer Mount 7160-0785

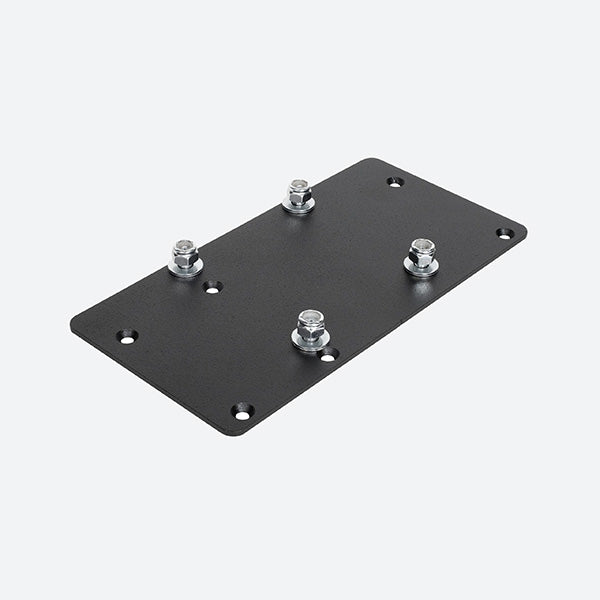

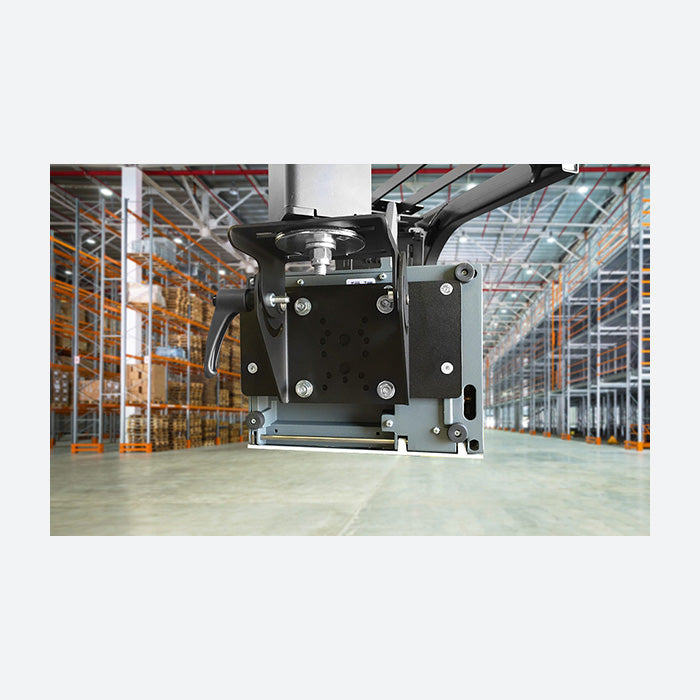

Built to mount the Datamax ONeil MP Compact 4 Mark II Printer, the Gamber Johnson 7160-0785 bracket is an easy to install and durable solution. Providing a simple stud mount solution, the 7160-0785 attaches to the back of the Mark II printer and then can fasten to any motion attachment or mount with a VESA 75mm mounting hole pattern. The printer mount can be oriented both vertically and horizontally and allows access to all controls and interfaces on the printer itself. A Rugged or Die sales rep would be happy to answer any and all questions about the 7160-0785, give us a call at 816-388-0035

7160-0785 Features

• Printer bracket mounts the Compact 4 Mark II Printer to Gamber-Johnson Clam Shells
• Bracket does not impede with label feed or printer ports
• Orients printer vertically and horizontally

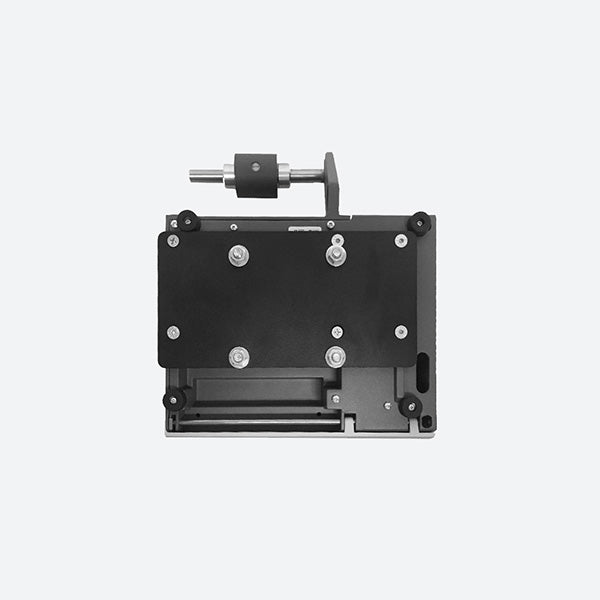

• Bracket fastens to the printer using the PEM insert on the printer
• Bracket fastens to the clam shells using the 75MM VESA hole pattern (Clam Shell mounts sold separately)
• Can be mounted directly to any Clam Shell (Item No. 7160-0357, 7160-0370, 7160-0371)

7160-0785 Specifications

Weight

1.0 lbs. / 0.45 kg

Height

0.50" / 1.3 cm

Width

5.0" / 12.7 cm

Depth

4.0" / 10.2 cm
