Gamber Johnson Getac S410 Dock TRI RF SMA 7160-0790-03

Gamber Johnson Dock 7160-0790-03

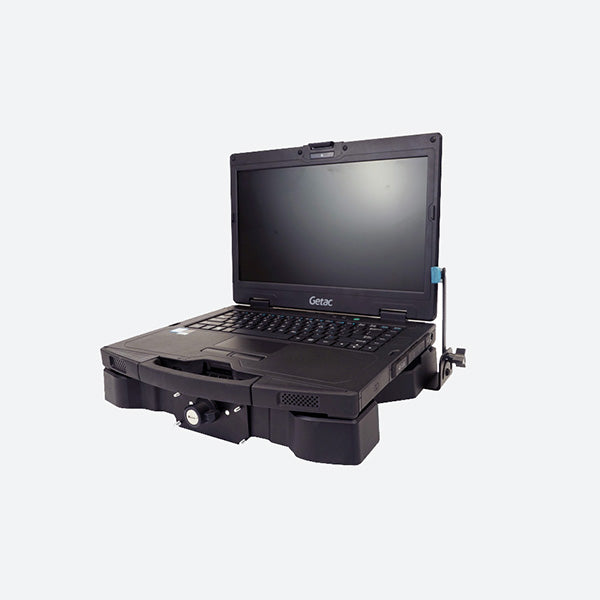

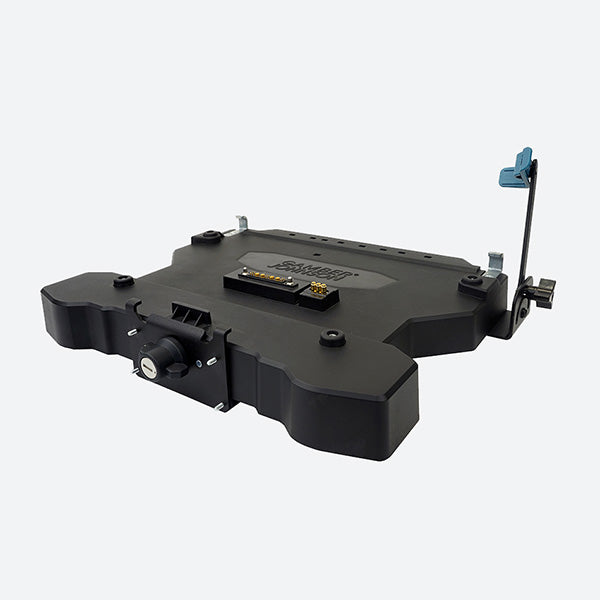

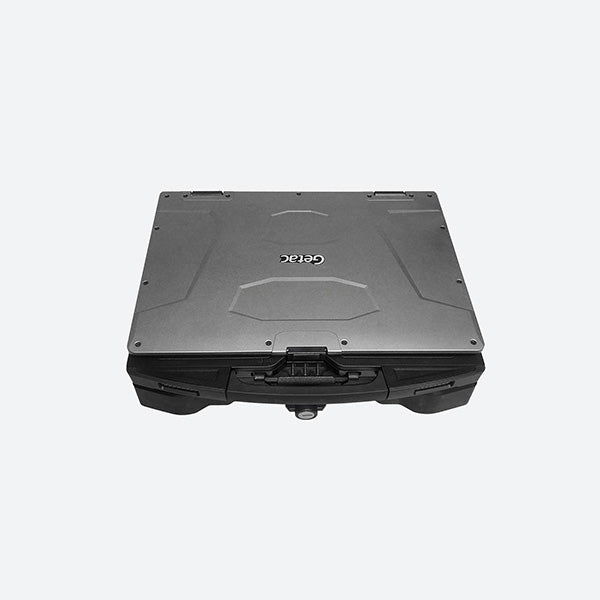

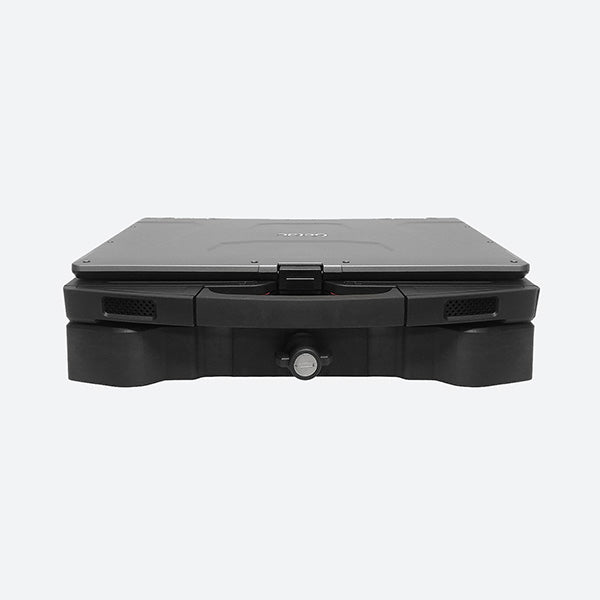

Designed exclusively for the Getac S410 Laptop, the Gamber Johnson docking station 7160-0790-03 features full port and TRI RF pass through with SMA connectors. The full port replication on the 7160-0790-03 provides a wide variety of ports including ethernet, HDMI, power input, microphone/speaker, serial, quantity 3 USB 2.0, USB 3.0 and VGA ports. The ports on the 7160-0790-03 dock save wear and tear on the ports of the docked Getac S410 laptop while the Tri RF pass through allows for external antennas to be connected to boost the laptops signals such as 4G LTE or GPS. Like any vehicle dock, the S410 dock requires mounting equipment to be turned into a complete vehicle mounting solution, if you email our sales team at sales@ruggedordie.com we would be happy to assemble a custom mounting solution for your vehicle! Rugged or Die is also pleased to sell all current Getac products, browse S410 laptops available to order here!

7160-0790-03 Features

• Small footprint designed to maximize available space
• Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system
• Rear hooks and guide pins ensure proper alignment and docking connectivity
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Plate draws back into docking station when the computer is docked
• Docking station designed to accommodate optional VGA attachments
• Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Screen support is included with the dock
• Optional power supply bracket (7120-0736) to attach Getac power supply to the bottom of the dock (sold separately)
• External power supply sold separately

7160-0790-03 Specifications

Weight

4.47 lbs. / 2.03 kg

Height

12.39 in / 31.47 cm

Width

13.84 / 35.15 cm

Depth

2.90 in / 7.37 cm

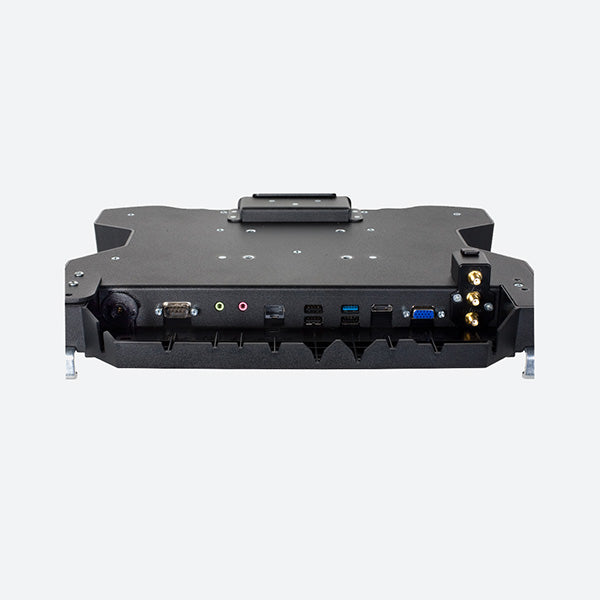

Port Replicators:

Ethernet - RJ45
USB 3.0; 9 Pin (1)
USB 2.0; 4 Pin (3)
HDMI 19 Pin
Serial; D-sub; 9 Pin
Input voltage - 19 VDC
VGA D-sub; 15 Pin
Microphone/speaker
RF (SMA) antenna pass-through for GPS; WLAN and WWAN (optional)

Antenna Pass-through:

Tri RF

Power Supply:

Not included - must use external Getac 120W auto power adapter (7300-0471)
