Gamber Johnson Tablet Keyboard Mount Tall Backplate 7160-0799-01

Gamber Johnson Keyboard Mount 7160-0799-01

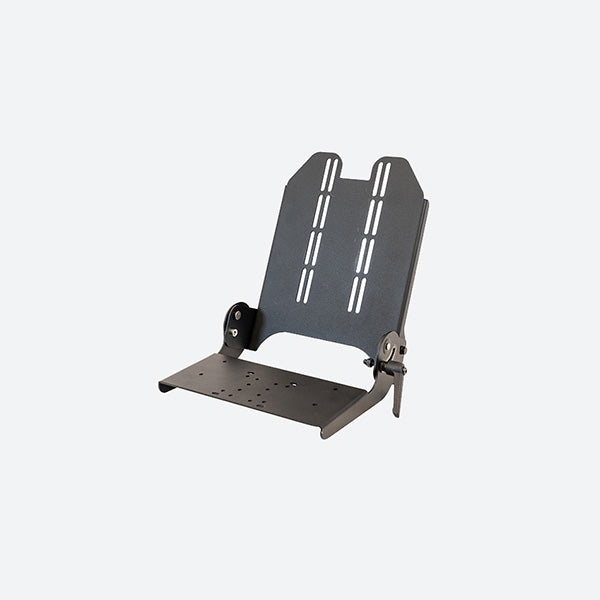

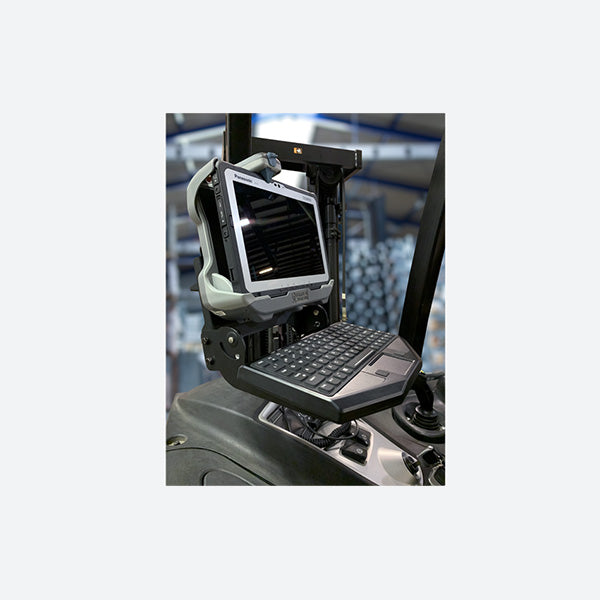

Installing between a rugged tablet dock or cradle and the motion attachment, the Gamber Johnson 7160-0799-01 is a a great way to add a peripheral keyboard to a mounted equipment solution. Featuring slotted mounting holes, the 7160-0799-01 is compatible with VESA 75mm and 100mm hole patterns and can adjust to the user preferred keyboard keyboard height. With a tilting tray that has a number of different mounting patterns included, the 7160-0799-01 can accommodate any virtually any keyboard or keyboard quick release platform. Ideal for a material handling environment, the 7160-0799-01 keyboard tray is versatile and can be used in any scenario where a tablet needs the added functionality of a keyboard. A Rugged or Die sales team member can help provide a custom quote for the 7160-0799-01 or a complete equipment solution, send your requirements to sales@ruggedordie.com and we will respond within 1 business day!

7160-0799-01 Features

• Attaches to the back of any Gamber-Johnson tablet docking stations and cradles using the VESA 75mm  or Vesa 100mm hole patterns
• Tension handle secures the keyboard to the tray and allows the keyboard to be rotated to an ergonomic position and locked into place
• Keyboard can be tilted down 30° for working or 60° vertically when stowed, adjustable handle secures keyboard at the desired position
• Heavy gauge steel  construction for long-term durability
• Black powder coat finish for maximum corrosion resistance

Four (4) mounting hole patterns to attach keyboard:

• AMPS (30mm x 38mm) - 2 mounting locations
• 2.5 x 2.5 - 2 mounting locations
• VESA 75mm
• 2 x 7 Honeywell

7160-0799-01 Specifications

Weight

5.5 lbs / 2.49 kg

Height

14.75 in / 37.47 cm

Width

9.5 in / 24.13 cm

Depth

12 in / 30.48 cm
