Gamber Johnson Zebra ZQ630/QLN420 Printer Bracket 7160-0817

Gamber Johnson Printer Mount 7160-0817

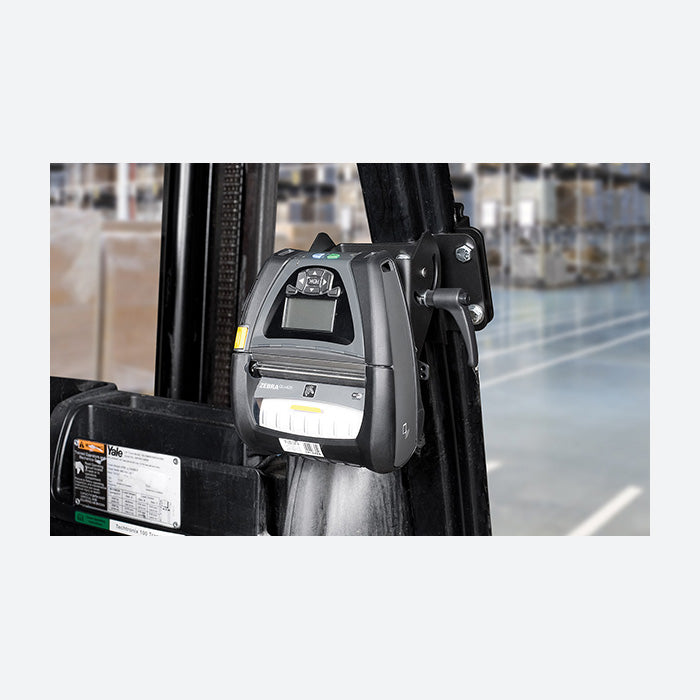

Ideal for a material handling environment, the Gamber Johnson 7160-0817 can mount a Zebra ZQ630 or QLN420 printer on any Gamber Johnson or competitor clam shell motion attachment with an AMPs mounting pattern. Able to position the printer horizontally or vertically, the 7160-0817 can adapt to a number of mounting locations or requirements. While mounted, the user will have full access to the Zebra printer controls and paper feed without having to undock the printer. The 7160-0817 can be purchased directly on ruggedordie.com or our sales team can help craft a complete material handling equipment solutions, give us a call at 816-388-0035

7160-0817 Features

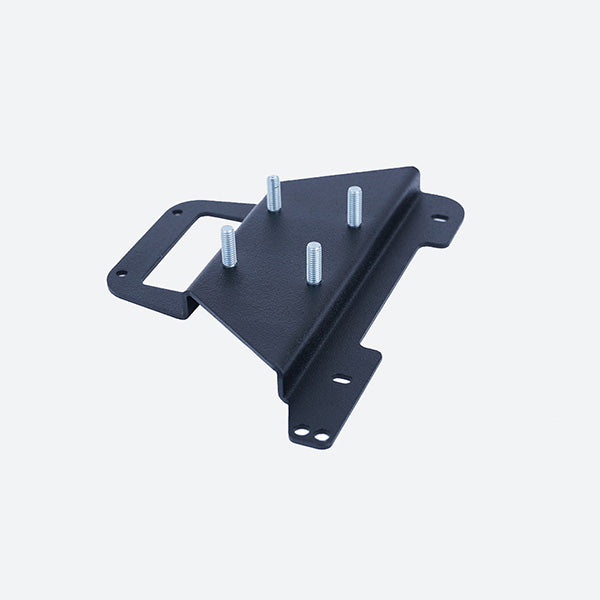

• Printer bracket mounts to Gamber-Johnson Clam Shell with 3/8” studs (included)
• Bracket fastens to the printer using the PEM inserts on the printer
• Orients printer vertically or horizontally
• Bracket does not impede paper feed, printer ports or power connections
• Mounts to numerous Gamber-Johnson and competitor products utilizing the universal AMPs pattern
• Compatible with Zebra P/N: P1050667-140 Battery Eliminator Dummy Battery Pack and Power Supply

7160-0817 Specifications

Weight

0.5 lbs / 0.23 kg

Height

1.0 in / 2.54 cm

Width

6.0 in / 15.24

Depth

4.0 in / 10.16
