Gamber Johnson 2017+ Chevrolet Trax Vehicle Base 7160-0855

Gamber Johnson Vehicle Base 7160-0855

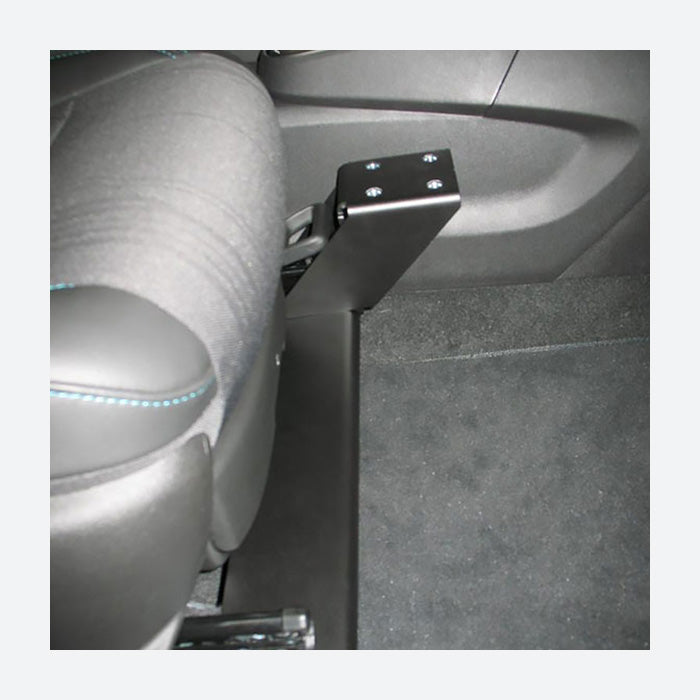

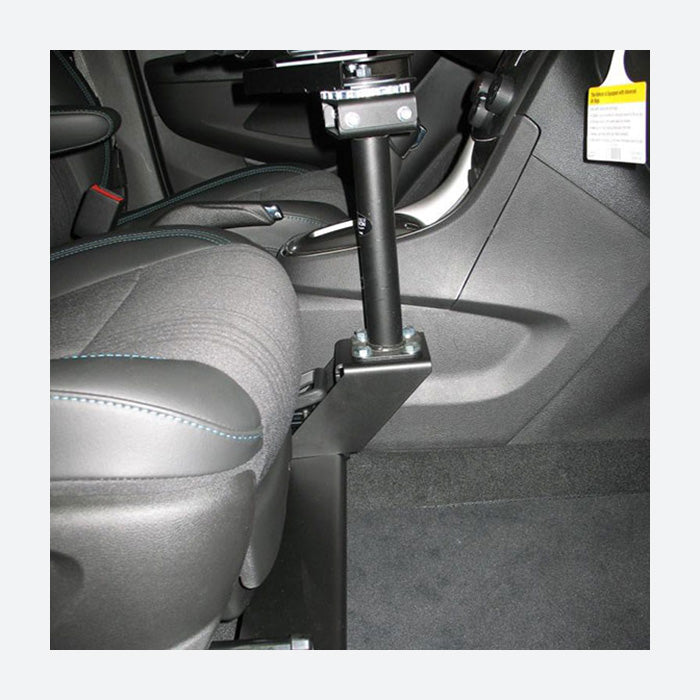

Installing under the passenger side seat bolts on a 2017+ Chevrolet Trax the Gamber Johnson 7160-0855 Vehicle Base can support a computer pedestal mounting system without requiring drilling or advanced installation skills. With a DS-STEP welded into the base, the 7160-0855 is built to ensure that the computer mount clears the passenger seat and doesn't interfere with OEM equipment. Additional equipment is required to turn the vehicle base into a complete computer mounting solution, allow a Rugged or Die sales rep to help assemble a complete list of suggested equipment. Email your list of requirements to us at sales@ruggedordie.com and we will happily respond within one business day!

7160-0855 Features

• DS-STEP built into the base.
• Heavy gauge steel construction for long-term durability.
• Black powder coat finish for maximum corrosion resistance.
• Base attaches to inboard and outboard passenger side seat rails.
• Forward seat movement is affected - little to no movement.
• Support Brace (Item No. 7160-0230) is recommended.
• Base bolts to passenger side seat rails in existing holes. Seat does NOT have to be removed.

7160-0855 Specifications

Weight

7.75 lbs. / 3.4 kg

Height

4.80" / 12.20 cm

Width

18.50" / 46.99 cm

Depth

8.75" / 22.23 cm

Vehicle Compatibility:

• Chevrolet Trax - 2017+
• Seat Configurations: Bucket (Does not work with electric seats)
