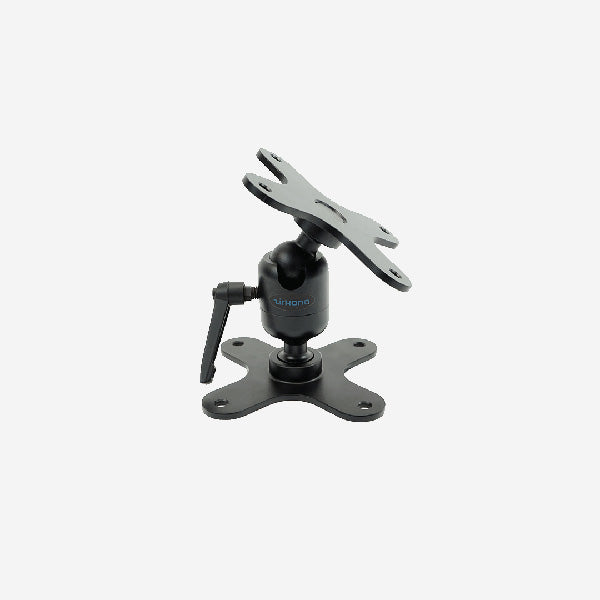

Gamber Johnson Zirkona Medium Joiner w Two VESA 75mm Mounting Plates 7160-0865

Gamber Johnson Full Mount 7160-0865

As a low profile mount, the Gamber Johnson 7160-0865 is ideal for small device installation. Featuring two VESA 75mm mounting plates, the 7160-0865 can install on virtually any surface or mount and is compatible with most docks and cradles. The included Zirkona medium joiner can hold a device weight of 6 lbs in a vibrating environment or up to 33 lbs in a static environment. The versatility of the 7160-0865 makes it ideal for point of sale tablet mounting, small device material handling installation and use and many other applications! The Rugged or Die sales team would be happy to answer any questions about the 7160-0865, just call us at 816-388-0035!

7160-0865 Features

• Maximum weight limit: 6.0 lbs. (2.8 kg) in a vibration/mobile environment or 33 lbs. (15 kg) in a static/no vibration environment
• Anodized aluminum with black finish
• Black powder coat finish for maximum corrosion resistance
• All axes range of motion in X axis (left/right), Y axis (front/back) and Z axis (up/down)
• Quick adjust handle for easy adjustment to position device

7160-0865 Specifications

Weight

0.80 lbs. / 0.36 kg

Height

5.75 in / 14.61 cm

Width

4.88 in / 12.40 cm

Depth

4.88 in / 12.40 cm

Gamber Johnson recommends use of LOCTITE 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510)

• • Loctite EA 9460
  • Loctite EA 9461
  • Loctite EA 9466
• Mounting Plate Hole Patterns:
  • X- Shaped mounting plate - 75mm VESA hole pattern
