Gamber Johnson Dell Latitude Rugged Laptop Cradle TRI RF 7160-0883-03

Gamber Johnson Cradle 7160-0883-03

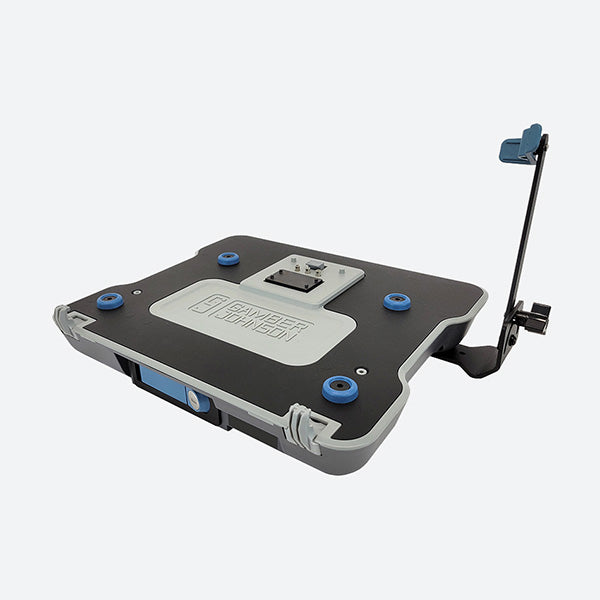

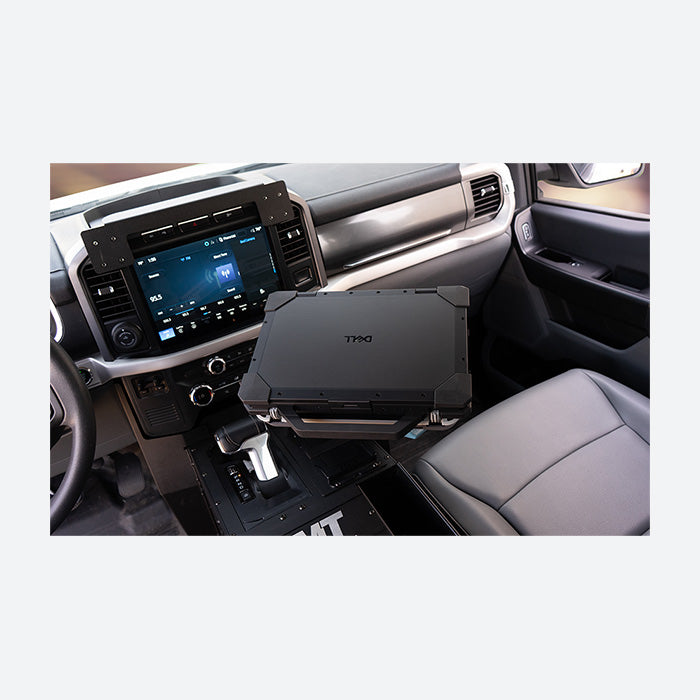

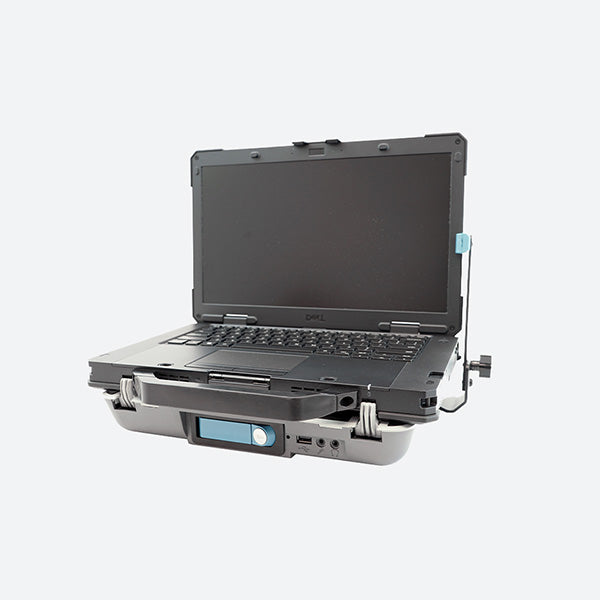

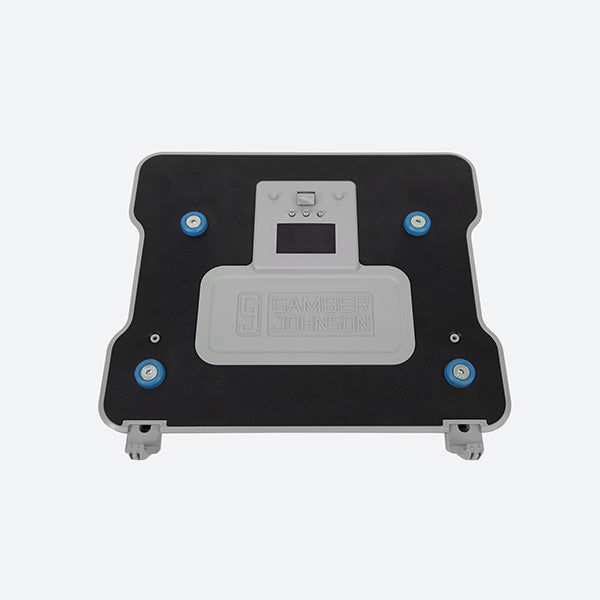

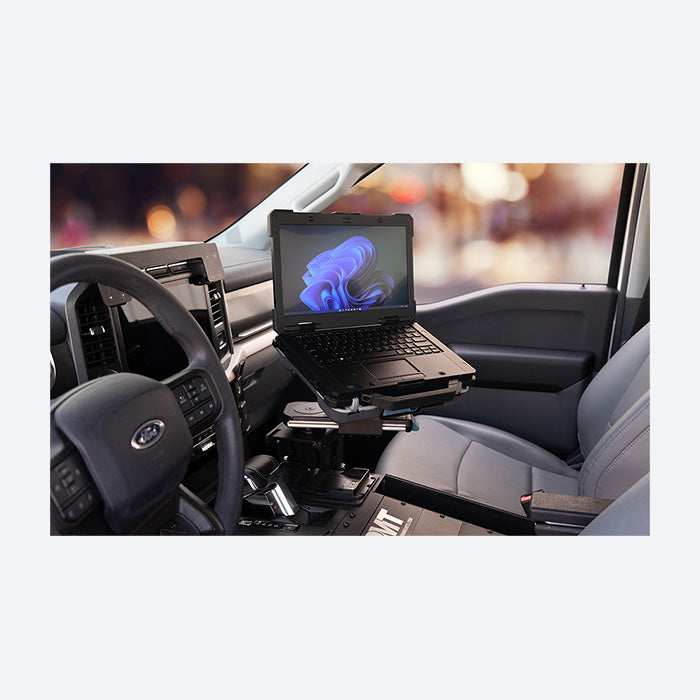

Compatible with a large number of rugged Dell Latitude laptops (see specifications tab for complete compatibility list) the Gamber Johnson 7160-0883-03 cradle comes with tri RF to boost radio signals for the computer. While the 7160-0883-03 cradle doesn't offer power or port replication like a vehicle dock would, the Tri RF connections allow for external antennas to be installed and boost the internal radio signals of the Dell computer. Featuring high visibility touch points, the 7160-0883-03 can latch and unlatch the laptop easily and features a security lock to deter theft. A cradle is a budget friendly way to safely secure a computer into a vehicle mount, if you have questions about the 7160-0883-03 or need help assembling it into a full vehicle equipment solution, let the Rugged or Die sales team help! Email your list of requirements to us at sales@ruggedordie.com and we will happily respond within one business day!

7160-0883-03 Features

  • Access to all tablet control buttons and ports while the tablet is docked
  • Adjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computers
  • Front-facing docking/release latch
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • Tri RF (WWAN,WLAN, GPS) TNC
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern

Kit Includes:

  • Dell Latitude Laptop Cradle
  • Mounting Hardware
  • Installation Instructions

7160-0883-03 Specifications

Weight

5.6 lbs / 2.5 kg

Height

2.36 in / 6.0 cm

Width

Hooks expand from: 10.7 in - 12.85 in / 27.2 cm - 32.6 cm

Depth

12.13 in / 30.8 cm

Model Compatibility:

  • 12 Rugged Extreme Laptop (7204/7214)
  • 13 Pro Rugged Laptop (RA13250)
  • 14 Pro Rugged Laptop (RB14250)
  • 14 Rugged Extreme Laptop (7330)
  • 14 Rugged Extreme Laptop (7404/7414/7424/7330)
  • 14 Rugged Laptop (5404/5414/5420/5424/5430)
  • 14 Rugged Laptop (5430)

Warranty:

  • 3-year Limited Lifetime Warranty
  • Extended Warranty/Gamber Guard Options Available

Power Supply:

Not included - use one of the following power supplies:

  • LIND 90W auto power adapter (Item No. 7300-0468)
  • LIND 12-32 VDC isolated power supply (Item No. 7300-0305)
  • LIND 20-60 VDC isolated power supply (Item No. 7300-0306)
  • LIND 72-110 VDC Isolated Power Adapter (Item No. 7300-0430)

Testing Specifications:

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE
  • SAE J1455 Shock Crash Hazard Test

Antenna Pass-through:

  • Tri RF
$561.04 USD
$561.04 USD
Shipping calculated at checkout.
