Gamber Johnson Universal Sloped Front Console 7160-0896

Gamber Johnson Console Box 7160-0896

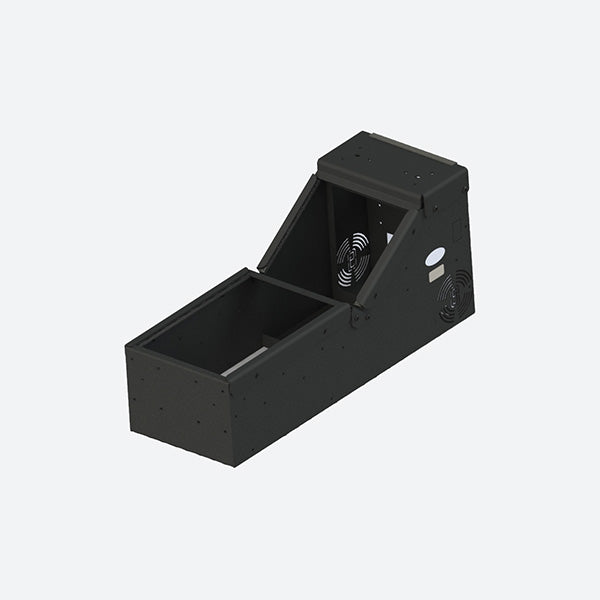

The Gamber Johnson 7160-0896 Console Box is a low profile solution with a longer horizontal storage portion and is designed to work with Gamber's tunnel plate and leg kit system. While leg kits are typically vehicle specific, if a leg kit and tunnel plate can be installed in the vehicle the 7160-0896 should be compatible provided the vehicle has the proper mounting space. The console box provides angled and mounting spaces for accessories or equipment such as radios or siren controls and includes pre-drilled mounting locations for a computer dock motion attachment. While the 7160-0896 console box is considered a universal solution, many mounting locations in vehicles are asymmetrical and should be measured thoroughly to ensure compatibility, send an email with your requirements or questions to sales@ruggedordie.com and our sales team can help ensure you are getting the optimal equipment for your in-vehicle workstation!

7160-0896 Features

• Low profile, universal console with sloped front mounting area.
• Designed to work with top/tunnel plate and leg kits.
• Fully welded construction for long term product life span.
• Front plate of console (underneath dash) has placement for a power distribution block or Lind shut-down timer using pre-configured mounted holes.
• Mounting for armrest - both on back and sides of console box.
• Mounting for the side document pocket (item no. 7160-0464).
• Mounting on both sides of console box for standard mic clips.
• Box ships fully assembled.
• Includes 3 faceplates and 3 filler panels that require assembly.
• Note: Top plate is needed. Mounts to top plate item Gamber Johnson part no. 7160-0085 or 7160-0086.

7160-0896 Specifications

Weight

19.5 lbs. (8.85 kg)

Height

11.00" (27.9 cm)

Width

8.99" (22.8 cm)

Depth

24.75" (62.9 cm)

Mounting Space:

Vertical, angled section:

• Has a mounting space of 7.5" (19.05 cm) to accommodate 1 to 2 full-sized devices.
• Two 12 volt plug knockouts located on passenger side.
• Knock out for the USB/AUX input module (Item no. 16648) or dual USB power port (item no. 15371) located on passenger side.
• Opening on sides of console boxes for audio output devices to be mounted behind.
• Computer can be center mounted either off-set towards the passenger on the "smiley face pattern" or on the 3-bolt pattern closer to the driver for easy articulation access.

Horizontal, low profile section:

• Has a consistent mounting space height of 11.5" (29.21 cm).
• Designed to house full-sized devices and accessories.
