Gamber Johnson Short Universal Sloped Front Console 7160-0899

Gamber Johnson Console Box 7160-0899

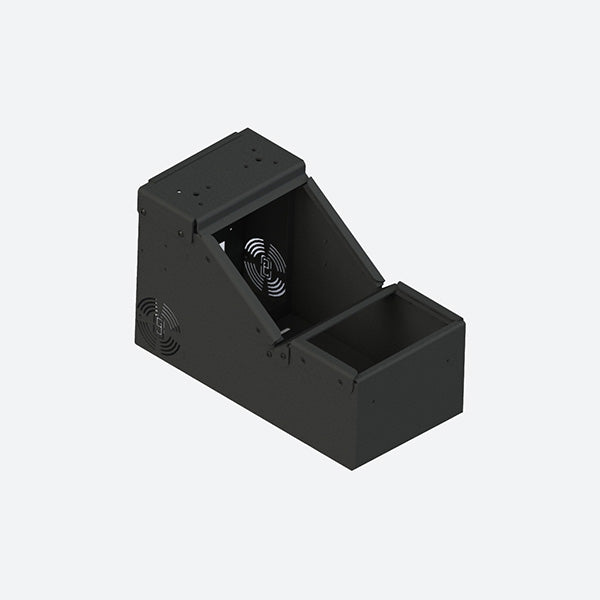

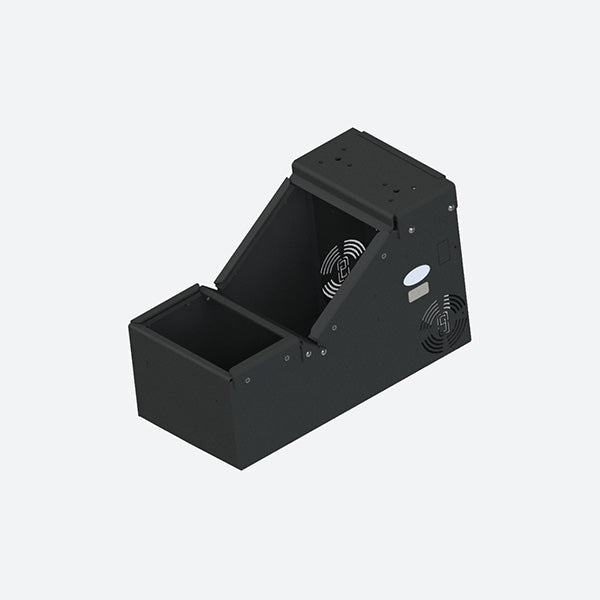

The Gamber Johnson 7160-0899 Console Box is a low profile solution compatible with a large selection of vehicles and is designed to work with Gamber's tunnel plate and leg kit system. While leg kits are typically vehicle specific, if a leg kit and tunnel plate can be installed in the vehicle the 7160-0899 should be compatible with the proper mounting room. The console box provides angled and mounting spaces for accessories or equipment such as radios or siren controls and includes pre-drilled mounting locations for a computer dock motion attachment. While the 7160-0899 console box is considered a universal solution, many mounting locations in vehicles are asymmetrical and should be measured thoroughly to ensure compatibility, send an email with your requirements or questions to sales@ruggedordie.com and our sales team can help ensure you are getting the optimal equipment for your in-vehicle workstation!

7160-0899 Features

• Low profile, universal console with sloped front mounting area.
• Designed to work with Top Plate / Tunnel Plate and Leg Kits.
• Front plate of console (underneath dash) has placement for a Power Distribution Block or Lind Shut-down Timer using pre-configured mounted holes.
• Computer can be center mounted in two locations, off-set towards the passenger on the "smiley face pattern" or on the 3-bolt pattern closer to the driver for easy articulation access.
• Fully welded construction for long term product life span. 3 faceplates and 3 filler panels are included.
• Box will ship fully assembled (except for accessories).
• For armrest with console, will need one of the ARMRESTS for mounting off Top Plate.

7160-0899 Specifications

Weight

15.80 lbs. / 7.17 kg

Height

10.86" / 27.6 cm

Width

8.75" / 22.2 cm

Depth

17.75" / 45.1 cm

Mounting Space:

Vertical, angled section:

• Accommodates 7.5" (19.1 cm) of mounting space to house 1 to 2 full-sized devices.
• Two (2) 12 volt plug knockouts located on passenger side.
• PEMs for mounting mic clip (item no. 7120-0723) on both sides.
• Knockout for the USB/AUX Input Module (item no. 16648) or Dual USB Power Port (item no. 15371), located on passenger side.
• Side vented openings for air flow or mounting a speaker inside the console box.

Horizontal, low profile section:

• Has 4.5" (11.43 cm) of mounting space for Internal Cup Holder, other accessories, or devices.
• Designed to house full-sized devices and accessories.
