Gamber-Johnson

Gamber Johnson TOUGHBOOK F1/N1 Rugged Handheld Powered Cradle Power Port 7160-0900-00

Gamber Johnson Cradle 7160-0900-00

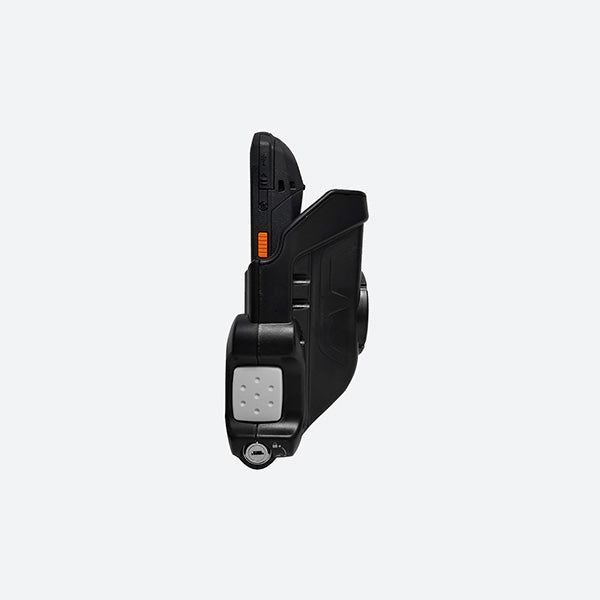

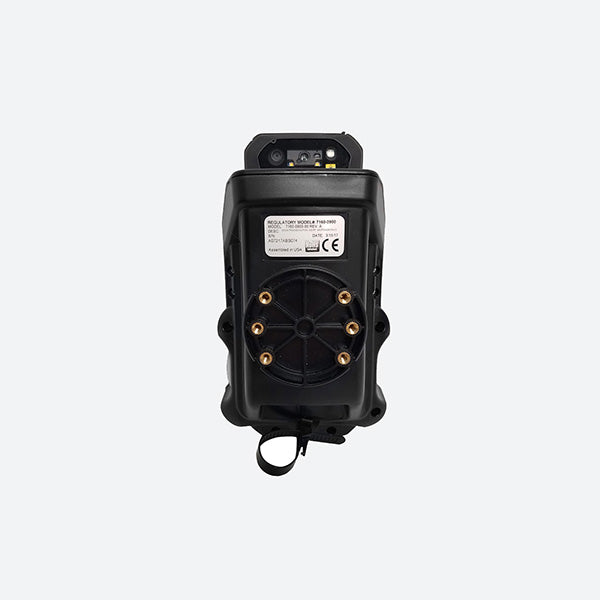

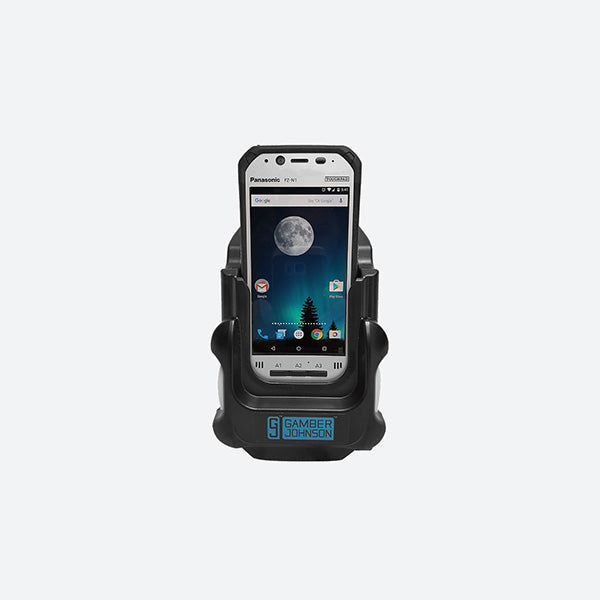

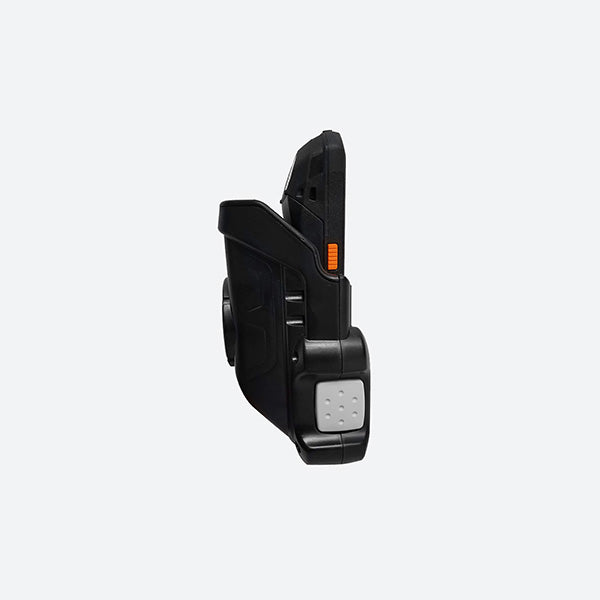

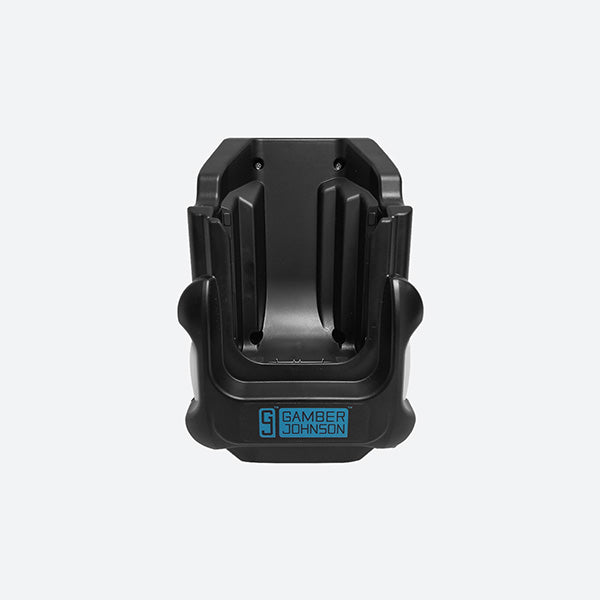

The Gamber Johnson 7160-0900-00 cradle for the Panasonic TOUGHBOOK F1/N1 Rugged Handheld Cradle is a great budget friendly solution to mount the handheld device in a vehicle, in a material handling environment, on a forklift or any other place needing quick and easy access. With one handed operation, the 7160-0900-00 features a latching mechanism to help secure the FZ-F1 or FZ-N1 in place. While the cradle does not include a power adapter (see specifications tab for suggested adapters) it can charge the FZ-N1 or F1 while docked. The cradle includes an AMPs hole mounting pattern and is compatible with many low profile or smaller mounting solutions such as the Zirkona line of equipment. The part can be purchased directly online, but if you need help assembling the 7160-0900-00 into a complete mounting solution or would like a custom quote, call us at 816-388-0035

7160-0900-00 Features

  • Compatible with the Panasonic FZ-F1/N1 Rugged handheld
  • Compatible with FZ-N1 extended battery pack
  • Amps mounting hole pattern
  • Alignment tabs prevent damage to docking connector when cradling the FZ-N1
  • Composite design for reduced weight and long-term durability

7160-0900-00 Specifications

Weight

0.7 lbs. / 0.3 kg

Height

7.5” / 190 mm

Width

4.5” / 115 mm

Depth

3.5” / 90 mm

Power Supply:

Not included - use one of the following external power supplies:

  • Lind 11-16V Auto Adapter with bare wire leads (Item No. 7300-0460)
  • Lind 11-16V Auto Adapter with cigarette adapter connector (Item No. 7300-0459)
  • Lind 20-60V Material handling isolated power adapter (Item No. 7300-0465)
  • Lind 12-32V Material handling isolated power adapter (Item No. 7300-0464)
  • Lind 72-110V Material handling isolated power adapter (Item No. 7300-0417)

Testing Specifications:

  • The cradle is designed and tested to rugged environmental standards. It's TOUGHBOOK Certified, and has passed MIL-STD- 810G shock/vibration; RoHS, C-Tick, E Mark, and CE testing.
$190.92 USD
$190.92 USD
Shipping calculated at checkout.
