Gamber Johnson TOUGHBOOK 33 Tablet Full Port Replication Dock w Dual RF 7160-0907-02

Gamber Johnson Dock 7160-0907-02

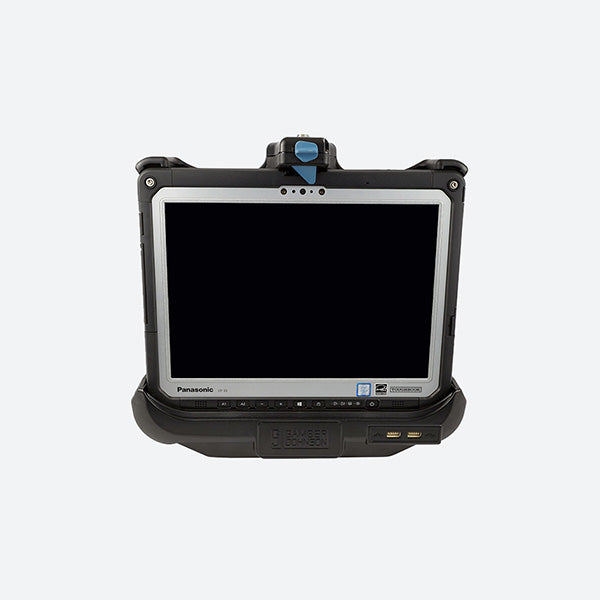

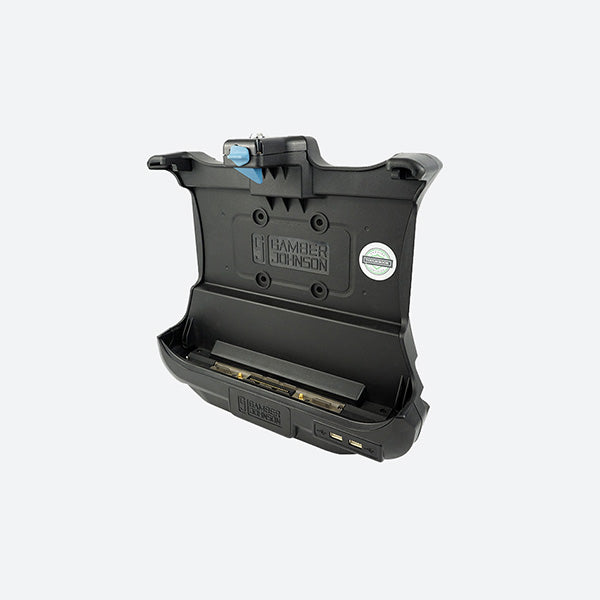

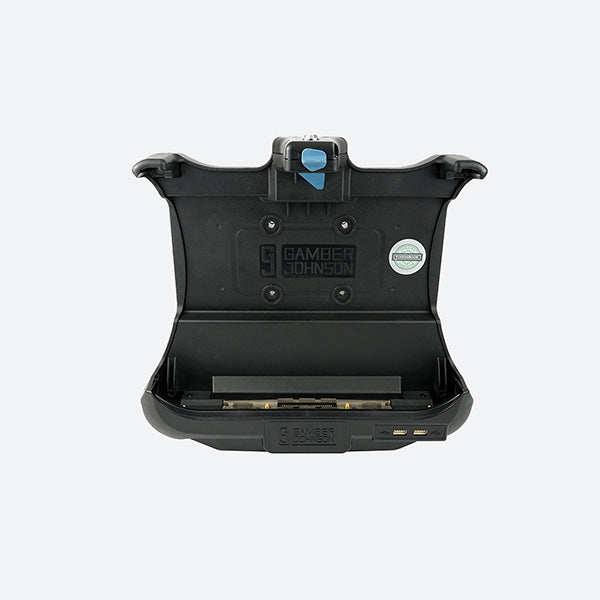

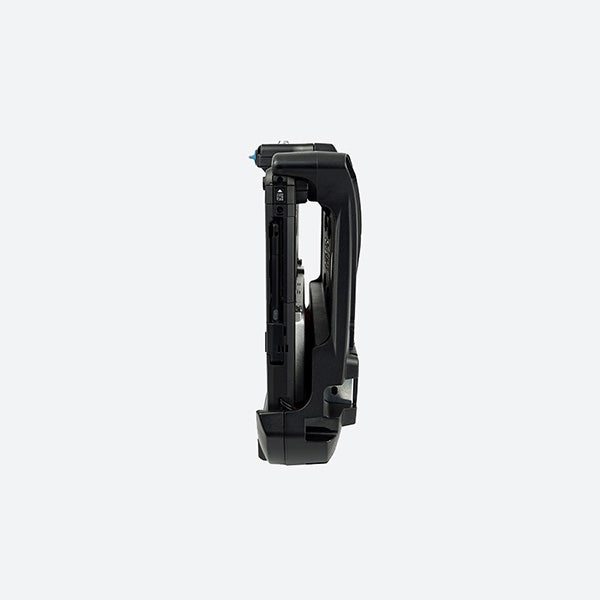

The Gamber Johnson 7160-0907-02 docking station is designed for Panasonic TOUGHBOOK CF-33 while in tablet mode (without optional keyboard attached.) The 7160-0907-02 boasts a robust full port replication and dual rf and is compatible with the CF-33 with a hand strap or optional long life batteries installed. The full port replication on the dock includes many ports such as ethernet, USB 2.0, USB 3.0 and serial RS232 as well as including HDMI and VGA ports. The 7160-0907-07 includes Dual RF and can accommodate external antennas to boost the CF-33 signals such as 4G LTE or GPS. Rugged or Die sales reps are experts in both vehicle mounting and docking as well as rugged computers, we would be happy to help build the 7160-0907-02 dock into a complete in-vehicle solution and can provide a quote for the mounting equipment as well as the CF-33 TOUGHBOOK itself! Send an email with your requirements or questions to sales@ruggedordie.com and we will respond within one business day!

7160-0907-02 Features

• VESA 75mm hole pattern
• Can be mounted in horizontal or vertical position
• Internal/protected circuit board protects against dirt and dust
• Floating docking connector for reliable docking connection
• Optional lock (keyed alike) for theft deterrence
• Optional cradle version (no ports)
• Accommodates either a tablet's hand strap or an additional battery pack
• Rounded edges to enhance personal safety
• Rugged construction for long-term durability
• Dual RF TNC

7160-0907-02 Specifications

Weight

4.15 lbs / 1.88 kg

Height

12.5 in / 31.75 cm

Width

13.25 / 33.65 cm

Depth

4.5 in / 11.43 cm

Port Replicators:

Antenna switch
HDMI
VGA
LAN (2)
USB 3.0 (2)
Power supply input
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin

Antenna Pass-through:

Dual RF

Power Supply:

Not Included - Can be used with LIND 120W automobile power supply (7300-0462) or LIND 120W bare wire leads power supply (7300-0461).
