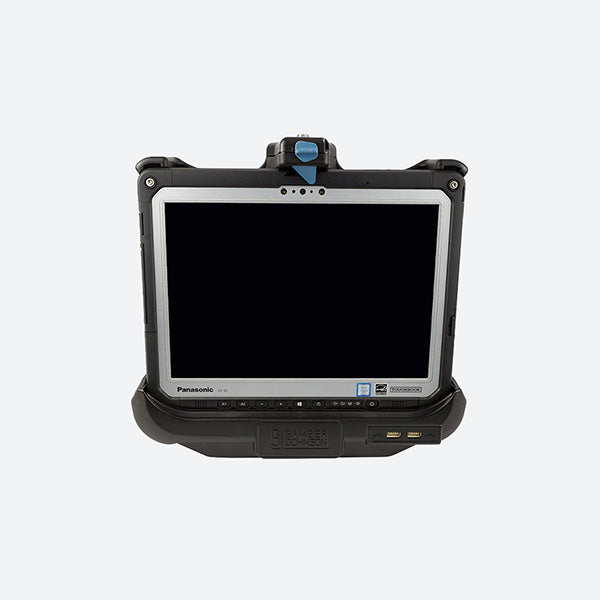

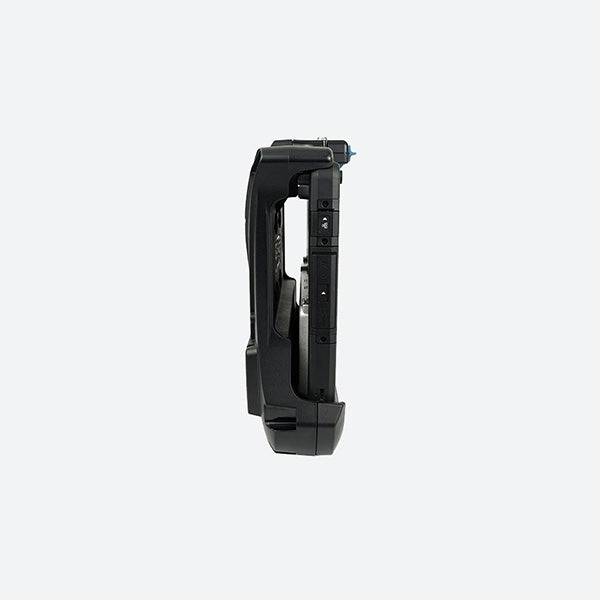

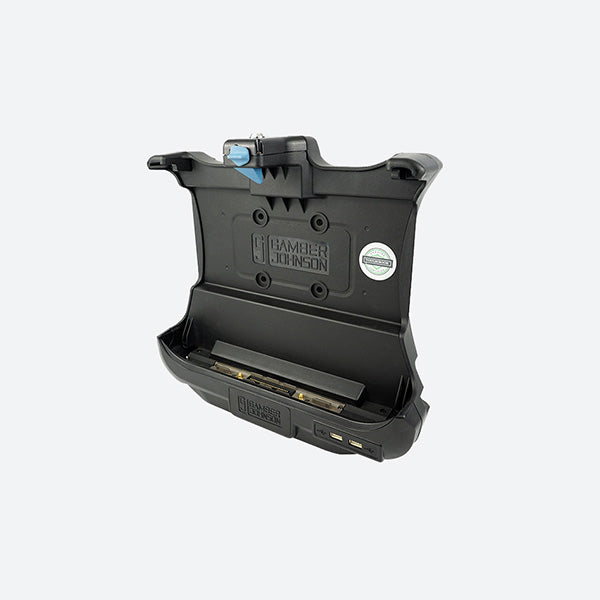

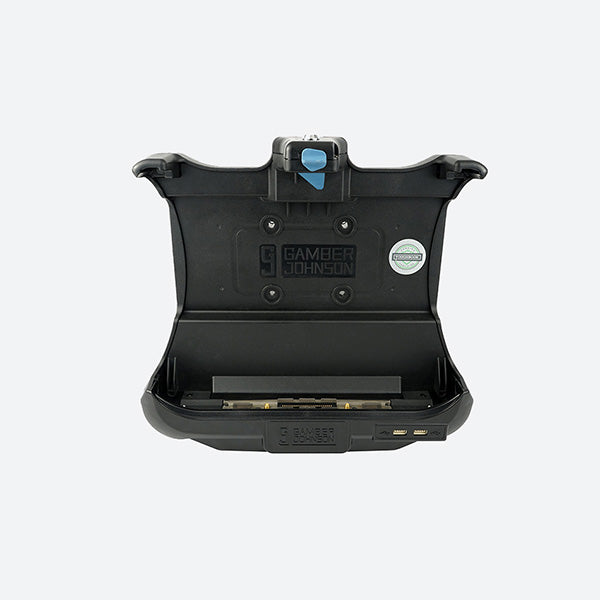

Gamber Johnson TOUGHBOOK 33 Tablet Lite Port Replication Dock w Dual RF 7160-0907-07

Gamber Johnson Dock 7160-0907-07

The Gamber Johnson 7160-0907-07 docking station is designed for Panasonic TOUGHBOOK CF-33 while in tablet mode (without optional keyboard attached.) The 7160-0907-07 features lite port replication and dual rf and is compatible with the CF-33 with a handstrap or optional long life batteries installed. The lite port replication on the dock includes many ports such as ethernet, USB 2.0, USB 3.0 and serial RS232 but does not include HDMI or VGA ports. With the optional dual rf antenna pass through, the 7160-0907-07 can accommodate external antennas to boost the CF-33 signals such as 4G LTE or WiFi. Rugged or Die sales reps are experts in both vehicle mounting and docking as well as rugged computers, we would be happy to help build the 7160-0907-07 dock into a complete in-vehicle solution and can provide a quote for the mounting equipment as well as the CF-33 TOUGHBOOK itself! Send an email with your requirements or questions to sales@ruggedordie.com and we will respond within one business day!

7160-0907-07 Features

• VESA 75mm hole pattern
• Can be mounted in horizontal or vertical position.
• Internal/protected circuit board protects against dirt and dust.
• Floating docking connector for reliable docking connection.
• Optional lock (keyed alike) for theft deterrence.
• Optional cradle version (no ports).
• Accommodates either a tablet's hand strap or an additional battery pack.
• Rounded edges to enhance personal safety.
• Rugged construction for long-term durability.
• Dual RF TNC

7160-0907-07 Specifications

Weight

4.15 lbs / 1.88 kg

Height

12.5” / 31.75 cm

Width

13.25” / 33.65 cm

Depth

4.5” / 11.43 cm

Port Replicators:

Antenna switch
LAN (2)
USB 3.0 (2)
Power supply input
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin

Antenna Pass-through:

Dual RF

Power Supply:

Not Included - Can be used with LIND 120W automobile power supply (7300-0462) or LIND 120W bare wire leads power supply (7300-0461).
