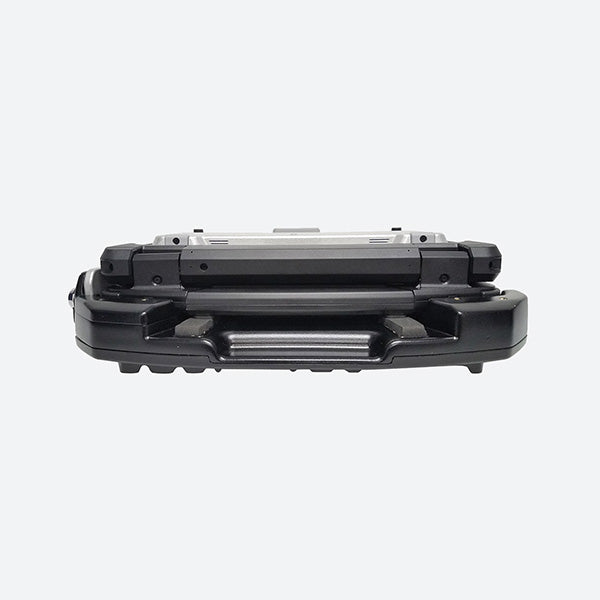

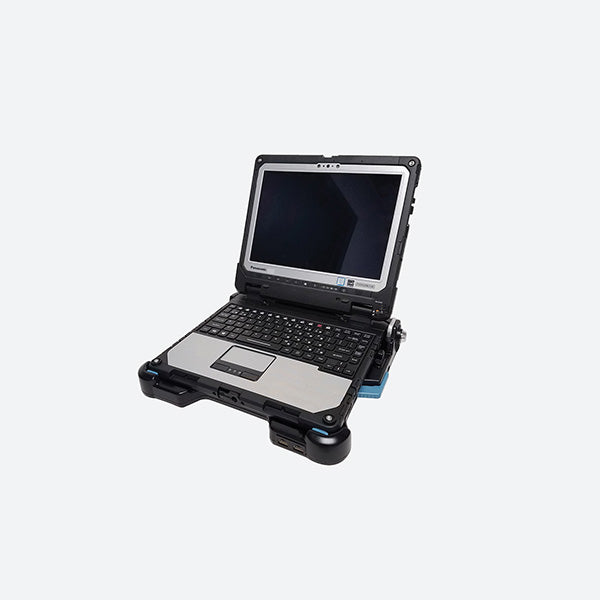

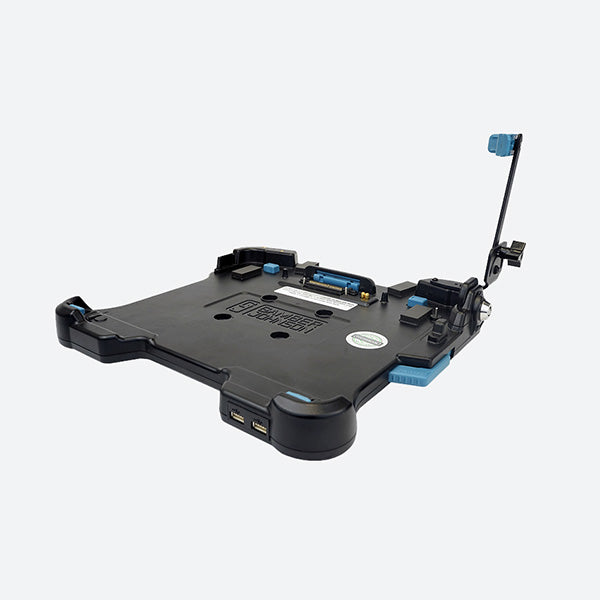

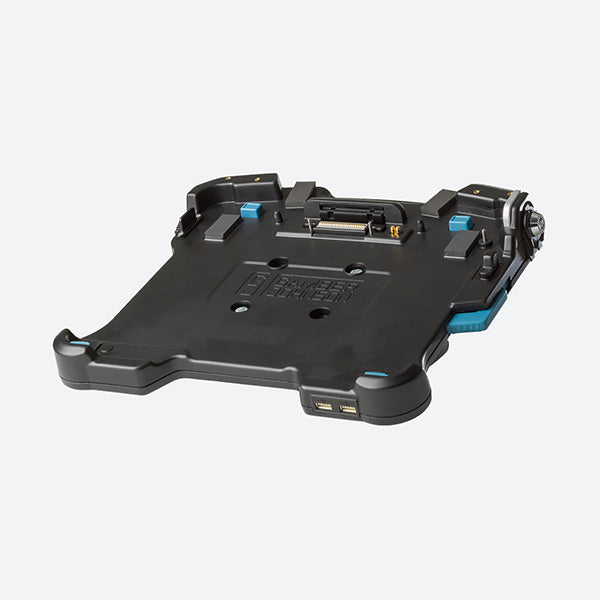

Gamber Johnson TOUGHBOOK 33 Laptop Full Port Replication Dock w Dual RF 7160-0909-02

Gamber Johnson Dock 7160-0909-02

The Gamber Johnson 7160-0909-02 docking station is a full port replication dock and is designed for the Panasonic TOUGHBOOK CF-33 while in laptop mode (with the optional keyboard attached.) Full port replicating CF-33 docks include numerous ports such as Ethernet, USB 2.0, USB 3.0 and Serial RS232 ports and -unlike lite port replicating docks- the 7160-0909-02 also includes HDMI or VGA ports. This dock comes with dual rf pass through and allows for external antennas to be attached to the dock to help increase the computer internal radio signals. Rugged or Die sales reps are experts in both vehicle mounting and docking as well as rugged computers, we would be happy to help build the 7160-0909-02 dock into a complete in-vehicle solution and can provide a quote for the mounting equipment as well as the CF-33 TOUGHBOOK itself! Send an email with your requirements or questions to sales@ruggedordie.com and we will respond within one business day!

7160-0909-02 Features

• Compatible only with the Panasonic TOUGHBOOK 33 that comes with the premium keyboard option
• Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin.
• Floating docking connector with alignment tabs - perfectly align the computer with the docking station for a reliable docking connection
• VESA 75mm hole pattern
• Internal/protected circuit board protects against dirt and dust
• Lock (keyed alike) for theft deterrence. When locked, neither the tablet nor the laptop can be removed from the docking station
• Rounded edges to enhance personal safety
• Rugged construction for long-term durability

7160-0909-02 Specifications

Weight

6.1 lbs. / 2.76 kg

Height

3.5 in / 8.9 cm

Width

14.1 in / 35.8 cm

Depth

13.5 in / 34.3 cm

Port Replicators:

Antenna switch
HDMI
VGA
LAN (2)
USB 3.0 (2)
Power supply input
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin

Antenna Pass-through:

Dual RF

Power Supply:

Not Included - Can be used with Lind 120W automobile power supply (Item No. 7300-0462) or Lind 120 W bare wire leads power supply (Item No. 7300-0461)
