Gamber Johnson TOUGHBOOK 33 Laptop Lite Port Replication Dock w No RF 7160-0909-06

Gamber Johnson Dock 7160-0909-06

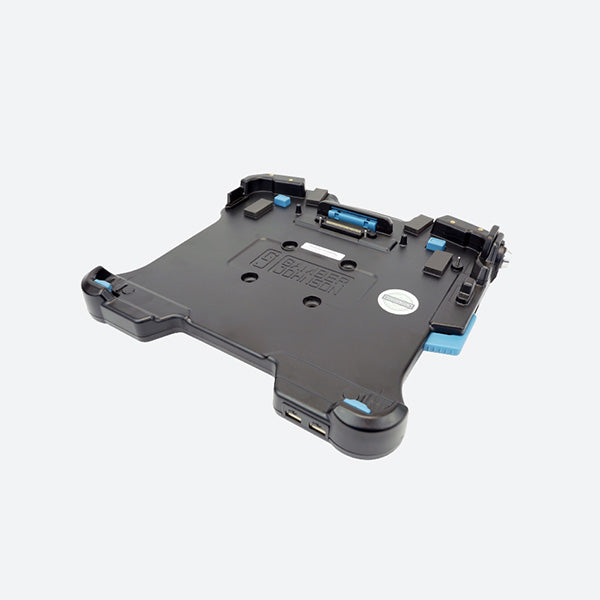

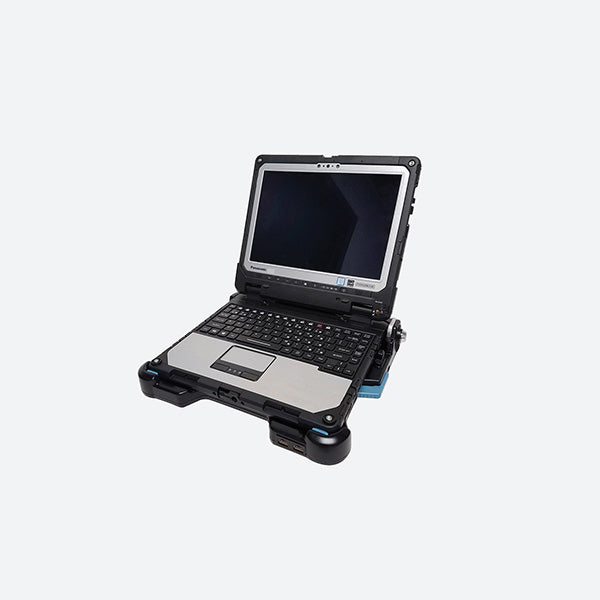

The Gamber Johnson 7160-0909-06 docking station is designed for the Panasonic TOUGHBOOK CF-33 while in laptop mode and comes with Lite Port replication. Lite port replicating CF-33 docks include numerous ports including Ethernet, USB 2.0, USB 3.0 and Serial RS232 ports but do not include HDMI or VGA ports. The 7160-0909-06 does not include any RF pass through and so cannot attach external antennas, if that feature is needed please consider the Gamber Johnson Dual Rf dock which is part number 7160-0909-07. Rugged or Die sales reps are experts in both vehicle mounting and docking as well as rugged computers, we would be happy to help build the 7160-0909-06 dock into a complete in-vehicle solution and can provide a quote for the mounting equipment as well as the CF-33 TOUGHBOOK itself! Send an email with your requirements or questions to sales@ruggedordie.com and we will respond within one business day!

7160-0909-06 Features

• Compatible only with the Panasonic TOUGHBOOK 33 that comes with the premium keyboard option
• Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
• Floating docking connector with alignment tabs - perfectly align the computer with the docking station for a reliable docking
• VESA 75 mm hole pattern
• Internal/protected circuit board protects against dirt and dust
• Lock (keyed alike) for theft deterrence. When locked, neither the tablet nor the laptop can be removed from the docking station
• Rounded edges to enhance personal safety
• Rugged construction for long-term durability

7160-0909-06 Specifications

Weight

6.7 lbs / 3.0 kg

Height

3.5 in / 8.9 cm

Width

14.1 in / 35.8 cm

Depth

13.5 in / 34.3 cm

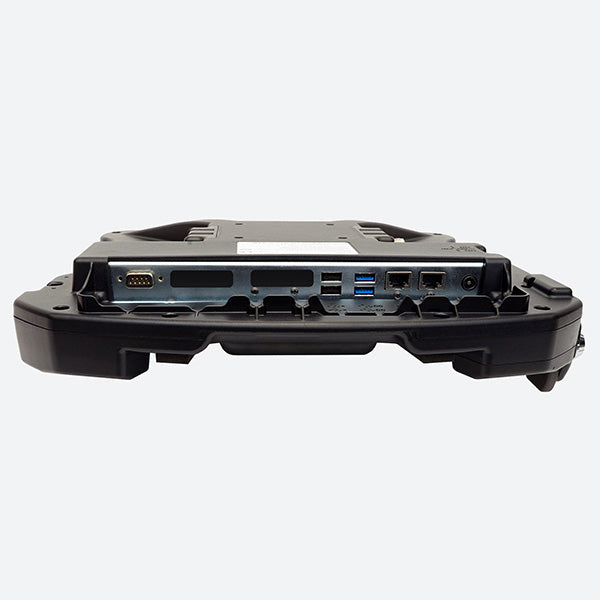

Port Replicators:

Antenna switch
LAN (2)
USB 3.0 (2)
Power supply input
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin

Antenna Pass-through:

No RF

Power Supply:

Not included - Can be used with Lind 120W automobile power supply (Item No. 7300-0462) or Lind 120 W bare wire leads power supply (Item No. 7300-0461)
