Gamber Johnson TOUGHBOOK CF-33 Lite Port Replication Laptop Dock w Dual RF 7160-0909-07

Gamber Johnson Dock 7160-0909-07

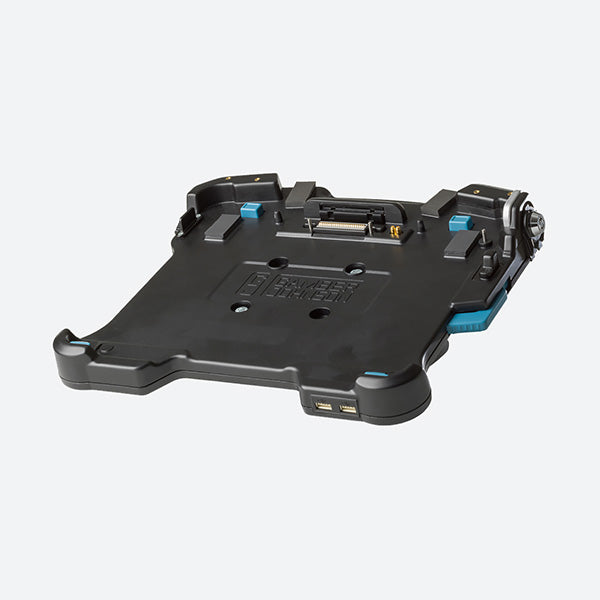

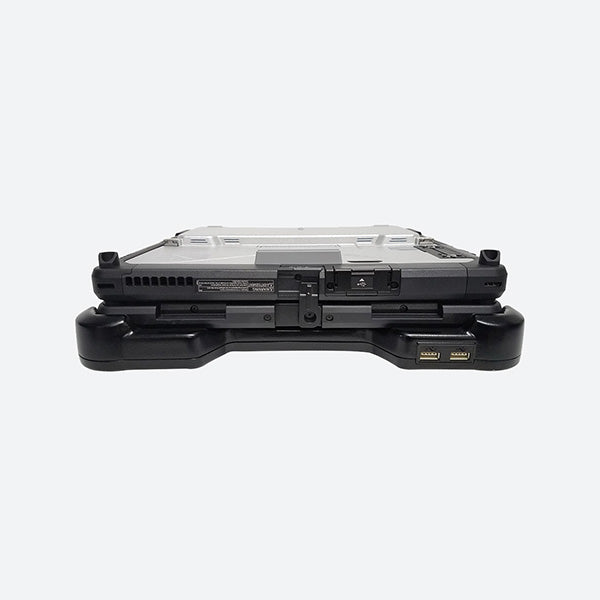

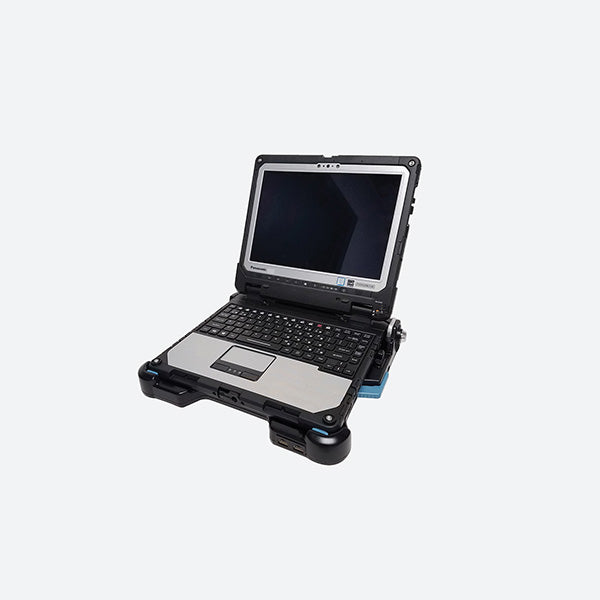

The Gamber Johnson 7160-0909-07 docking station is designed for the Panasonic TOUGHBOOK CF-33 while in laptop mode and comes with Lite Port replication and Dual RF pass through. Lite port replication CF-33 docks include numerous ports including Ethernet, USB 2.0, USB 3.0 and Serial RS232 ports. The 7160-0909-07 does not include HDMI or VGA ports. This dock comes with dual rf pass through and allows for antennas to be attached to the dock and boost the internal signals of the CF-33 such as optional 4G LTE or GPS. Rugged or Die sales reps are experts in both vehicle mounting and docking as well as rugged computers, we would be happy to help build the 7160-0909-07 dock into a complete in-vehicle solution and can provide a quote for the mounting equipment as well as the CF-33 TOUGHBOOK itself! Send an email with your requirements or questions to sales@ruggedordie.com and we will respond within one business day!

7160-0909-07 Features

• Compatible only with the Panasonic Toughbook 33 that comes with the premium keyboard option
• Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin.
• Floating docking connector with alignment tabs – perfectly align the computer with the docking station for a reliable docking connection
• VESA 75mm hole pattern
• Internal/protected circuit board protects against dirt and dust
• Lock (keyed alike) for theft deterrence. When locked, neither the tablet nor the laptop can be removed from the docking station
• Rounded edges to enhance personal safety
• Rugged construction for long-term durability
• Can be used with Lind 120W automobile power supply (Item No. 7300-0462) or Lind 120 W bare wire leads power supply (Item No. 7300-0461)
• Dual RF TNC

7160-0909-07 Specifications

Weight

6.1 lbs. / 2.76 kg

Height

3.5 in / 8.9 cm

Width

14.1 in / 35.8 cm

Depth

13.5 in / 34.3 cm

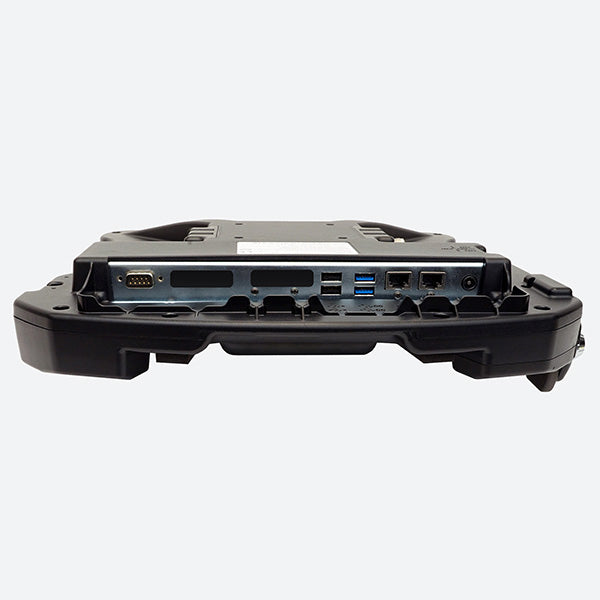

Port Replicators:

Antenna switch
LAN (2)
USB 3.0 (2)
Power supply input
USB 2.0 on front (2)
USB 2.0 (2)
Serial 9 pin

Antenna Pass-through:

Dual RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
LIND 11-16VDC Auto Power with cigarette lighter connector (7300-0462)
