Gamber Johnson Wide Body Console w Brother Pocket Jet Printer Mount 7160-0958

Gamber Johnson Console 7160-0958

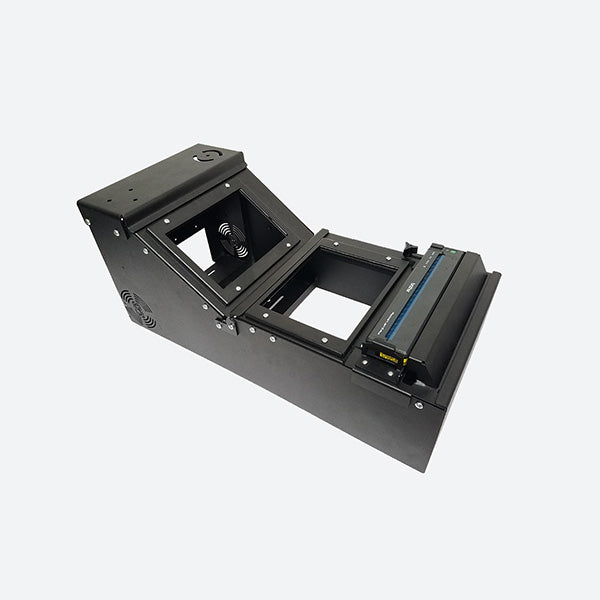

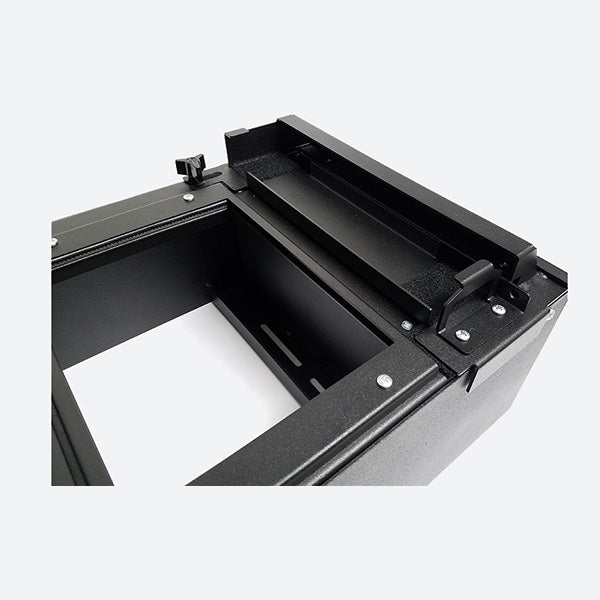

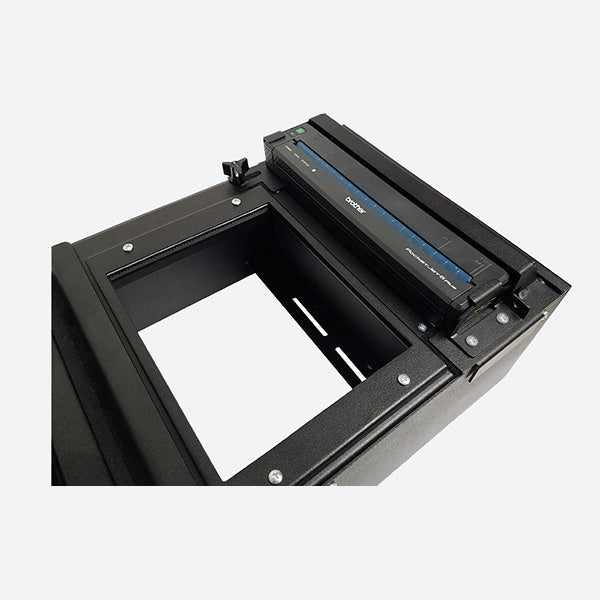

The Gamber Johnson 7160-0958 console kit is designed to be easily mounted on vehicles compatible with the MCS Top plate and leg kit system. With numerous mounting points for equipment including vertically angled and horizontal mounting space and pre-cut motion attachment mounts, the 7160-0958 is great as the base for a robust workstation. The 7160-0958 kit includes the equipment to secure a Brother PocketJet series printer to allow for thermal printing of citations or other reports while in the field. The Rugged or Die sales team member can help craft the ideal in-vehicle console solution, email your requirements to sales@ruggedordie.com and we will respond within 1 business day!

7160-0958 Features

• Low profile, universal console with sloped front mounting area

• Designed to work with Top Plate / Tunnel Plate and Leg Kits

• Two 12 Volt plug knockouts, located on the passenger side wall of console box and one knockout for switches , dual USB power ports, battery voltage display, data / mic jack or USB / AUX input module extension

• Threaded inserts for mounting mic clip (item no. 7120-0723) or  Magnetic Mic™  (item no. 17040) on both sides

• Side vented openings for air flow or mounting a speaker inside the console box

• Threaded inserts on both sides of console box for side armrest mounting (item no. 7110-1012 - passenger side armrest) and (item no. 7110-1013 - driver side armrest)

• Threaded inserts on passenger sides of console box for the passenger side document compartment (item no. 7160-0464) and driver side armrest (item no. 7110-1013)

• Threaded inserts on back of console box for mounting external cup holder (item no. 7160-0847) and MCS armrest (item no. 7160-0429) or printer armrest (item no. 7160-0430)

• Front plate of console (underneath dash area) has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes

• Box shipped assembled, except accessories

  • Computer can be center mounted in two locations:
    Off‐set towards the passenger on the “smiley face pattern”
  • On the 3‐bolt pattern closer to the driver for easy articulation access

• Fully welded construction for long term product life span

• 3 faceplates and 3 filler panels are included

7160-0958 Specifications

Weight

29.85 lbs. / 13.5 kg

Height

11.75" / 29.8 cm

Width

11.88" / 30.2 cm

Depth

24.75" / 62.9 cm

Vehicle Compatibility:
UNIVERSAL
