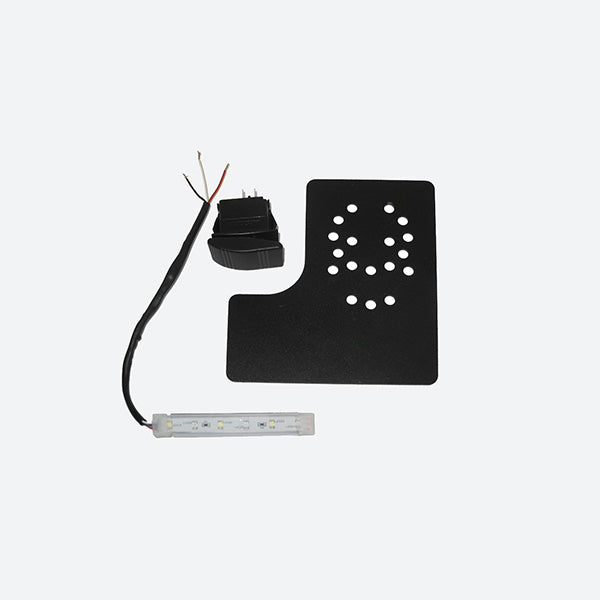

Gamber Johnson Console 4-inch LED Light Strip Assembly 7160-0962

Gamber Johnson7160-0962

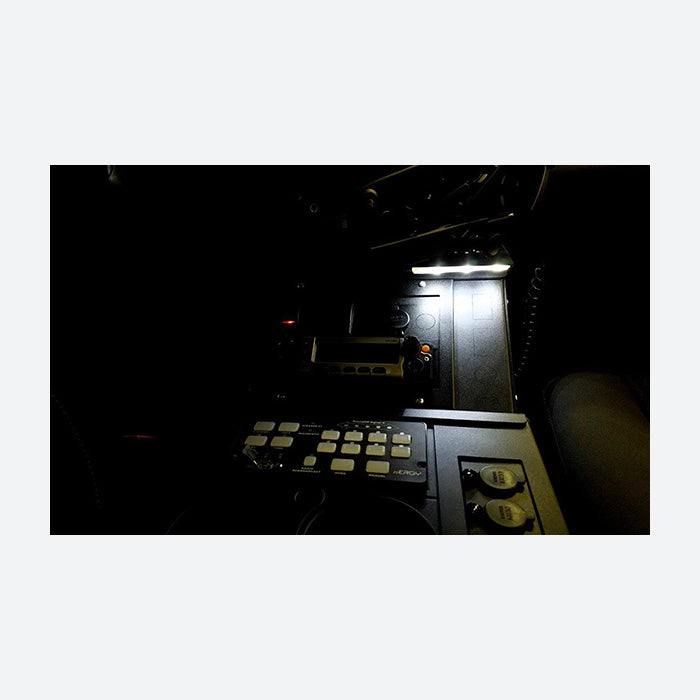

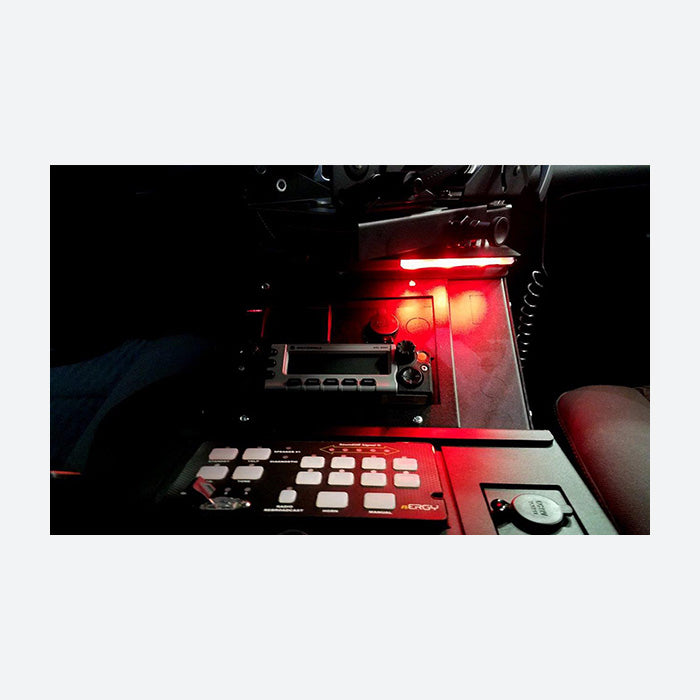

The Gamber Johnson 7160-0962 workstation light provides a low profile and unassuming illumination to a critical workspace. Able to be wired for either red or white light, the 7160-0962 can help illuminate the vehicle workstation without having to turn on all the vehicle cabin lights. The 7160-0962 includes a versatile mounting bracket which sandwiches between the console box and computer motion attachment. The Rugged or Die sales team member can help craft the ideal in-vehicle console solution, email your requirements to sales@ruggedordie.com and we will respond within 1 business day!

7160-0962 Features

• Mounting plate made from 16 gauge steel plate for long-term durability.
• Black powdercoat finish for maximum corrosion resistance.
• Plate designed to work on both sides of console; 3-bolt hole pattern or smiley face pattern.
• Plate mounts between console box top plate and the motion device.
• LED light mounting bracket secured onto the underside of plate when mounted in place with the 3M™ VHB Tape on bracket.
• Three leads, 9 in long, from LED for hooking up power through supplied switch:
  • Ground - black wire
  • White light - white wire
  • Red light - red wire
• Overall length of LED with wires: 13 in / 33 cm
• Supplied switch has two ON positions - ON/OFF/ON allowing both red and white lights to be wired up.
• Assembly comes with connectors for the switch and connectors for any wire extension need.

7160-0962 Specifications

Weight

0.75 lbs. / 0.34 kg

Height

0.38 in / 0.97 cm

Width

0.56 in / 1.42 cm

Depth

4.00 in / 0.16 cm

WARRANTY
LED and Switch has a 90 Day Warranty. Plate and hardware has a Limited Lifetime Warranty.
