Gamber Johnson Workstation 4-inch LED Light Strip Assembly 7160-0978

Gamber Johnson Light 7160-0978

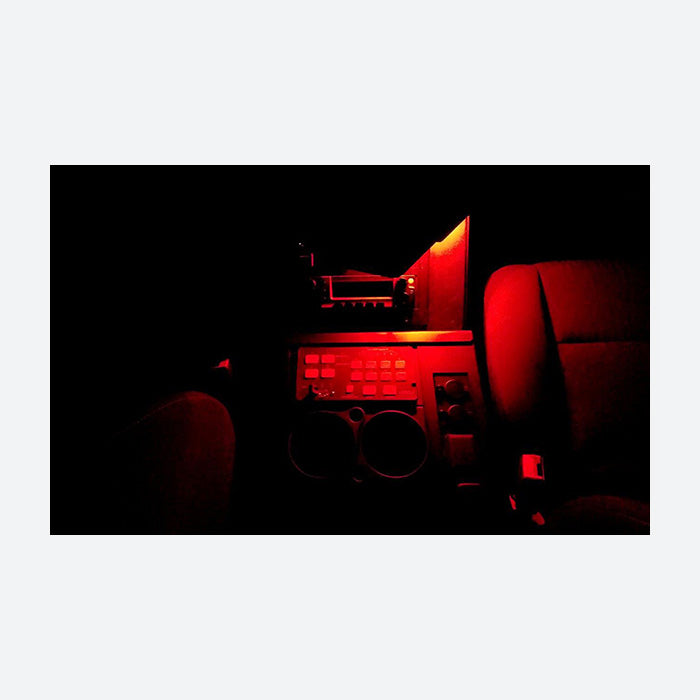

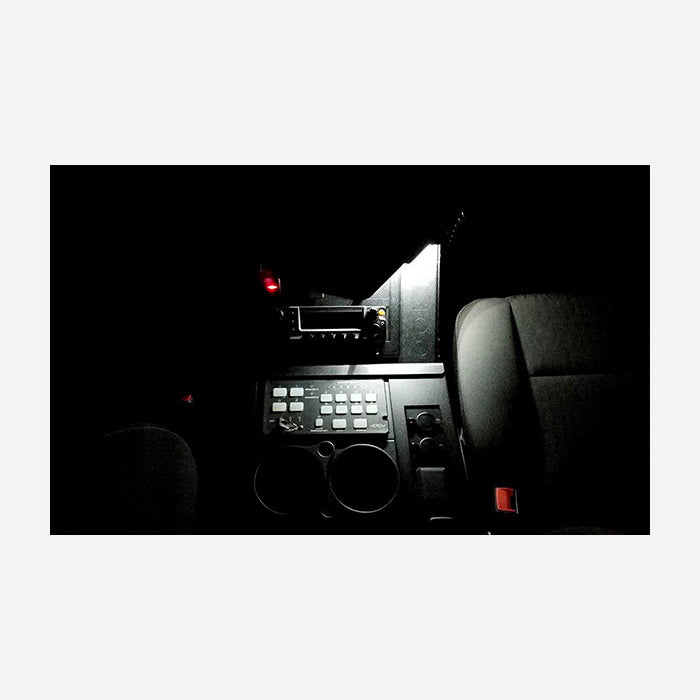

The Gamber Johnson 7160-0978 workstation light provides a low profile and unassuming illumination to a critical workspace. Able to be wired for either red or white light, the 7160-0978 can help illuminate the vehicle workstation without having to turn on all the vehicle cabin lights. New Gamber Johnson workstation boxes come with a built in mounting point for the LED light strip making for easy and seamless installation. The Rugged or Die sales team member can help craft the ideal in-vehicle console solution, email your requirements to sales@ruggedordie.com and we will respond within 1 business day!

7160-0978 Features

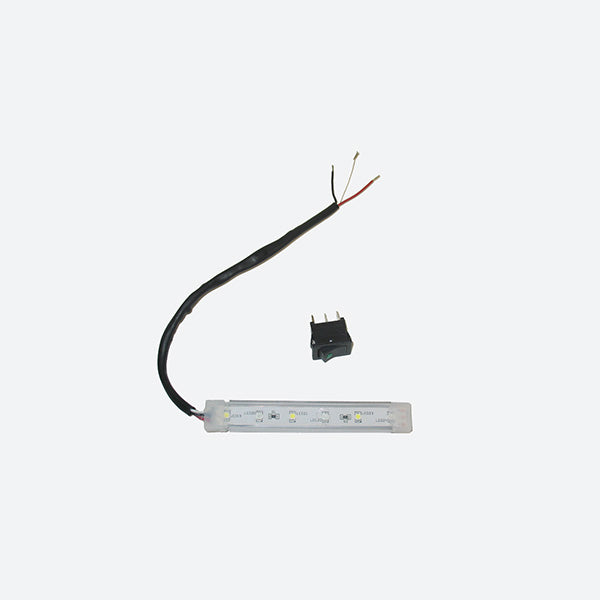

• LED light can be wired for red or white light.
• Comes with ON-OFF switch and has LED in it for ON indication if desired.
• Assembly comes with connectors for the switch and connectors for any wire extension need.
• Three leads, 9" (22.9 cm) long, from LED for hooking up power through supplied switch: -
• Ground - black wire
• White light - white wire
• Red Light - red wire
• New redesigned workstation boxes have mounting built in for the LED Light strip and cut outs in the mounting area for the switch.
• Old style workstation boxes DO NOT have mounting for LED light or switch - installer will have to mount in their own.

7160-0978 Specifications

Weight

0.25 lbs. / 0.11 kg

Height

0.38 in / 0.97 cm

Width

0.56 in / 1.42 cm

Depth

4.00 in / 10.16 cm
