Gamber-Johnson

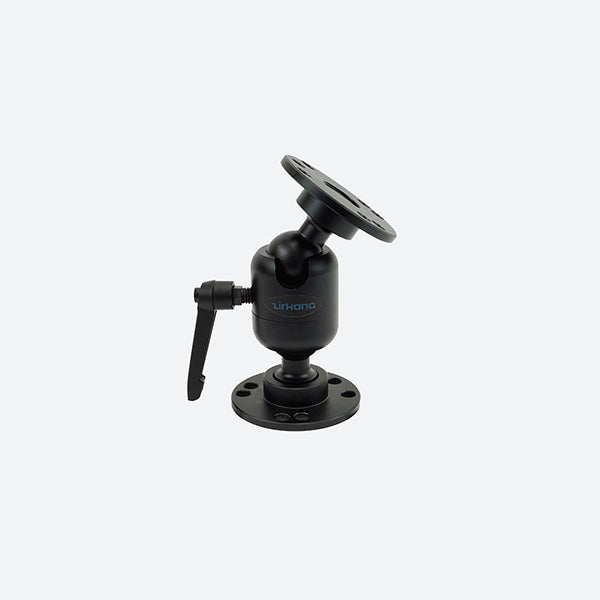

Gamber Johnson Zirkona Medium Joiner w Two Round Mounting Plates 7160-0993

Gamber Johnson Motion Attachment 7160-0993

With a maximum weight limit in a mobile environment, the 7160-0993 Zirkona Medium Joiner is ideal for providing a light weight motion attachment to a phone or small device mounting solution. The positional knuckle on the 7160-0993 can be hand tightened and loosened, allowing the mounted device to be tilted to the optimal angle. With two identical mounting plates, the motion attachment can be installed on or hold anything with an AMPs or NEC hole pattern. Crafted out of anodized aluminum, the 7160-0993 is a rugged and durable holder for in-vehicle or static mounting solutions. Let the Rugged or Die sales team craft a custom quote for your optimal equipment mount, email your needs to sales@ruggedordie.com and we will be happy to respond within 1 business day!

7160-0993 Features

  • Maximum weight limit: 6.0 lbs (2.8 kg) in a vibration/mobile environment or 33 lbs (15 kg) in a static/no vibration environment
  • Anodized aluminum with black finish
  • Extension tube for extra height off mounting surface
  • All axes range of motion in X axis (left/right), Y axis (front/back) and Z axis (up/down)
  • Quick adjust handle for easy adjustment to position device

Kit Includes:

  • Zirkona Medium Joiner (Item No. 7110-1235, formerly 7160-0287)
  • (2) Zirkona Round Plate Mounting Plate (Item No. 14144)

7160-0993 Specifications

Weight

0.63 lbs / 0.29 kg

Height

4.75 in / 12.06 cm

Width

2.25 in / 5.72 cm

Depth

2.25 in / 5.72 cm

Notes:

  • Gamber Johnson recommends use of LOCTITE 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510)
    • Loctite EA 9460
    • Loctite EA 9461
    • Loctite EA 9466
  • Mounting Plates Hole Patterns:
    • Round plate - AMPS (4 hole rectangle shaped) and NEC (3 hole triangle shaped)
